Brand: Belden
|
SKU:
BDEDN162U

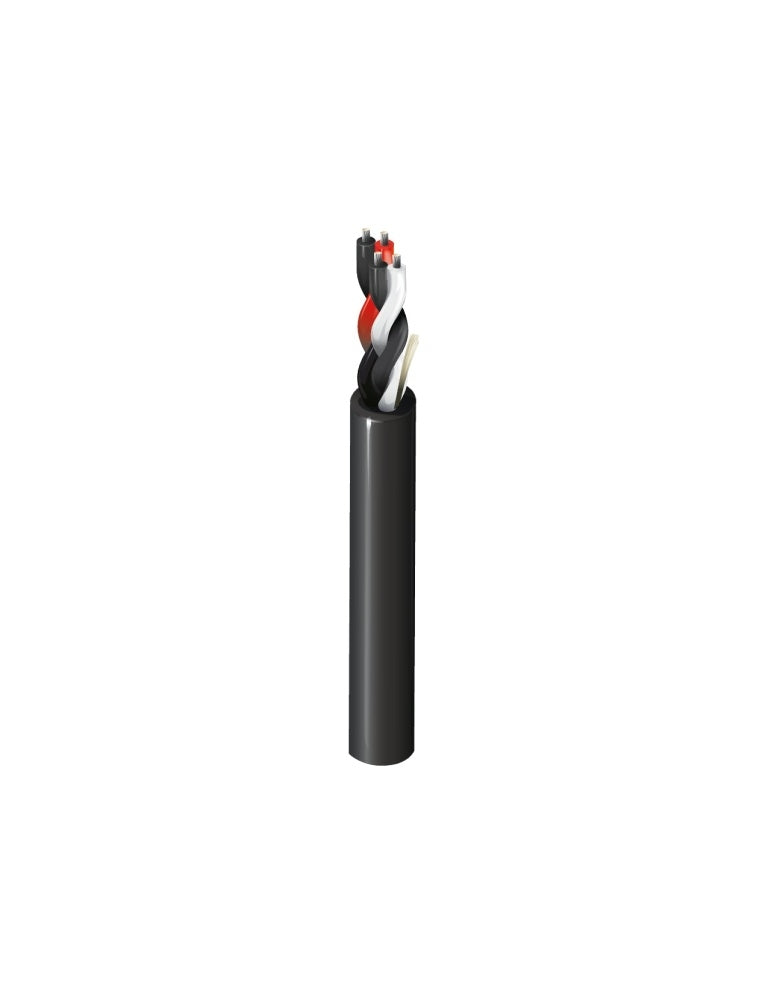

Belden DEDN162U | Electrical Wire, Tinned Copper (TC) Unshielded, CL4, CMG, 2 Conductors, 16 AWG
Regular price
$1,319.63
Unit price
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Belden DEDN162U | Electrical Wire, Tinned Copper (TC) Unshielded, C...
Regular price
$1,319.63
Unit price
Brand: Belden
|
SKU:
BDEDN162U
Regular price
$1,319.63
Unit price
Description
Description
Belden DEDN162U | Electrical Wire, Tinned Copper (TC), Unshielded, CL4, CMG, 2 Conductors, 16 AWG
Electricity Cable; 450 V; 16 AWG; Stranded; 2 Pair; Tinned Copper; Black PVC Jacket; 8.75 A; 0.017 in. Thickness Insulation; 0.04 in. Thickness Jacket; 7x24 Str; 4.55 Ohm/1000 ft. DC; 24.5 pF/ft.; 4.09 in.; 143 lb.
Specifications
Specifications
Belden - DEDN162U - Product Categories
- Electronic Wire and Cable
- Other Electronic Wire and Cable
Belden - DEDN162U - Applications
- Digital Electricity™, Fault Managed Power Systems (FMPS), remote powering, wet locations, in-conduit
Belden - DEDN162U - Specifications
| Manufacturer Name | Belden |
|---|---|
| Manufacturer Part Number | DEDN162U |
| Item Description | Electrical Wire, Tinned Copper (TC), Unshielded, CL4, CMG, 2 Conductors, 16 AWG |
| Amperage | 8.75 A |
| Bend Radius | 4.09 In. |
| Bulk Cable Weight | 70 Lb./1000 Ft. |
| Csa | Ft4 Vertical Flame Test - Cables In Cable Trays |
| Capacitance | 24.5 Pf/Ft. |
| Color Code | Black |
| Cond. Type | Stranded Conductor |
| Conductor Count | 2 Conductor |
| Conductor Gauge (Awg) | 16 Awg |
| Conductor Material | Tinned Copper (Tc) |
| Conductor Size | 16 Awg |
| Conductor Stranding | 7X24 Strand(S) Per Conductor |
| Conductor Type | Stranded |
| Insulation Color | Black &Amp Red, Black &Amp White |
| Insulation Material | (Pvc) Polyvinyl Chloride |
| Insulation Thickness | 0.017 In |
| Jacket Color | Black |
| Jacket Material | Pvc (Polyvinyl Chloride) |
| Jacket Thickness | 0.04 In. |
| Jacketing Material | Pvc-Polyvinyl Chloride |
| Length | 2000 Ft. |
| Material | Tinned Copper |
| Maximum Pull Tension | 143 Lb. |
| Maximum Recommended Current | 8.75 A |
| Minimum Bend Radius | 4.09 In In. |
| Nec Rating | Ul Listed Art 800 |
| Number Of Conductors | 2 Pair |
| Outside Diameter | 0.409 In. |
| Plenum | General Purpose |
| Product Type | Indoor/Outdoor Digital Electricity Cable |
| Pulling Force | 143 Lb. |
| Resistance | 4.55 Ohm/1000 Ft. Dc |
| Rohs Compliant | Yes |
| Screen/Shield | No |
| Shield Type | Unshielded |
| Special Rating | Cl4, Cmg |
| Strands | 7X24 Str |
| Temperature Rating | 105 Degrees Celsius |
| Voltage | 450 V |
| Environmental Suitability | Indoor, Outdoor, Sunlight Resistance |
