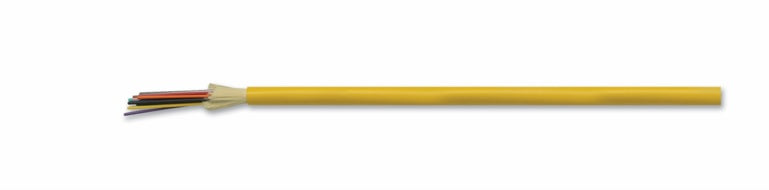

Berk-Tek PDP024AB0707 | Fiber Optic Cable, G.657.A1 Fiber, Tight Buffered Cable, 24 Fiber, Plenum Fire Rating
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Berk-Tek PDP024AB0707 | Fiber Optic Cable, G.657.A1 Fiber, Tight Bu...
Description
Description
Plenum-rated indoor/outdoor tight-buffer cables are designed specifically for LAN/WAN campus and building backbone cabling infrastructure. The thermoplastic jacketed cables are suitable for indoor/outdoor installations in conduit below the frost line. This fiber optic cable is designed for installation in plenum, riser, horizontal environments and interbuilding backbone structures. This design incorporates tight-buffered optical fibers within a dry water-blocked cable core and is recommended for conduit systems likely to fill with water. Suitable for operation across wide temperature variations typically addressed by outside plant cables.
Specifications
Specifications
Berk-Tek - PDP024AB0707 - Product Categories
- Network Cabling Infrastructure
- Fiber Optic Cabling Infrastructure
- Fiber Optic Cable
- Indoor Fiber Cable
Berk-Tek - PDP024AB0707 - Specifications
| Manufacturer Name | Berk-Tek |
|---|---|
| Manufacturer Part Number | PDP024AB0707 |
| Item Description | Fiber Optic Cable, G.657.A1 Fiber, Tight Buffered Cable, 24 Fiber, Plenum Fire Rating |
| Application | Indoor/Outdoor |
| Armored | No |
| Bend Radius | 4.3 in. |
| CABLE TYPE | TIGHT BUFFERED |
| Cable Diameter | 0.288 in. |
| Cable Type | Tight Buffered |
| Construction | Tight Buffer, 900 um |
| FIRE RATING | PLENUM |
| Fiber Count | 24 |
| Fiber Type | OS2, G.652.D, G.657.A1 |
| Fire Rating | Plenum |
| Jacket Color | Yellow |
| Jacket Flame Rating | Plenum |
| Jacket Material | Polymer |
| Operating Temperature - Maximum | 75 C |
| Operating Temperature - Minimum | -40 C |
| Outside Diameter | 7.7 mm |
| Product Type | Premises Distribution Fiber Optic Cable |
| Speed | 900 um |
| Transmission Mode | Single |
| Type | Distribution Cable |
| Wavelength | 1310/1550 nm |
