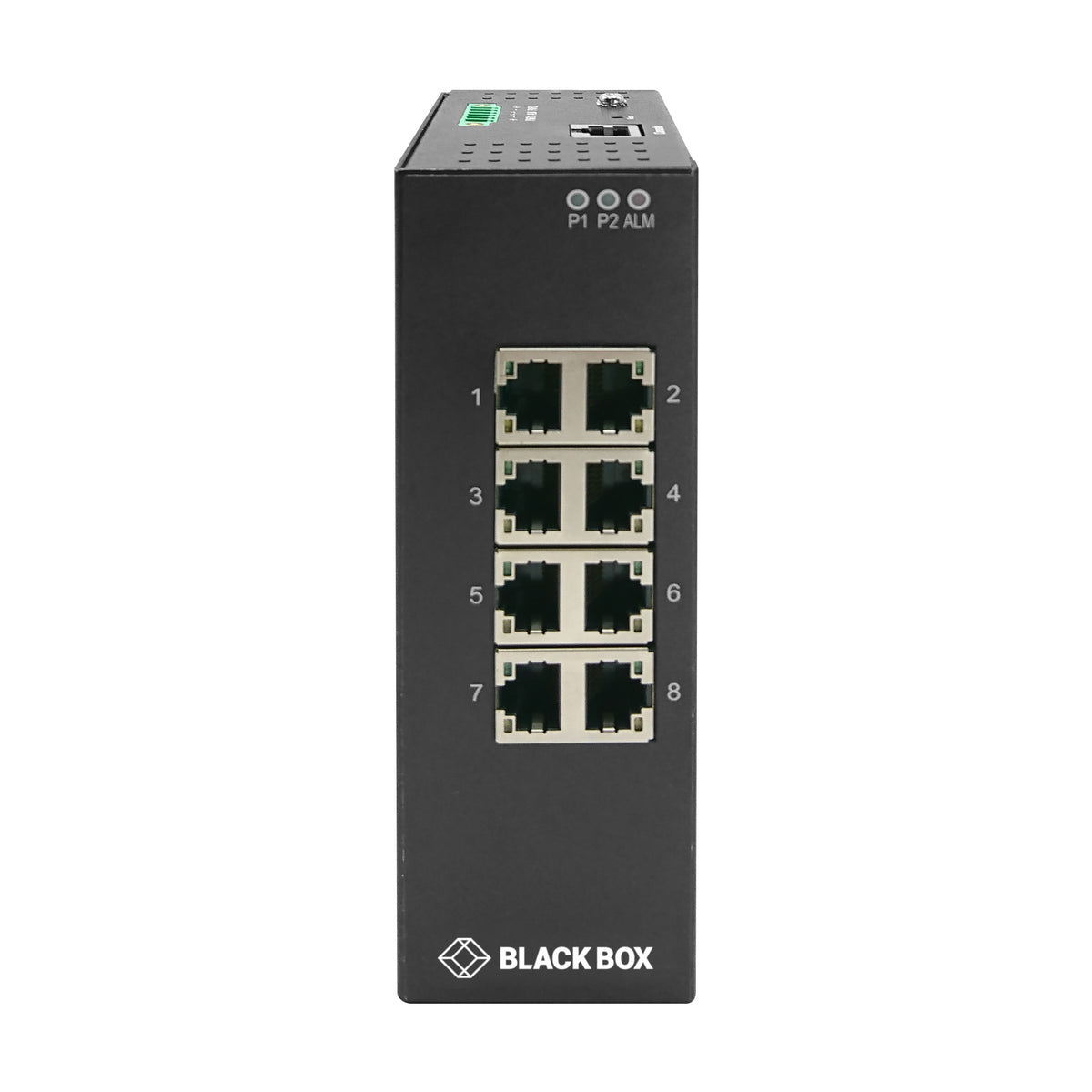

Black Box Network Services LIG1080A | Managed Gigabit Switch - (8) RJ45

Black Box Network Services - LIG1080A - Features

• Provides eight 10/100/1000-Mbps RJ-45 ports that are autosensing for speed and duplex
• Managed switch supports LACP, Spanning Tree, and ring fail-over for redundancy and resiliency
• Rated for extreme temperatures of -40 to +75 C.
• Dual DC power input for redundancy.
• IP30-rated housing is also rated for shock and viation protection.
• Manage through a Web interface, SNMP or command-line interface (CLI).
• Delivers features normally found in more expensive switches.
• DIN rail or wall mount
• Provides eight 10/100/1000-Mbps RJ-45 ports that are autosensing for speed and duplex.
• Managed switch supports LACP, Spanning Tree, and ring fail-over for redundancy and resiliency.
• Rated for extreme temperatures of -40 to +75° C.
• Dual DC power inputs for redundancy.
• IP30-rated housing is also rated for shock and vibration protection.
• Manage through a Web interface, SNMP or command-line interface (CLI).
• Delivers features normally found in more expensive switches.
• DIN rail or wall mount.
• Extreme applications.
• Encased in an IP30-rated metal case, this switch withstands extreme temperatures from -40°C to +75°C (-40° F to +167° F). Use it for: Security and surveillance, particularly to backhaul IP security camera data.
• Military applications, especially in ships and other vehicles.
• Factory automation for controlling machinery, PLCs, motor drives, sensors, counters, inspection cameras, and packaging equipment.
• Oil and gas fields or remote equipment monitoring and control.
• Building automation for controlling HVAC and lighting systems.
• Maximize uptime.
• Advanced management features help minimize network downtime by enabling you to remotely diagnose and manage network problems. You'll also eliminate the need to send IT technicians on-site - thus lowering costs.
• The switch is fully manageable through SNMP, a Web browser, Telnet, or a console port. Control the bandwidth on each port individually and set up Quality of Service (QoS) priority queuing for critical applications.
• The switch supports port-based VLAN and IEEE 802.1Q VLAN tagging, MAC-based trunking, IP-multicast IGMP snooping, and rapid spanning tree for redundancy. Plus, it has 802.1x port-based authentication for security.
• Fast failovers.
• The switch gives you maximum network flexibility: Spanning Tree Protocol (STP/RSTP), Link Aggregation Control Protocol, and a ring protocol. It offers a 20 millisecond or less failover.
• Installation options.
• The switch features redundant power inputs and includes DIN-rail and panel-mount kits. The power supplies (MDR-40-12, MDR-40-24, MDR-40-48, and SDR-240-48) are sold separately.
