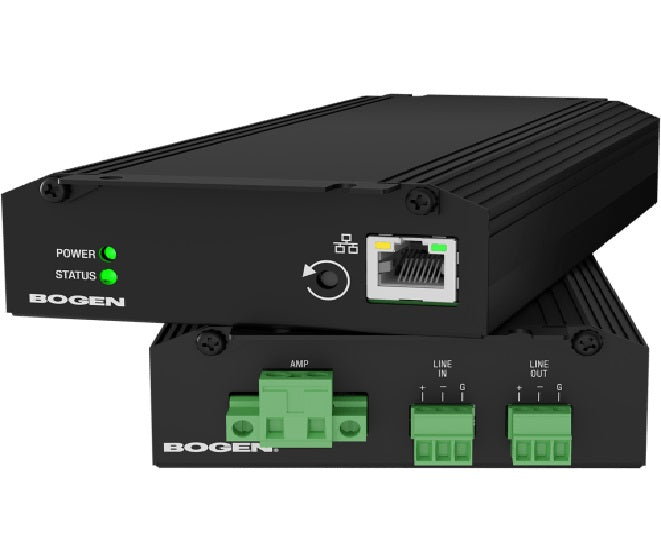

Bogen NQ-GA40P3 | Nyquist 40W PoE++ Plenum-rated Integrated Amplifier Module
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Bogen NQ-GA40P3 | Nyquist 40W PoE++ Plenum-rated Integrated Amplifi...
Description
Description
The NQ-GA40P3 is a 40W plenum-rated, Class D, integrated amplifier module designed to operate over a 10/100 Ethernet network. This new low-impedance amplifier module fills out the Nyquist GA amplifier module product line, extending the power range to 40W, thus allowing customers to increase single-zone coverage for paging and music distribution as part of a Nyquist installation, or as a SIP and/or multicast endpoint on 3rd party systems when in Standalone Operation mode. A PoE++ capable network switch provides power for the unit, or alternatively, a PoE power injector, such as Bogen’s PI5660W PoEBT. When coupled with the NQ-GAXMR1 transformer, the NQ-GA40P3 will drive high-impedance 25V or 70V speaker networks, such as can be done with Bogen’s CSD2X2-V2 drop-in ceiling tile speaker which contains a convenient mounting plate for the amplifier and transformer.
Bogen - NQ-GA40P3 - Features
- 40W Audio Power: An increase in power means higher audio output to drive larger Public Address speakers or horns,or drive more speakers.
- Can Support 25V/70V distributed sound systems in conjunction with the NQ-GAXMR1 transformer. Extended reach of the paging zone for greater area coverage with multiple speakers.
- Plenum-rating allows the amplifier module to be installed just about anywhere!
- Power-over-Ethernet Plus (PoE++) 802.3bt compliant Convenient installation using PoE++ switches (optional power injector available for use in non-PoE++ switch environments)
- Balanced line input and output Offers a balanced line output to drive auxiliary power amplifiers, as well as a balanced line input for auxiliary line-level analog audio input to either direct drive the amplifier module or serve as a audio source for audio distribution on Nyquist systems.
Specifications
Specifications
Bogen - NQ-GA40P3 - Specifications
| Power Output | 40W @ 8 Ohms |
|---|---|
| S/N Ratio (20k BW) | 80 db |
| Power Output Bandwidth | 20 H2 - 20 kHz |
| THD+N @ 1 kHz Rated Power | <.05% THD+N |
| Rated Load Impedance | 8 ohms |
| Frequency Response @ 1 Watt | 20 Hz - 20 kHz +/-0.25 dB |
| Audio Amplifier Class of Operation | D |
| Pot+ (Power over Ethernet) | Class 3 device (RJ45) |
| Power Amplifier Output Connector | 2 Pin 7.5mm PhoenixPlug/Header |
| Audio Line Level Output Connector | 3-pin 3.5mm Phoenix Plug/Header |
| Audio Line Level Input Connector | 3-pin 3.5mm Phoenix Plug/Header |
| Audio Line Level Input Sensitivity | Continuously variable from 2V to 0.1V RMS |
| Audio Line Level Output | 2.2V RMS @ 10k Ohms (+27dB) Electronically Balanced |
| Indicators | Power & Status LEDs (front) / Network LEDs (front) |
| Operating Temperature Range | -15 C to +40 C |
| Protection | ESD, RF, DC, Low Frequency. Thermal, Low Impedance, Short Circuit, Clip Limiting |
| Networking | Cat5 or better 10/100 network connectivity |
| Certifications | Carries UL602638 Safety Mark |
| Product Weight | 1.6 lbs |
| Physical Dimensions | 9” L x 3.69” W x 1.30” H |
