Burndy YSR312CFXLTCKITC | 10021666 | Hyreducer, Compression Reducer...
Description
Description

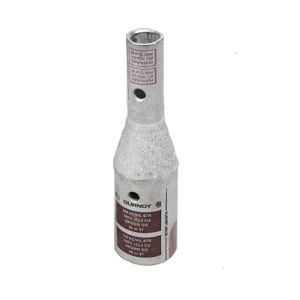

YSR-TC reducing splice kits provide for splicing two different cable sizes with inspection holes. The larger conductor is inserted first and butts against the center of the connector where the smaller barrel begins. Constructed from seamless, high conductivity electrolytic copper tubing for maximum conductivity, and tin plated to resist corrosion. The YSR-TC family also features the BURNDY color code system.
Transition-Reducer Sleeves: Type - Compression Reducer Sleeve; Material - Copper; Side A - CU/AL - 350 kcmil; Side B - CU/AL - 2 AWG; Length - 3.37 in. L; Die Index - 18 (Barrel A), 10 (Barrel B); Application - Flex Cable; Additional Information - Strip Length: 1.41 in., Finish: Electro Plated Tin; Manufacturer Series - Hyreducer YSR-TC, Additional Info: Strip Length: 1.41 in., Finish: Electro Plated Tin
Burndy - YSR312CFXLTCKITC | 10021666 - Features
- YSR-TC reducing splice kits provide for splicing two different cable sizes with inspection holes
- The larger conductor is inserted first and butts against the center of the connector where the smaller barrel begins
- Constructed from seamless, high conductivity electrolytic copper tubing for maximum conductivity and tin plated to resist corrosion
- The YSR-TC family also features the Burndy color code system
Specifications
Specifications
Burndy - YSR312CFXLTCKITC | 10021666 - Product Categories
- Shop by Manufacturer/Burndy
- Hardware and Supplies
- Electrical Supplies
- Grounding and Bonding
- Wiring Connectors
- Connectors and Lugs, Compression
- Overhead Connectors
Burndy - YSR312CFXLTCKITC | 10021666 - Specifications
| UNSPSC Code | 39121400 |
|---|---|
| Country of Origin | United States - Subject to change |
| Type | Compression Reducer Sleeve |
| Material | Copper |
| Side A - CU/?AL | 350 kcmil |
| Side B - CU/?AL | 2 AWG |
| Length | 3.37 in. |
| Die Index | 18 (Barrel A), 10 (Barrel B) |
| Application | Flex Cable |
