Camden Door Controls CI-3502 | Mortise Cylinder Industrial Key Switch
Regular price
$135.96
Unit price
Brand: Camden Door Controls
|
SKU:
CS464639
Regular price
$135.96
Unit price
Description
Description

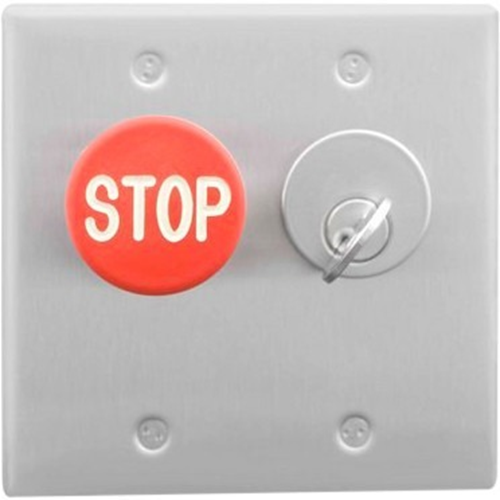

The Camden CI-3502 mortise industrial key switch is designed to control grilles or gates where high security key access is required. The switch is compatible with all 1" to 1 1/4" mortise and IC core cylinders. Includes double gang SS faceplate, (2) SPST N/O switches, red emergency stop button surface ABS box and weather resistant gasket.
Key Features
- Double Action switch for grille, gate and industrial applications
- For use with any mortise or IC core cylinder including Medeco, Best, Abloy, and Schlage
- Includes emergency stop button, 2 x SPST N/O switches and surface mount box
Specifications
Specifications
Specifications
| UPC | 670454156327 |
|---|---|
| Also known as | CI3502, CM-CI3502 |
| Contact Type | 2 x N/O SPST. 1 x Emergency STOP Pushbutton |
| Contact Rating | 6A@125V AC |
| Enclosure | NEMA 1 Surface Mount |
| Endurance | 100,000 cycles |
| Dimensions | 5-1/8" x 5-1/8" x 2" (130mm x 130mm x 51mm) |
