Camden Door Controls CM-1100-7212 | Flush Mount Key Switch, Aluminum Single Gang Faceplate, SPST Momentary, N/O, Red & Green 12V LEDs, Brushed Aluminum
Camden Door Controls CM-1100-7212 | Flush Mount Key Switch, Aluminum Single Gang Faceplate, SPST Momentary, N/O, Red & Green 12V LEDs, Brushed Aluminum

Camden Door Controls CM-1100-7212 | Flush Mount Key Switch, Aluminum Single Gang Faceplate, SPST Momentary, N/O, Red & Green 12V LEDs, Brushed Aluminum

Part Number: 765555
0 Review(s)
Write a Review
Availability:
$90.28
Retail Price:$99.31
Your Savings:$9.03(9%)
Have a question or need a quote?

  • Low prices.

    Price match guarantee

  • In-House Experts.

    We know our products

  • Easy Returns.

    Quick & Hassle Free

  • Superior Selection.

    Extensive product catalog

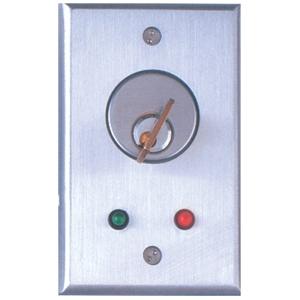

The Camden 11007212 is a flush mount key switch with a cast aluminum single gang faceplate. The unit features one SPST momentary switch and a normally-open contact. The key switch is equipped with red & green 12V LEDs mounted on a faceplate. The 11007212 offers a vandal resistant 1/4" thick aluminum faceplate with one-piece faceplate and switch bracket design. 1 or 2 contact switches can be mounted.


https://www.alldataresource.com/assets/images_commscope/features.jpg

Key Features

  • Single gang width
  • SPST momentary switch
  • Normally-open contact
  • Red & green 12V LED
  • Brushed aluminum finish
  • Indoor or outdoor flush applications
  • Accepts standard mortise cylinders (1" - 1 1/4")
  • Mullion style - only 1 3/4" wide
  • Heavy duty 1/4" thick aluminum plate
  • 1 piece die cast construction
  • Locators prevent cylinder from spinning
  • Cylinder sits flush to faceplate
  • Tamper proof screws and driver provided
  • No set screw required
  • 1 or 2 switches may be installed
  • Heat shrink protective sleeve over contacts
  • Optional 1-60 second pneumatic time delay



https://www.alldataresource.com/assets/images_commscope/specs.jpg

Specifications

UPC670454120748
Also known asCM11007212, CM-11007212
Voltage12/24V AC/DC
Contact Rating6 Amps
Switch Life100,000 cycles
Temp Range32F - 85F (0C to +85C)
FinishBrushed Aluminum
Dimensions4-1/2" x 2-3/4" x 1-1/2" (114mm x 70mm x 42mm)



https://www.alldataresource.com/assets/images_commscope/pdf.jpg

Documents and Downloads

Camden Door Controls CM-1100-7212 Data SheetClick to View
