Brand: Camden Door Controls
|
SKU:
CS255373

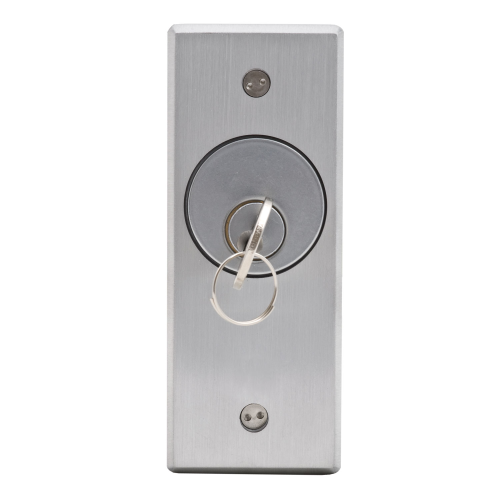

Camden Door Controls CM-2060 | Flush Mount Key Switch, Narrow, 2 SPDT Maintained, Brushed Aluminum
Regular price
$135.96
Unit price
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Camden Door Controls CM-2060 | Flush Mount Key Switch, Narrow, 2 SP...
Regular price
$135.96
Unit price
Brand: Camden Door Controls
|
SKU:
CS255373
Regular price
$135.96
Unit price
Description
Description
The Camden CM-2060 is flush mount vandal resistant key switch that features a 1/4" thick cast aluminum narrow faceplate, with one-piece faceplate and switch bracket design. The unit is equipped with two SPDT maintained switches and a brushed aluminum finish. Camden key switches offer the widest range of stock switch configurations in the industry. They accept virtually any 1" - 1-1/4" mortise cylinder and cam (sold separately).
Key Features
- Brushed aluminum finish
- Narrow width
- SPDT maintained switches
- Normally-open & normally-closed contact
- Indoor or outdoor flush applications
- Accepts standard mortise cylinders (1" - 1 1/4")
- Heavy duty 1/4" thick aluminum plate
- 1 piece die cast construction
- Locators prevent cylinder from spinning
- Cylinder sits flush to faceplate
- Tamper proof screws and driver provided
- No set screw required
- 1 or 2 switches may be installed
- Heat shrink protective sleeve over contacts
- Optional 1-60 second pneumatic time delay
Specifications
Specifications
Specifications
| UPC | 670454122049 |
|---|---|
| Also known as | CM2060, CM-2060 |
| Voltage | 12/24V AC/DC |
| Contact Rating | 6 Amps |
| Switch Life | 100,000 cycles |
| Temp Range | 32F - 85F (0C to +85C) |
| Dimensions | 4-1/2" x 1-3/4" x 1-1/2" (114mm x 44mm x 42mm) |
| Finish | Brushed Aluminum |
