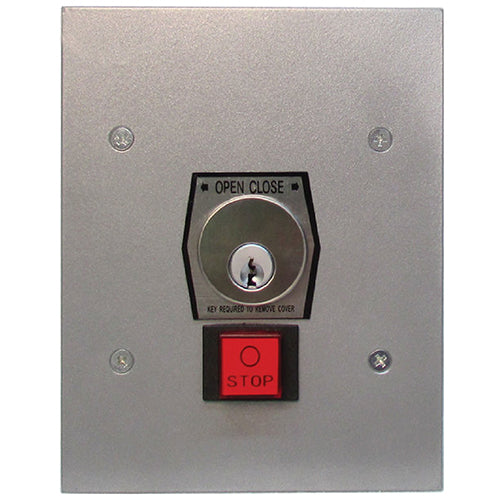

Camden Door Controls CM-CI-1KFS | Interior Use Industrial Key Switch, Flush Mount, NEMA 1 & 2, Heavy Duty Stop Button
Regular price
$121.04
Unit price
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Camden Door Controls CM-CI-1KFS | Interior Use Industrial Key Switc...
Regular price
$121.04
Unit price
Brand: Camden Door Controls
|
SKU:
CS126718
Regular price
$121.04
Unit price
Description
Description
The Camden CI-1KFS interior use industrial key switches feature heavy-duty faceplates with die-cast aluminum enclosures and rubber gaskets. They have 2 SPST momentary switches rated 3A @240 VAC and a mortise cylinder with 2 keys. These tamper proof switches are UL listed and CSA certified. Designed for activating overhead doors, storefront grilles and shutters. The unit is designed for flush mounting and is equipped with a heavy-duty stop button.
Key Features
- Heavy duty stop button
- Heavy duty die cast aluminum enclosure
- NEMA 1 and NEMA 2 for interior use
- Form A and Form C outputs available
- High power outputs 18A@125V DC, 15A@250V DC
- Tamper resistant
- UL, CSA certified
Specifications
Specifications
Specifications
| UPC | 670454110022 |
|---|---|
| Also known as | CI1KFS, CM-CI1KFS |
| Contact Type | 2 x N/O SPST, 1 x N/C Momentary |
| Contact Rating | 18A@125V DC, 15A@250V DC |
| Enclosure | NEMA 1 and NEMA 2 |
| Dimensions | 4-7/16" x 5" x 2-25/32" (113mm x 127mm x 71mm) |
