Camden Marketing Door Sequencer
Part Number: 474275
0 Review(s)
Write a Review
Availability:
$63.34
Retail Price:$68.64
Your Savings:$5.30(8%)
  • Low prices.

    Price match guarantee

  • In-House Experts.

    We know our products

  • Easy Returns.

    Quick & Hassle Free

  • Superior Selection.

    Extensive product catalog

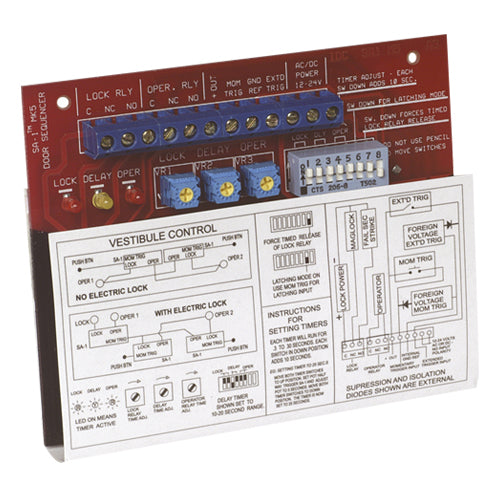

The economical CX-SA1 features a momentary or extended trigger, two relays and 3 timers. The CX-SA1 will properly sequence an operator and electric lock (any kind) or two doors that form a vestibule. and it becomes a latching relay with the flick of a switch.


https://www.alldataresource.com/assets/images_commscope/features.jpg

Key Features

  • Sequence and release
  • Sequence and hold while voltage still applied
  • Sequence and hold till next trigger
  • Triggers for sequencing and hold open applications
  • Dry contact and/or hot trigger input on either trigger
  • Stuck momentary trigger leaves the extended trigger functioning
  • Noise filtering on the triggers to prevent false activations
  • 2 relays for controlling external equipment
  • Visible indicators for status of timers and relays
  • 3 year warranty



https://www.alldataresource.com/assets/images_commscope/specs.jpg

Specifications

UPC670454154262
Also known asCXSA1, CM-CXSA1
Voltage12 to 24V AC/DC
Current Draw18mA Idle, 63mA Operating @ 24V
Response Time0.3 Seconds
Input2 x N/O Wet or Dry Contacts
OperationOne Shot, Maintained, or Latching
Output2 x Form C (SPDT)
Contact Rating[email protected] DC
Electrical Life100,000 @ Rated Capacity
Time DelayD.O.R. #1: 0.5-30 Seconds; D.O.O. #2: 0.5-30 Seconds; D.O.R. #2: 0.5-30 Seconds
Dimensions3-1/2"L x 4"W x 2/3"H (89mm x 102mm x 19mm)



https://www.alldataresource.com/assets/images_commscope/pdf.jpg

Documents and Downloads

Camden Door Controls CX-SA1 Data SheetClick to View
