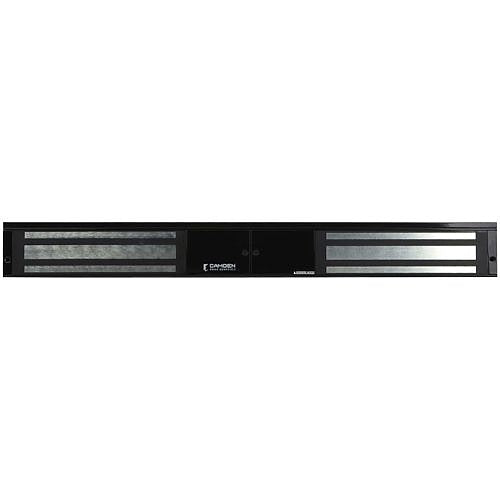

Camden Door Controls CX92S06TDSBK | Surface Mount Double Doors - With Adjustable Timer, Door Status Switch, Lock Sensor/Relay & Led, All-Black Finish

CX-92S Series (600 lb and 1200 lb) double door magnetic locks offer the best performance and value. The wide selection of models includes a ‘TDS’ option with an adjustable timer, lock sensor, door status switch and LED. CX-92 Series magnetic locks are supported with a range of lock mounting accessories, including kits for glass doors. Now UL 1034, UL 294, and ULC S533 listed, and are availalble in an aluminum or black finish.

Camden Door Controls - CX92S06TDSBK - Features

• 601 And 1,200 lb Single door models
• Weather and vandal resistant construction proven over thousands of installations
• Compatible with all access/egress systems
• Metal mounting jig included
• Locking mounting bolts
• Field selectable 12/24V DC operation
• On board MOV power surge protection prevents damage to mag lock
• Wide range of mounting brackets and spacers available

Camden Door Controls - CX92S06TDSBK - Specifications

Dimensions	3.5"L x 20.5"W x 2"H
Weight	9.5lbs
UPC	670454220776
Finish	Black
Holding Force Lbs	600
Input Voltage	Selectable 12 Or 24 Volt Dc
Mounting	Surface Mounted
Product Type	Double Electromagnetic Lock
UNSPSC CODE	46171500
Product Type	Magnetic Locks
Armature Plate Depth	15/32"
Armature Plate Height	1-1/2"
Color	Black
Input Voltage	12V DC, 24V DC

Camden Door Controls - CX92S06TDSBK - Documents and Downloads

Camden Door Controls CX92S06TDSBK Data Sheet

Click to View
