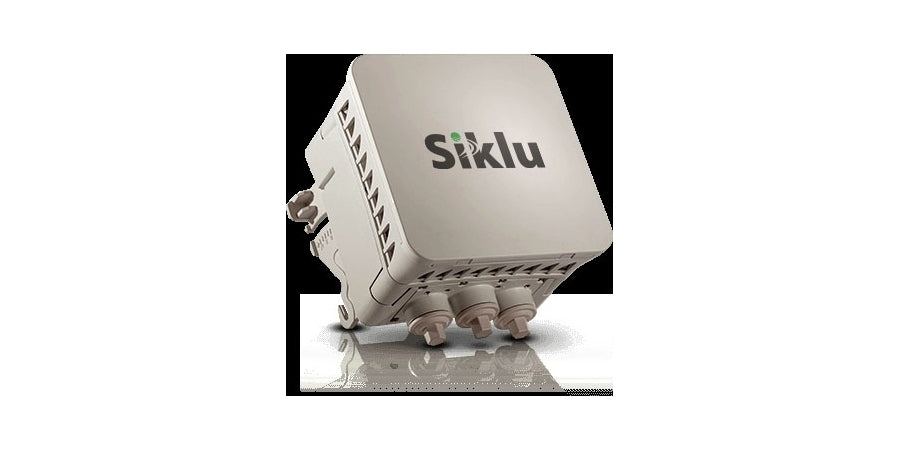

Ceragon Networks EH600TXODUPOE | Outdoor Unit, 5.9 x 6.1 x 3.5 in., 57 to 66 GHz, Includes, Integrated Antenna
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Description
Description
The etherhaul-600tx, the world's smallest 60GHz wireless bridge, delivers gigabit capacity and interference-free operation in highly densified street level networks. The ample 7GHz wide 60GHz spectrum is ideal for dense, capacity-hungry networks. EH-60 0TX incorporates an integrated antenna and gbe switch, with PoE-in and dual PoE-out and can be aligned by anyone in under 15 min. These features reduce the number of fragile cable-runs and of power sources, and eliminate the need for external devic es. EH-600TX enables future-proof wireless connectivity for surveillance cameras. Its unique combination of gigabit capacity and fraction of msec delay, results a future-proof solution that can extend cascading while servicing multiple services such a s surveillance camera and public wi-fi, over one robust network with carrier-grade predicted performance. With no telco knowledge required, gigabit ethernet service is deployed in just 15 min. Optional advanced configuration is available via an int uitive web gui.the etherhaul-600tx, the world's smallest 60GHz wireless bridge, delivers gigabit capacity and interference-free operation in highly densified street level networks. The ample 7GHz wide 60GHz spectrum is ideal for dense, capacity-hungry networks. EH-60 0TX incorporates an integrated antenna and gbe switch, with PoE-in and dual PoE-out and can be aligned by anyone in under 15 min. These features reduce the number of fragile cable-runs and of power sources, and eliminate the need for external devic es. EH-600TX enables future-proof wireless connectivity for surveillance cameras. Its unique combination of gigabit capacity and fraction of msec delay, results a future-proof solution that can extend cascading while servicing multiple services such a s surveillance camera and public wi-fi, over one robust network with carrier-grade predicted performance. With no telco knowledge required, gigabit ethernet service is deployed in just 15 min. Optional advanced configuration is available via an int uitive web GUI.
Specifications
Specifications
Ceragon Networks - EH600TXODUPOE - Product Categories
- Networking and Wireless
- Wireless
- Broadband and Microwave
- Broadband and Microwave Accessories
Ceragon Networks - EH600TXODUPOE - Specifications
| Manufacturer Name | Ceragon Networks Ltd |
|---|---|
| Manufacturer Part Number | EH600TXODUPOE |
| Item Description | Outdoor Unit, 5.9 x 6.1 x 3.5 in., 57 to 66 GHz, Includes, Integrated Antenna |
| Band | 57-64GHz |
| Data Rate | 1000 Mbps |
| Dimensions WxHxD | 5.3 x 1.6 x 9.5 in., 0.5 ft. Antenna |
| Dimensions | 5.9 x 6.1 x 3.5 in. |
| Frequency Bands | 57 to 66GHz |
| Frequency | 57 to 66 GHz |
| Height | 5.9 in. |
| Includes | Integrated Antenna |
| Length | 6.1 in. |
| Network Interface | GbE Copper Port |
| Number of Network Ports | 3 |
| Operating Temperature | -45 to 55 C |
| Power Consumption | 26W w/o PoE Out, 78W w/PoE Out |
| Power Method | PoE+ (IEEE 802.3at) |
| Product Type | Outdoor Unit |
| Special Feature | QPSK-1/QPSK-2/QPSK-3/QAM16/QAM64 Modulation, GbE Copper Port, 3-Network Port |
| System | EtherHaul |
| Type | V-Band Radio w/Integrated Antenna |
| Width | 3.54 in. |
