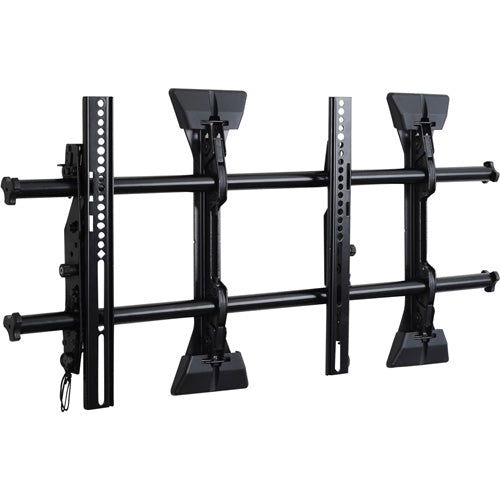

Chief Manufacturing LTM1U | TV Mount, Large Fusion Micro-Adjustable, Wall Mount, Universal, Landscape
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Chief Manufacturing LTM1U | TV Mount, Large Fusion Micro-Adjustable...
Description
Description
Audio Visual - TV Wall Mounts
Chief upgraded fixed wall mounts based on installer feedback and direct observations of installers in the field. Many new features join Fusion favorites like Centerless shift, Centris tilt, ControlZone leveling adjustment and ClickConnect Latching. New benefits included added stability, faster install, improved lateral shift, easier cable management and enhanced security.Installer-inspired Fusion tilt mount solves top flat panel installation problems, offering flexible adjustments for large displays with a low-profile display mounting solution.
Chief Manufacturing LTM1U Large Fusion Micro-Adjustable Tilt Wall Mounts designed is based on installer feedback and direct observations of installers in the field. Many new features join Fusion favorites like Centerless shift, Centris tilt, ControlZone leveling adjustment and ClickConnect Latching. New benefits included added stability, faster install, improved lateral shift, easier cable management and enhanced security. Installer-inspired Fusion tilt mount solves top flat panel installation problems, offering flexible adjustments for large displays with a low-profile display mounting solution.
Chief Manufacturing - LTM1U - Features
- Centris low-profile tilt uses the center of gravity to balance the screen while maintaining a low profile
- Set screws keep the mount rigid, stable and secure throughout the life of the installation
- ClickConnect offers an audible click when the screen safely engages with the mount
- Built-in cable stand provides easy access under the screen
- A full line of accessories can be installed with the mount and the entire unit can be adjusted together
- Multiple installation options for various stud distances
- Tech Info
- UL, TUV
- Can withstand a maximum weight of 200 lb
- Supports 86" displays
- Suits the screens with 100 x 100 mounting hole pattern
- Centerless Shift provides up to 17.4" (441 mm) of post-installation lateral shift for limitless centering
- Centris low-profile tilt uses the center of gravity to balance the screen while maintaining a low profile
- Set screws keep the mount rigid, stable and secure throughout the life of the installation
- ClickConnect offers an audible click when the screen safely engages with the mount
- Built-in cable stand provides easy access under the screen
- A full line of accessories can be installed with the mount and the entire unit can be adjusted together
- Multiple installation options for various stud distances
- Exclusive nesting spacers can be stacked to achieve any depth
- Quick-Store Cords use magnets to easily store and access pull cords
- Improved cable management with new end caps
- Ships with a custom hardware kit that can be hung from mount rails if installing in stages
- UL Listed
- 200 lbs. weight capacity
Specifications
Specifications
Chief Manufacturing - LTM1U - Technical Drawing
| Click on image to enlarge. |
|---|
Chief Manufacturing - LTM1U - Specifications
| Manufacturer | Chief Manufacturing |
|---|---|
| Manufacturer Part Number | LTM1U |
| Manufacturer Website Address | http://www.chiefmfg.com |
| Brand Name | Chief |
| Product Line | Fusion Wall Tilt |
| Product Model | LTM1U |
| Product Name | Large Fusion Micro-Adjustable Tilt Wall Mount |
| Product Type | Wall Mount |
| Device Supported | Flat Panel Display |
| Number of Displays Supported | 1 |
| Maximum Load Capacity | 200 lb |
| Minimum Screen Size Supported | 37" |
| Maximum Screen Size Supported | 63" |
| UNSPSC Code | 45111800 |
