Description
Description

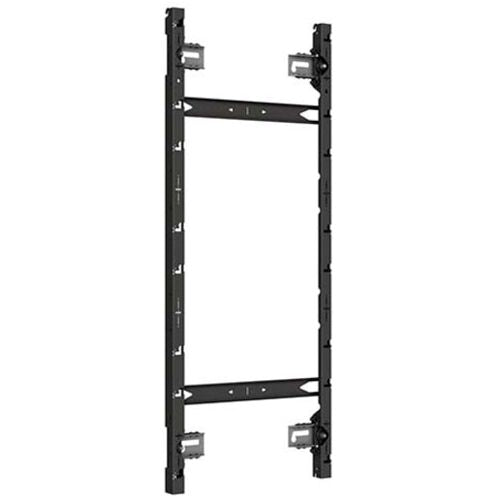

The TiLED™ LED Video Wall Mounting System is designed to mount 5 vertically stacked LED displays from the Absen Acclaim Plus & Acclaim Pro Series. Simply stack LED displays to create one continuous video wall. Chief's modular design attaches to the top, bottom, and sides of other mounts to support endless design configurations. TiLED Video Wall Mounting Systems feature offset mounting slots to protect LED displays from damaging friction during installation. Once displays are in place, variable X,Y, and Z-axis adjustments allow perfect positioning and alignment for a flawless video wall.
TiLED direct view LED mounting solutions are in stock and ready to ship with no custom lead times or project registration required. Easy to specify, order, and install. Turn your creative vision into a reality. Compatible with:
- A2712 PLUS
- A2715 PLUS
- A2725 PLUS
- A2738 PLUS
- A2712 Pro
- A2715 Pro
Chief Manufacturing - TIL1X5AP - Features
- X-axis lateral shift adjustments enable perfect LED positioning
- X-axis lateral shift adjustments enable perfect LED positioning
- Y-axis vertical shift adjustments provide perfect cabinet-to-cabinet alignment
- Y-axis vertical shift adjustments provide perfect cabinet-to-cabinet alignment
- Z-axis plumb adjustments compensate for wall imperfections to achieve perfectly flat mounting surfaces
- Z-axis plumb adjustments compensate for wall imperfections to achieve perfectly flat mounting surfaces
- Modular design supports creative video wall design
- Modular design supports creative video wall design
- Keyhole slots allow for fast and easy mount installation
- Keyhole slots allow for fast and easy mount installation
- Offset mounting slots for easy installation and to protect LED sides from damaging friction
- Offset mounting slots for easy installation and to protect LED sides from damaging friction
- Depth range with display between 3.81" - 4.56" (97-113 mm) for low-profile result
- Depth range with display between 3.81" - 4.56" (97-113 mm) for low-profile result
- Standard, off-the-shelf solution set means product is stockable and ready to ship - no custom lead times
- Standard, off-the-shelf solution set means product is stockable and ready to ship - no custom lead times
Specifications
Specifications
Chief Manufacturing - TIL1X5AP - Specifications
| Manufacturer | Legrand Group |
|---|---|
| Manufacturer Part Number | TIL1X5AP |
| Manufacturer Website Address | http://www.legrand.us |
| Brand Name | Chief |
| Product Line | TiLED |
| Product Model | TIL1X5AP |
| Product Name | 1x5 LED Mount for Absen Acclaim Plus & Acclaim Pro Series |
| Product Type | Wall Mount |
| Device Supported | LED Monitor |
| Number of Displays Supported | 5 |
| Maximum Load Capacity | 100 lb |
| Features | Plumb Adjustment |
| UNSPSC Code | 45111800 |
