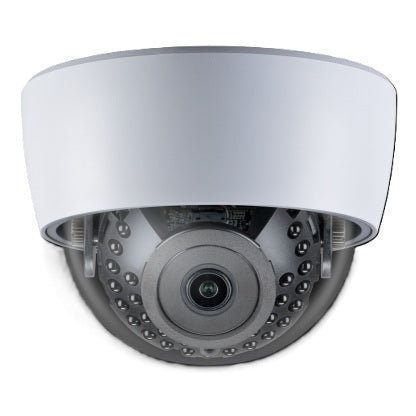

Clinton Electronics CE-IDX2HDL | EX-SDI 2.0 IR IDX Lite
Description
Description
Lite on price, heavy on performance. The IDX Lite Series is the perfect solution for those looking to migrate to EX-SDI from Analog or IP. Inspired by the EX-SDI Pro series, the Lite series brings Autofocus, 30 fps WDR, and Up the Coax Control (UCC) to those who demand more for less. End Users upgrading from an Analog based system will marvel at the full HD 1080p resolution while retaining their coax infrastructure with EX-SDI 2.0 technology. Try a Lite Series today, and you will quickly find out why it’s becoming the go-to camera series of choice for price-sensitive applications.
Clinton Electronics - CE-IDX2HDL - Features
- 1/2.8” SONY Starvis 2.13 Megapixel CMOS Sensor
- 1080p @ 30fps Over RG59 Coax
- 2.8~8mm (ƒ1.6) True D/N Autofocus Lens
- 29 IR LEDs
- Dual Video Output: EX-SDI 2.0 / HD-SDI & HD Analog outputs
- EXHD Lite 2.0
- OSD Menu Control via Built-In Joystick, CE-REMOTE or UCC*
- RVM (Rated Voltage Monitoring)
- DC12V/AC24V
- UL Listed
- NDAA Compliant
Specifications
Specifications
Clinton Electronics - CE-IDX2HDL - Product Categories
- Security
- Video Surveillance
- Surveillance Cameras
Clinton Electronics - CE-IDX2HDL - Specifications
| Brand Name | Clinton Electronics |
|---|---|
| Manufacturer Part Number | CE-IDX2HDL |
| Form Factor | Bullet |
| UNSPSC Code | 46171600 |
| Image Sensor | 1/2.8” SONY Starvis 2.13 Megapixel CMOS Sensor |
| Scanning System | Progressive Scan |
| Minimum Illumination | Color: 1 Lux (Sens-Up x32) |
| Resolution | 1080p |
| S/N Ratio | More than 52dB (AGC Off) |
| Shutter Speed | 1/30 – 1/60,000 sec. / AUTO |
| Effective Pixels | 1944 (H) x 1092 (V) |
| Frame Rate | 1080p: 30 FPS |
| Lens Type | Vari-Focal |
| Field Of View | 114.2° ~ 54.7° (Horizontal) |
| Focal Range | 2.8~8mm |
