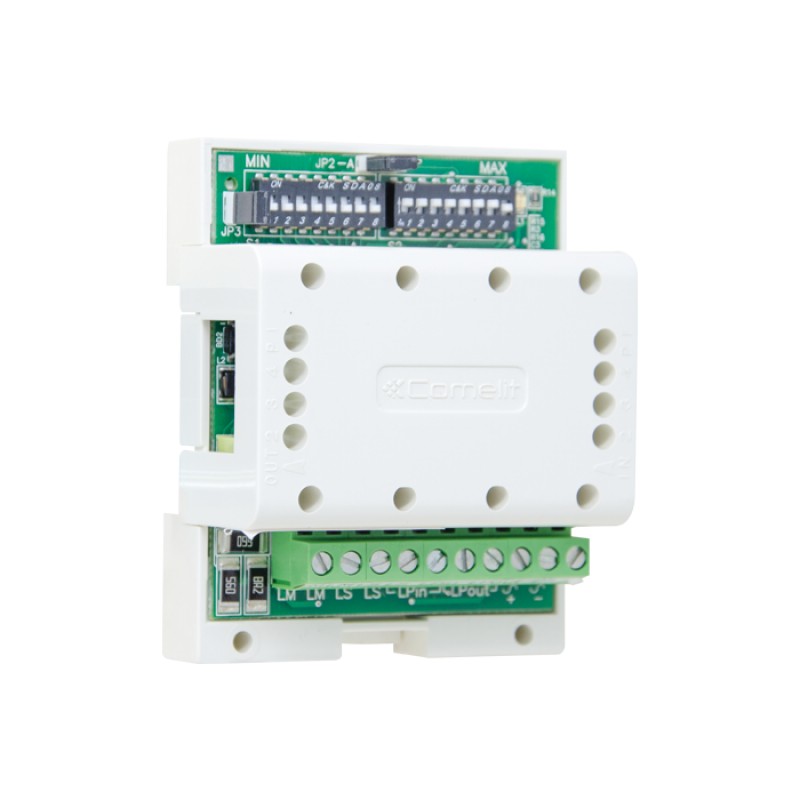

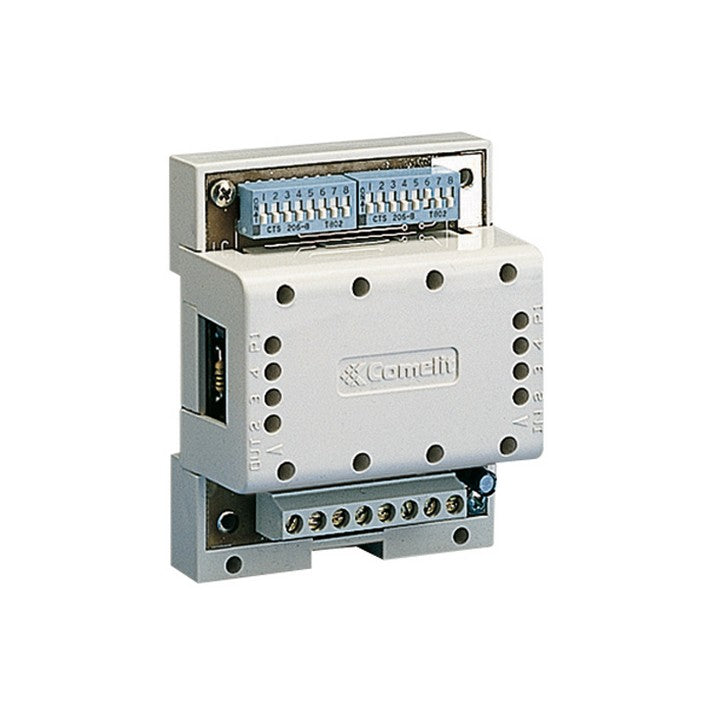

Comelit 1424 | SB Top Switcher Use ONLY In Systems Over 240 Apartments

The 1424 from Comelit is a Switching device 1424 can be used to create Simplebus systems of up to 120,000 users. It can also be used to create multi-villa systems with doors and porter switchboards, centralising up to 500 Comelit Simplebus KITS. Furthermore, the device also makes it possible to control main and secondary switchboards within a system (which can be called independently) and offers alarm signalling to those particular switchboards. It allows cascade bus line distribution as an alternative to star distribution, optimising the connection topology for the part of the system before the mixers 4888 and 4888C. It has a self-powering function for the LS|LS input, which allows riser management without requiring a dedicated secondary external unit. Power supply 12Vac (Art. 1200 may be used) -20Vdc. Housed in a box with 4 DIN modules.

Switching device 1424 can be used to create Simplebus systems of up to 120,000 users. It can also be used to create multi-kit systems up to 500 Comelit Simplebus KITS that can be integrated into a Simplebus system. The device also makes it possible to include main and secondary switchboards within a system (which can be called independently) and offers alarm signals to those particular switchboards. It offers options to cascade the bus line distribution as an alternative to star distribution, optimising the cabling for the part of the system before the mixers 4888 and 4888C. It also has a self-powering function for the LS|LS input, which allows riser management without requiring a dedicated secondary external unit. Power supply 12Vac (Art. 1200 may be used) -20Vdc. 4 DIN modules. Dimensions 60x85x35mm.




https://www.alldataresource.com/assets/images_commscope/product_classification.jpg

Comelit - 1424 - Product Categories

  • Audio and Visual
  • Intercom
  • Other Intercom



https://www.alldataresource.com/assets/images_commscope/features.jpg

Comelit - 1424 - Features

  • Manufacturer Comelit
  • Condition New
  • Model 1424
  • Product height (mm) 85
  • Product width (mm) 60
  • Single pack width (mm) 70
  • Single pack height (mm) 93
  • Single pack depth (mm) 37
  • AC supply voltage 12 V
  • Maximum current absorption (mA) 80
  • Temperature range 0 +40 C



https://www.alldataresource.com/assets/images_commscope/specs.jpg

Comelit - 1424 - Specifications

SKU1424
ManufacturerComelit
UNSPSC Code46171600
