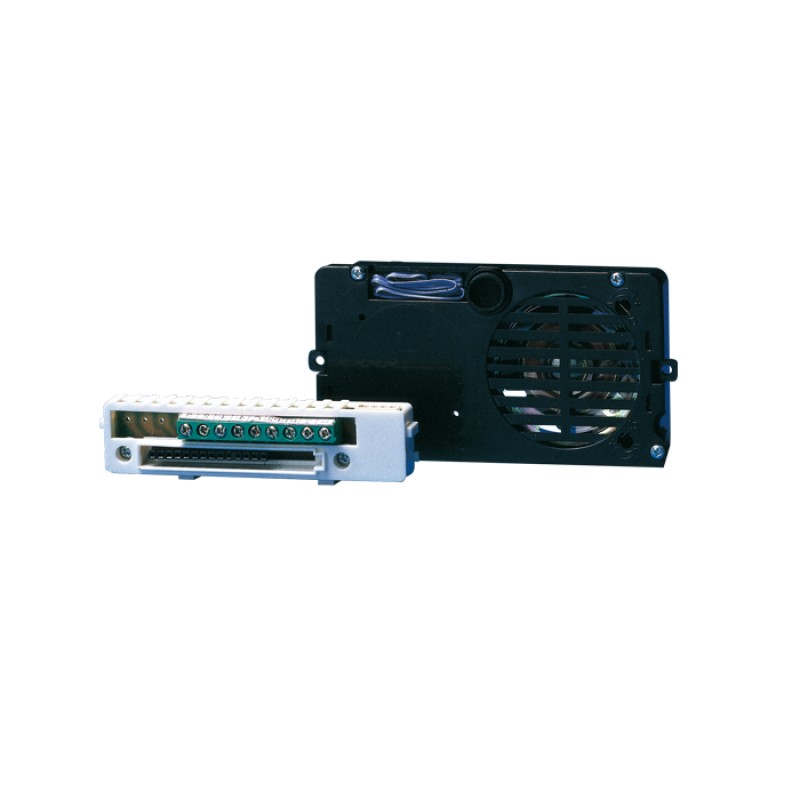

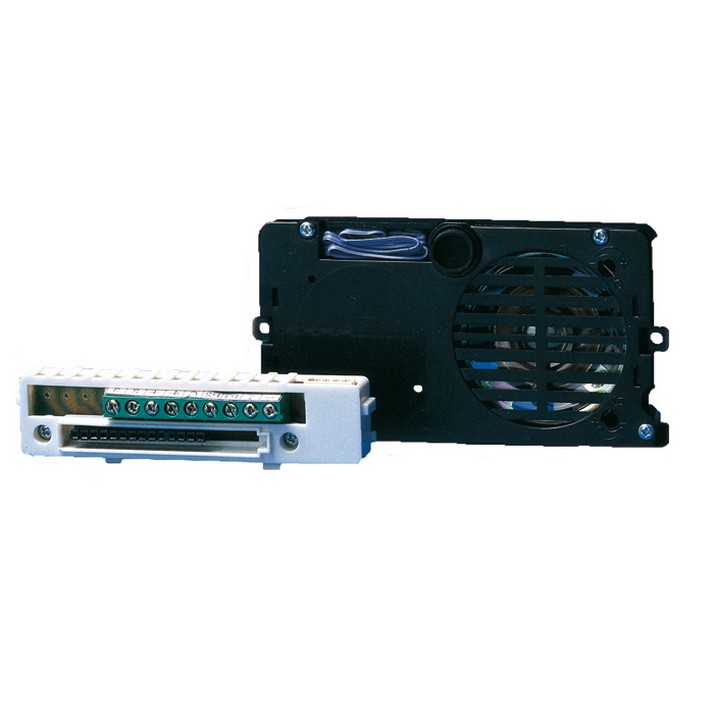

Comelit 1602 | Speaker Unit For Powercom Entrance Panel Use In Multi-Tenant

The 1602 from Comelit is an Audio speaker unit for Simplebus system with terminal board and double amplifier, watertight loudspeaker and electret microphone, Both, microphone and loudspeaker volumes, can be adjusted from the front. Complete with microprocessor and DIP Switch with 8 positions for programming the calls to the users. 12 V AC power supply (use Art. 1395/A). Electronic door-opening function on board (3A). To be inserted in modules Art. 3320/0, 320/1 and 3320/2. From the RI27 it is Compatible with all SBTOP functions and products. It allows call addressing for up to 120000 users.

Audio speaker unit for Simplebus system with terminal board and double amplifier, watertight loudspeaker and electret microphone, Both, microphone and loudspeaker volumes, can be adjusted from the front. Complete with microprocessor and DIP SWITCH with 8 positions for programming the calls to the users. 12 V AC power supply (use Art. 1395/A). Electronic door-opening function on board (3A). To be inserted in modules Art. 3320/0, ù3320/1 and 3320/2. Dimensions: 102X55X35 mm. From the RI27 it is compatible with all Simplebus 2 functions and products. It allows call addressing for up to 120000 users.

Comelit - 1602 - Product Categories

• Audio and Visual
• Audio Equipment
• Speakers

Comelit - 1602 - Features

• Manufacturer Comelit
• Condition New
• Model 1602
• Product height (mm) 55
• Product width (mm) 102
• Single pack width (mm) 110
• Single pack height (mm) 53
• AC supply voltage 12 V
• Maximum current absorption (mA) 200
• Temperature range -25 / 55 C

Comelit - 1602 - Specifications

SKU	1602
Manufacturer	Comelit
UNSPSC Code	52161600

Comelit - 1602 - Documents and Downloads

Comelit 1602 Datasheet	Click to View
Comelit 1602 General Catalogue	Click to View
