Comelit 3454HD/A | 316 - Audio/Video 8 Inch Touch Screen, Stainless...
Description
Description

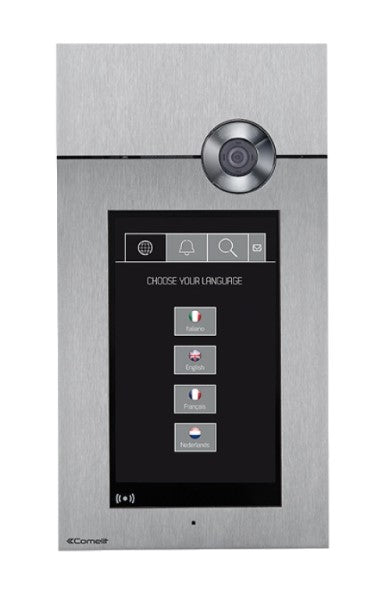

AISI 316 stainless steel flush-mounted entrance panel (fitted flush with the wall) featuring an 8” capacitive touchscreen offering high visibility and finished with shatterproof glass. IK08 certified. Operation with configurable graphics (list of names with search, virtual static buttons up to 10 users, alphabetised directory, number code up to 8 digits). Allows customisation of the virtual buttons and viewing of apartment block messages. Fully configurable using ViP Manager software. Has a Wiegand output for interfacing with access control systems. Fitted with RFID reader for local door lock activation, an additional relay for various uses, and proximity and brightness sensors for optimal operational management. It is compatible with all ViP system functions and products. Complete with ViP audio/video unit art. 4682HD compatible with H.264 video format and flush-mounted box with concealed fixing screws.
Comelit - 3454HD/A - Features
- AISI 316 stainless steel flush-mounted entrance panel
- 8" capacitive touchscreen with high visibility
- Shatterproof glass, IK08 certified
- Configurable graphics with up to 10 virtual buttons
- Customizable virtual buttons and apartment block messages
- Wiegand output for access control system interfacing
- RFID reader for local door lock activation
- Proximity and brightness sensors for optimal management
- Compatible with all ViP system functions and products
- Includes ViP audio/video unit and flush-mounted box
Specifications
Specifications
Comelit - 3454HD/A - Specifications
| UNSPSC Code | 46171600 |
|---|---|
| Power supply | 33 VDC |
| Dimensions (L x H x D) | 182x342x3 mm |
| Horizontal Viewing Angle | 83° |
| Screen Resolution | 1280 x 720 |
| Screen Size | 8" |
| Weight (Approximate) | 4 kg |
| Depth | 45 mm |
| Height | 342 mm |
| Width | 182 mm |
