Comelit 4933 | Signal Booster / Amplifier For SimpleBus Color
Description
Description

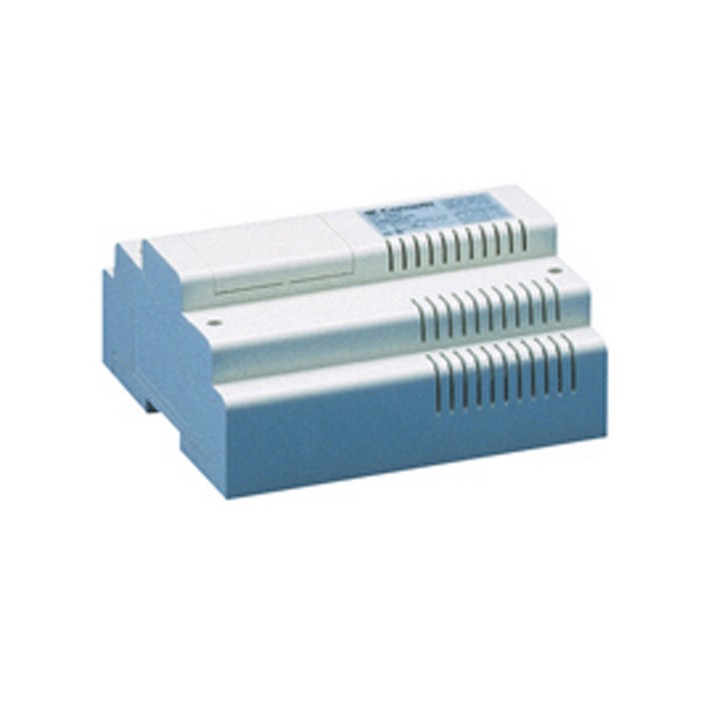

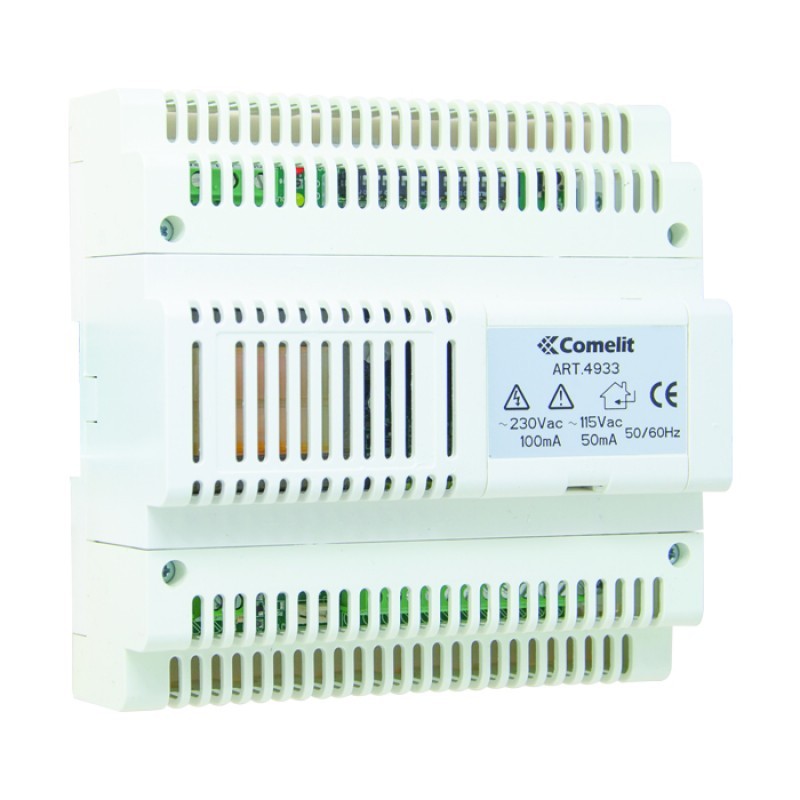

The 4933 from Comelit is a distributor and amplifier for simplebus top. 4933 is an amplifier with 6 outputs for star distribution of the video signal which is only directed and amplified towards the riser branch involved in the communication. 4933 regenerates and amplifies the video signal with two levels of gain independently over the 6 outputs to increase the operating distances. The riser outputs used must be programmed manually or via 1249B. Compatible with all SBTOP functions and products. 120-230 Vac power supply. Housed in a box with 8-DIN modules. Dimensions 2.6''x3.3''x1.4''.
The art. 4933 is a concentrator with 6 outputs for star distribution of the video signal which is only directed and amplified towards the riser branch involved in the communication. The art. 4933 regenerates and amplifies the video signal with two levels of gain independently over the 6 outputs to increase the operating distances. The riser outputs used must be programmed manually or via art. 1249B. Compatible with all Simplebus 2 functions and products. 115÷230 VAC power supply. Housed in a box with 8-DIN modules. Dimensions: 140x140x67 mm.
Comelit - 4933 - Features
- Manufacturer Comelit
- Condition New
- Model 4933
- Simplebus Top System Yes
- Surface-mounted Yes
- DIN rail mounted Yes
- DIN Modules (no.) 8
- Audio/video System Yes
- Temperature Range 0 / 40
- Maximum Current Absorption 150 (mA)
- Product Height (mm) 140
- Product Width (mm) 140
- Product Depth (mm) 67
Specifications
Specifications
Comelit - 4933 - Product Categories
- Audio and Visual
- Audio Equipment
- Amplifiers
Comelit - 4933 - Specifications
| SKU | 4933 |
|---|---|
| Manufacturer | Comelit |
| UNSPSC Code | 52161600 |
