Comelit UT8090S | Wall MountComplete Video + Touch Ultra Entrance P...
Description
Description

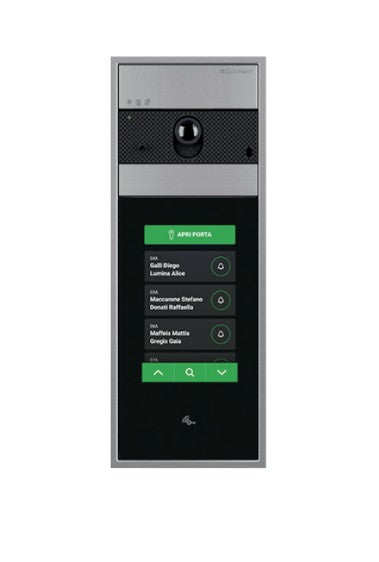

Ultra series surface-mounted audio/video entrance panel with 5” Touchscreen module for IP (ViP) system. Twilight sensor for touchscreen backlighting management. Omnidirectional digital microphone and double loudspeaker for high-fidelity audio. Wide-angle colour video camera with 160° horizontal, 100° vertical field of vision. Audio-visual indications for disabled individuals assistance request. 5” high-visibility capacitive display with impact-proof glass and theme selection (black or white). User-friendly graphic interface, can be customised with virtual call buttons or a number keypad to call the user directly when the code is known. Access control function with audio or audio/video module output and system actuator activation. Option of customising the buttons for direct calls to the switchboard, commercial activities with corresponding logos and viewing welcome messages. It has a Wiegand output for interfacing with access control systems, an RFID reader for activating an opening using keys or Comelit cards, and a Bluetooth connection. Consists of audio/video module art. UT8020, Touch module art. UT9270 and surface-mounted housing art. UT9173.
Comelit - UT8090S - Features
- User-friendly graphic interface, can be customised with virtual call buttons or a number keypad to call the user directly when the code is known.
- Access control function with audio or audio/video module output and system actuator activation.
- Option of customising the buttons for direct calls to the switchboard, commercial activities with corresponding logos and viewing welcome messages.
- It has a Wiegand output for interfacing with access control systems, an RFID reader for activating an opening using keys or Comelit cards, and a Bluetooth connection.
- Consists of audio/video module art. UT8020, Touch module art. UT9270 and surface-mounted housing art. UT9173.
- Just 35 mm protrusion from the wall.
Specifications
Specifications
Comelit - UT8090S - Specifications
| UNSPSC Code | 46171600 |
|---|---|
| Dimensions (L x H x D) | 110x289x35 mm |
| UPC Code | 8023903420012 |
| Product Type | Video Door Phone Sub Station |
| Camera Resolution | 1.2MP |
| Horizontal Viewing Angle | 160° |
| Screen Resolution | 800 x 480 |
| Screen Size | 5" |
| Depth | 1.4" |
| Height | 11.4" |
| Width | 4.3" |
| Weight (Approximate) | 4.41 lb |
