Brand: CommScope
|
SKU:
373-COMZWP-SLTA-12

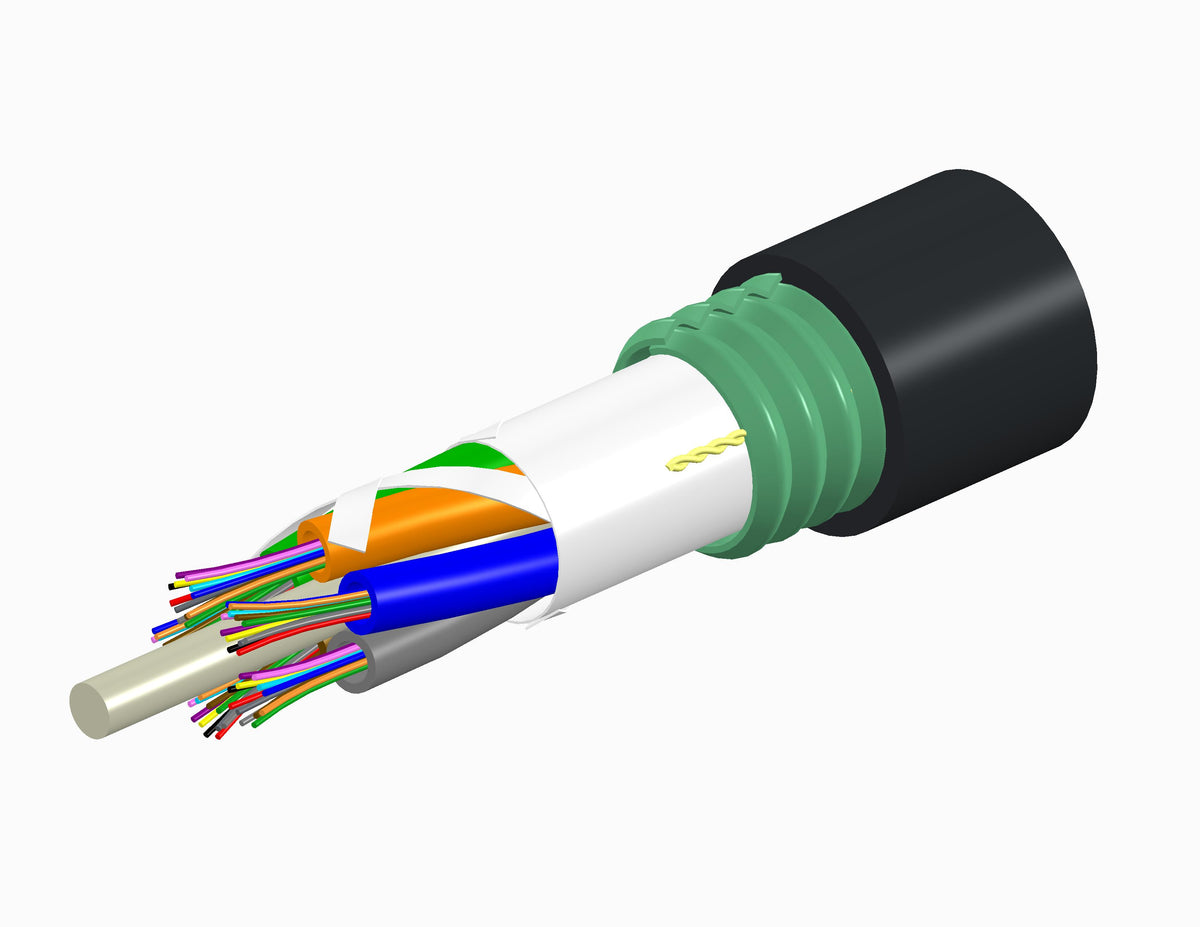

CommScope 760154963 | Fiber indoor/outdoor cable, TeraSPEED, Single Jacket/Single Armor, Low Smoke Zero Halogen (LSZH), 12 fiber
Regular price
$1.43
Unit price
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
CommScope 760154963 | Fiber indoor/outdoor cable, TeraSPEED, Single...
Regular price
$1.43
Unit price
Brand: CommScope
|
SKU:
373-COMZWP-SLTA-12
Regular price
$1.43
Unit price
Description
Description
CommScope 760154963 | Fiber indoor/outdoor cable, TeraSPEED, Single Jacket/Single Armor, Low Smoke Zero Halogen (LSZH), 12 fiber
Specifications
Specifications
CommScope - 760154963 - Product Categories
- Cables
- Fiber Optic Cables
CommScope - 760154963 - General Specifications
| Brand Name | CommScope |
|---|---|
| Manufacturer Part Number | 760154963 | Z-012-LA-8W-F12BK/25D/C |
| Item Description | Fiber indoor/outdoor cable, TeraSPEED, Single Jacket/Single Armor, Low Smoke Zero Halogen (LSZH), 12 fiber, Singlemode G.652.D and G.657.A1, Gel-Free, Stranded Loose Tube, Black jacket color, Feet jacket marking, Cca flame rating |
| Armor Type | Corrugated steel |
| Cable Type | Stranded loose tube |
| Construction Type | Armored |
| Subunit Type | Gel-free |
| Filler, quantity | 4 |
| Jacket Color | Black |
| Jacket Marking | Feet |
| Subunit, quantity | 1 |
| Fibers per Subunit, quantity | 12 |
| Total Fiber Count | 12 |
CommScope - 760154963 - Product Classification
| Regional Availability | Asia | Australia/New Zealand | EMEA | Latin America | North America |
|---|---|
| Portfolio | CommScope |
| Product Type | Fiber indoor/outdoor cable |
| Product Series | Z-LA |
CommScope - 760154963 - Physical Specifications
| Dimensions | - |
|---|---|
| Buffer Tube/Subunit Diameter | 2.5 mm | 0.098 in |
| Diameter Over Jacket | 13 mm | 0.512 in |
| Mechanical Specifications | - |
| Minimum Bend Radius, loaded | 195 mm | 7.677 in |
| Minimum Bend Radius, unloaded | 130 mm | 5.118 in |
| Tensile Load, long term, maximum | 800 N | 179.847 lbf |
| Tensile Load, short term, maximum | 2700 N | 606.984 lbf |
| Compression | 22 N/mm | 125.623 lb/in |
| Compression Test Method | FOTP-41 | IEC 60794-1 E3 |
| Flex | 25 cycles |
| Flex Test Method | FOTP-104 | IEC 60794-1 E6 |
| Impact | 3 N-m | 26.552 in lb |
| Impact Test Method | FOTP-25 | IEC 60794-1 E4 |
| Strain | See long and short term tensile loads |
| Strain Test Method | FOTP-33 | IEC 60794-1 E1 |
| Twist | 10 cycles |
| Twist Test Method | FOTP-85 | IEC 60794-1 E7 |
| Vertical Rise, maximum | 461 m | 1512.467 ft |
| Optical Specifications | - |
| Fiber Type | G.652.D and G.657.A1, TeraSPEED |
| | OS2 | OS2 | Environmental Specifications |
| -30 °C to +60 °C (-22 °F to +140 °F) | Operating Temperature |
| -40 °C to +70 °C (-40 °F to +158 °F) | Storage Temperature |
| -40 °C to +75 °C (-40 °F to +167 °F) | Cable Qualification Standards |
| ANSI/ICEA S-104-696 | EN 187105 | Telcordia GR-20 | Telcordia GR-409 | EN50575 CPR Cable EuroClass Fire Performance |
| Cca | EN50575 CPR Cable EuroClass Smoke Ratin |
