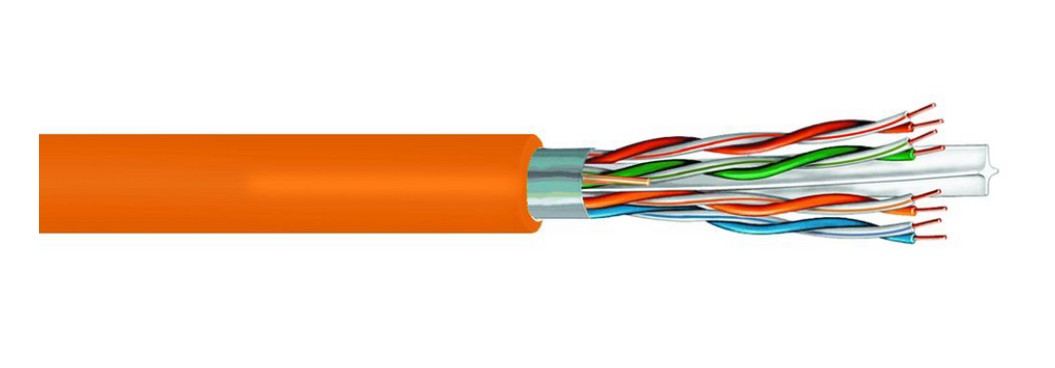

CommScope UN874017984/30 | Category 6 F/UTP Cable Plenum Orange Jacket
Regular price
$2.52
Unit price
Brand: CommScope
|
SKU:
CMP-00423CS34-6F-08R
Regular price
$2.52
Unit price
Description
Description
CommScope UN874017984/30 | Category 6 F/UTP Cable Plenum Orange Jacket
Specifications
Specifications
CommScope - UN874017984/30 - Specifications
| Installation Temperature | 0 °C to +60 °C (+32 °F to +140 °F) |
|---|---|
| Operating Temperature | -20 °C to +60 °C (-4 °F to +140 °F) |
| Environmental Space | Plenum |
| Flame Test Method | CMP/FT6 | NEC Article 800 | NFPA 262 | UL 444 | UL 910 |
| Smoke Test Method | CMP/FT6 |
| Characteristic Impedance | 100 ohm |
| DC Resistance Unbalance, Maximum | 0.05 |
| DC Resistance, Maximum | 8 ohms/100 m | 2.438 ohms/100 ft |
| Delay Skew, Maximum | 45 ns |
| Dielectric Strength, Minimum | 1500 Vac | 2500 Vdc |
| Mutual Capacitance at Frequency | 5.6 nF/100 m @ 1 kHz |
| Nominal Velocity of Propagation (NVP) | 0.71 |
| Operating Frequency, Maximum | 250 MHz |
| Operating Voltage, Maximum | 80 V |
