Brand: CommScope
|
SKU:
519230

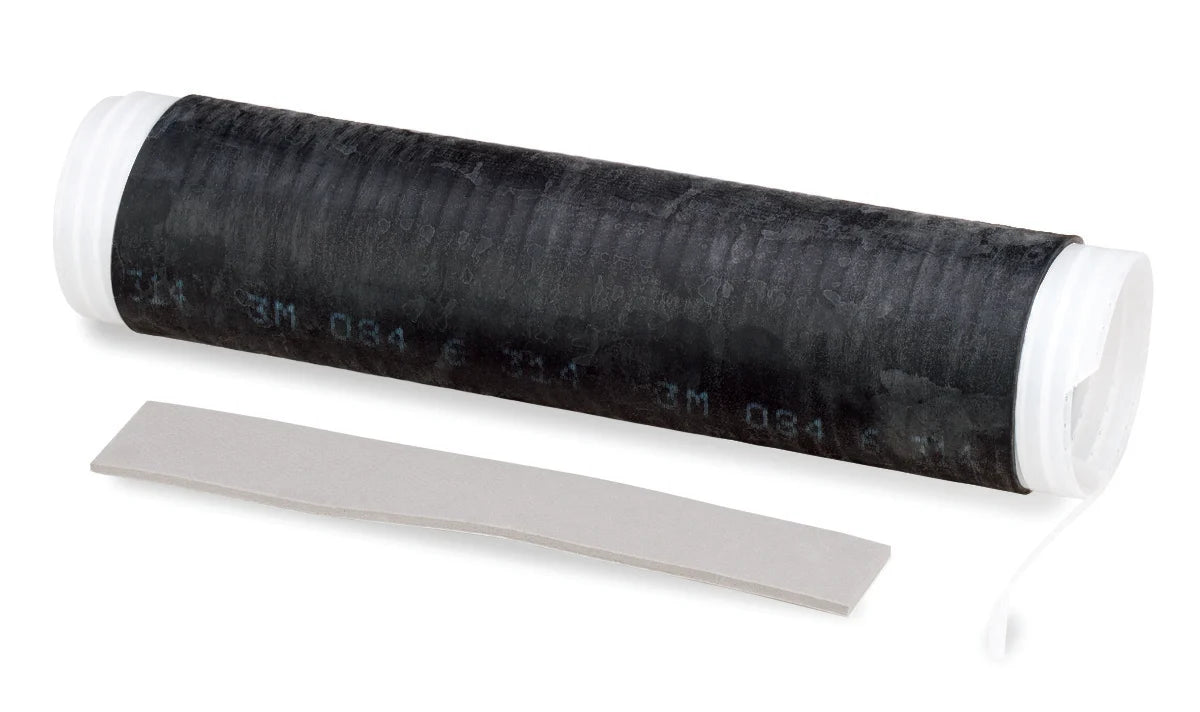

Commscope 241475-13 | Cold shrink Kit for 5/8 in to 1/4 in through 1/2 in connections
Regular price
$48.85
Unit price
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Commscope 241475-13 | Cold shrink Kit for 5/8 in to 1/4 in through ...
Regular price
$48.85
Unit price
Brand: CommScope
|
SKU:
519230
Regular price
$48.85
Unit price
Description
Description
Commscope 241475-13 | Cold shrink Kit for 5/8 in to 1/4 in through 1/2 in connections
Specifications
Specifications
Product Classification
| Product Type | Cold shrink kit |
|---|---|
| Ordering Note | CommScope non-standard product |
General Specifications
| Application | Provides additional moisture seal for cable connections |
|---|---|
| Applications per Kit | One 1/4 in–1/2 in to 5/8 in |
| Cable Family | ETS1-50T / FSJ1-50B / FSJ1-75 / FSJ4-50B / FSJ4-75A / LDF1-50 / LDF4-50A / LDF4-75 / LDF4.5-50 |
| Color | Black |
Dimensions
| Width | 53.848 mm / 2.12 in |
|---|---|
| Length | 254 mm / 10 in |
| Cable Diameter for Seal, maximum | 20.32 mm / 0.8 in |
| Cable Diameter for Seal, minimum | 7.37 mm / 0.29 in |
| Inner Diameter | 51.31 mm / 2.02 in |
| Nominal Size | 1/2 in / 1/4 in / 5/8 in |
Material Specifications
| Material Type | EPDM rubber |
|---|
Environmental Specifications
| UV Resistance Test Method | UV condensation reference ASTM-G-53, light source UVA 340 fluorescent lamp |
|---|---|
| UV Resistance, minimum with no degradation | ?1000 hours |
| Weather Resistance Test Method | 04AS00-03.6.0 / MIL-STD-1344A, Method 1002 |
Packaging and Weights
| Height, packed | 292.1 mm / 11.5 in |
|---|---|
| Width, packed | 78.74 mm / 3.1 in |
| Length, packed | 78.74 mm / 3.1 in |
| Included | One EPDM rubber tube / One sealing foam strip |
| Packaging quantity | 1 |
| Weight, gross | 0.16 kg / 0.353 lb |
Regulatory Compliance/Certifications
| ISO 9001:2015 | Designed, manufactured and/or distributed under this quality management system |
|---|---|
| ROHS | Compliant |
| CHINA-ROHS | Below maximum concentration value |
| REACH-SVHC | Compliant as per SVHC revision on www.commscope.com/ProductCompliance |
Documents and Downloads
Documents and Downloads
- Cold shrink Weatherproofing Kits for Coaxial Cables
- Cold shrink Weatherproofing Kits for HELIAX Foam Dielectric Coaxial Cables
- HELIAX Coaxial Cable
- Accessories for HELIAX Products
- 241475-13 Product specifications
- Customer and Technical Support, Training, Software/Firmware, Repair Services
- Application Details for the Cold shrink Antenna/Jumper Cable Interface Assembly
- Cold shrink Weatherproofing Kits for Extreme Cold Weather Conditions
