Brand: CommScope
|
SKU:
463921

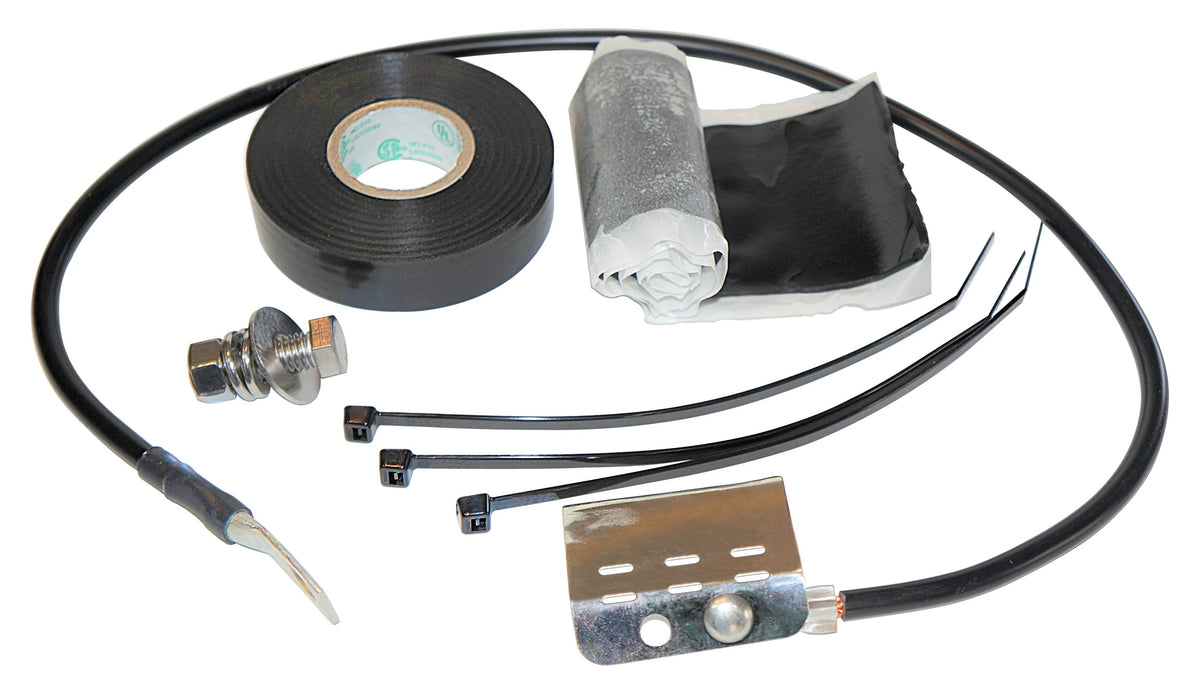

Commscope 242948 | Standard Grounding Kit for 1/4 in and 3/8 in corrugated and braided coaxial cable, FSJ4-50B cable, and elliptical waveguide 240 and 380
Regular price
$29.32
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Commscope 242948 | Standard Grounding Kit for 1/4 in and 3/8 in cor...
Regular price
$29.32
Unit price
Description
Description
Commscope 242948 | Standard Grounding Kit for 1/4 in and 3/8 in corrugated and braided coaxial cable, FSJ4-50B cable, and elliptical waveguide 240 and 380
Specifications
Specifications
Product Classification
| Product Type | Grounding kit |
|---|---|
| Ordering Note | CommScope non-standard product |
General Specifications
| Bonding Conductor Jacketing Material | PVC |
|---|---|
| Bonding Conductor Material | Copper |
| Bonding Conductor Wire Size | 6 gauge |
| Cable Type | Braided / Corrugated / Elliptical waveguide |
| Color | Black |
| Grounding Kit Type | Standard Grounding Kits |
| Grounding Strap Material | Tinned copper |
| Lug Attachment | Factory attached |
| Lug Type | One-hole lug, screw on |
| Thread Size | 3/8 in |
Dimensions
| Bonding Conductor Length | 609.6 mm / 24 in |
|---|---|
| Cable Jacketing Removal Length, maximum | 58.42 mm / 2.3 in |
| Cable Jacketing Removal Length, minimum | 55.88 mm / 2.2 in |
| Compatible Diameter, maximum | 12.192 mm / 0.48 in |
| Compatible Diameter, minimum | 6.223 mm / 0.245 in |
| Nominal Size | 1/2 in / 1/4 in / 3/8 in |
| Waveguide Size | WR28 / WG22 / R320 / WR42 / WG20 / R220 |
Electrical Specifications
| Current Handling | Tested to withstand 100,000 amps peak current surge |
|---|---|
| Current Handling Test Method | MIL-STD-1757 |
| Grounding, Bonding and Shielding Test Method | MIL-STD-188-124A |
| Lightning Protection Test Method | IEC 1024-1 |
Material Specifications
| Rivet Material | Tinned copper |
|---|
Environmental Specifications
| Operating Temperature | -40 °C to +85 °C (-40 °F to +185 °F) |
|---|---|
| Storage Temperature | -40 °C to +80 °C (-40 °F to +176 °F) |
| Blowing Rain Test Method | MIL-STD-810, Method 506 |
| Corrosion Test Method | MIL-STD-1344, Method 1001 |
| Freezing Rain/Icing Test Method | MIL-STD-810, Method 521 |
| Humidity Test Method | MIL-STD-1344, Method 1002 |
| Immersion Test Method | IEC 60529:2001, IP68 |
| UV Resistance Test Method | MIL-STD-810, Method 505 |
| Vibration Test Method | MIL-STD-202, Method 214 |
| Weatherproofing Method | Butyl and electric tape |
Packaging and Weights
| Height, packed | 269.24 mm / 10.6 in |
|---|---|
| Width, packed | 58.42 mm / 2.3 in |
| Length, packed | 203.2 mm / 8 in |
| Included | Grounding kit / Hardware / Lug / One roll of 2 in PVC tape / One roll of 24 in butyl rubber tape |
| Packaging quantity | 1 |
| Weight, gross | 0.49 kg / 1.08 lb |
Regulatory Compliance/Certifications
| ISO 9001:2015 | Designed, manufactured and/or distributed under this quality management system |
|---|
Documents and Downloads
Documents and Downloads
- Grounding Kits for HELIAX Ellliptical Waveguide and Coaxial Cable
- Statement of Compliance RoHS/REACH
- Accessories for HELIAX Products
- 242948 Product specifications (Comprehensive)
- Customer and Technical Support, Training, Software/Firmware, Repair Services
- Installation Accessories Part Number Cross Reference – MTS to Andrew
- CommScope Limited Product Warranty
