Brand: CommScope
|
SKU:
464295

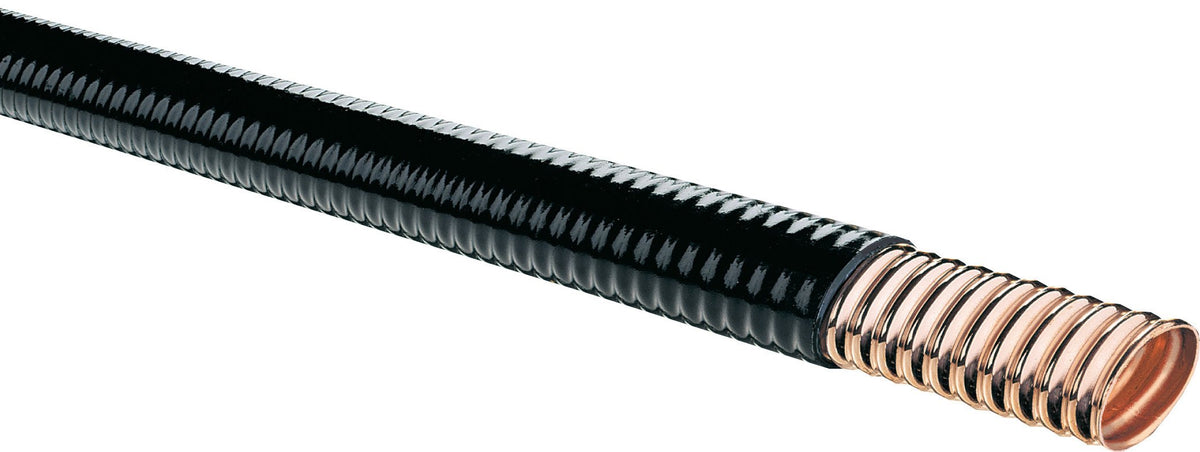

Commscope 35409-15 | Ew127A, Heliax Standard Elliptical Waveguide, 11.7–13.25 Ghz, Black Non-Halogenated, Fire Retardant Polyolefin Jacket
Regular price
$35.24
Unit price
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Commscope 35409-15 | Ew127A, Heliax Standard Elliptical Waveguide, ...
Regular price
$35.24
Unit price
Brand: CommScope
|
SKU:
464295
Regular price
$35.24
Unit price
Description
Description
Commscope 35409-15 | Ew127A, Heliax Standard Elliptical Waveguide, 11.7–13.25 Ghz, Black Non-Halogenated, Fire Retardant Polyolefin Jacket
Specifications
Specifications
Commscope - 35409-15 - Product Categories
- Antennas
- Microwave Antennas & Accessories
- Elliptical Waveguides
Commscope - 35409-15 - Specifications
| Brand Name | Hoffman |
|---|---|
| Manufacturer Part Number | 35409-15 |
| Item Description | Ew127A, Heliax Standard Elliptical Waveguide, 11.7–13.25 Ghz, Black Non-Halogenated, Fire Retardant Polyolefin Jacket |
| Product Classification | - |
| Product Type | Standard elliptical waveguide |
| Product Brand | HELIAX |
| Product Series | Standard |
| General Specifications | - |
| Jacket Color | Black |
| Performance Note | Values typical, unless otherwise stated |
| Dimensions | - |
| Diameter Over Jacket (E Plane) | 28.2 mm | 1.11 in |
| Diameter Over Jacket (H Plane) | 17.1 mm | 0.673 in |
| Cable Volume | 251 L/km | 2.702 ft³/kft |
| Material Specifications | - |
| Minimum Bend Radius, Multiple Bends (E Plane) | 150 mm | 5.906 in |
| Minimum Bend Radius, Multiple Bends (H Plane) | 380 mm | 14.961 in |
| Minimum Bend Radius, Single Bend (E Plane) | 130 mm | 5.118 in |
| Minimum Bend Radius, Single Bend (H Plane) | 280 mm | 11.024 in |
| Mechanical Specifications | - |
| Installation temperature,Operating Temperature,Storage Temperature,Attenuation, Ambient Temperature,Average Power, Ambient Temperature,Average Power, Temperature Rise,Fire Retardancy Test Method,Toxicity Index Test Method | -25 °C to +60 °C (-13 °F to +140 °F),-30 °C to +80 °C (-22 °F to +176 °F),-30 °C to +80 °C (-22 °F to +176 °F),23.889 °C | 75 °F,40 °C | 104 °F,42 °F | 107.6 °F,UL 1666/CATVR/CMR,IEC 60754-2 |
| Environmental Specifications | - |
| Cable weight | 0.43 kg/m | 0.289 lb/ft |
| Regulatory Compliance/Certifications | - |
| ISO 9001:2015 | Designed, manufactured and/or distributed under this quality management system |
| ROHS | Compliant |
