Brand: CommScope
|
SKU:
464298

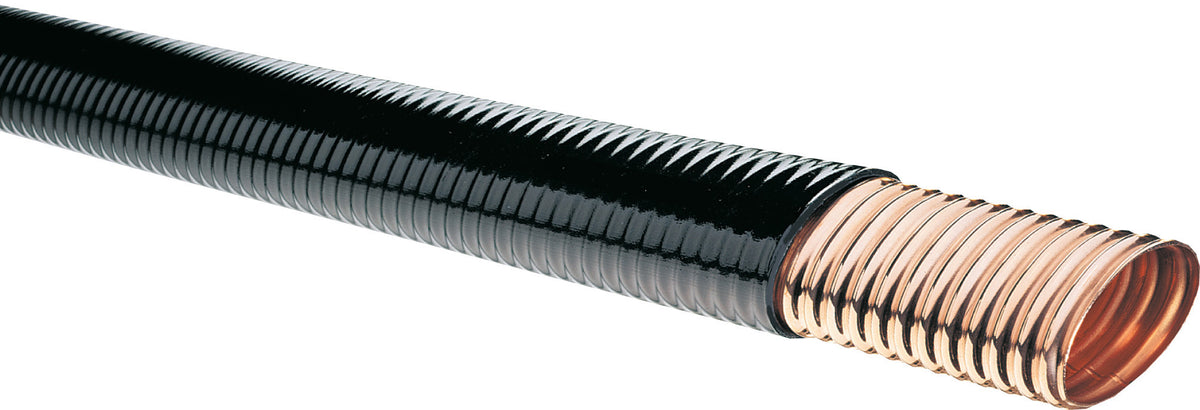

Commscope 35409-18 | Ewp63S, Heliax Super Premium Elliptical Waveguide, 6.425–7.125 Ghz, Black Non-Halogenated, Fire Retardant Polyolefin Jacket
Regular price
$40.47
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Commscope 35409-18 | Ewp63S, Heliax Super Premium Elliptical Wavegu...
Regular price
$40.47
Unit price
Description
Description
Commscope 35409-18 | Ewp63S, Heliax Super Premium Elliptical Waveguide, 6.425–7.125 Ghz, Black Non-Halogenated, Fire Retardant Polyolefin Jacket
Specifications
Specifications
Commscope - 35409-18 - Product Categories
- Antennas
- Microwave Antennas & Accessories
- Elliptical Waveguides
Commscope - 35409-18 - Specifications
| Brand Name | Hoffman |
|---|---|
| Manufacturer Part Number | 35409-18 |
| Item Description | Ewp63S, Heliax Super Premium Elliptical Waveguide, 6.425–7.125 Ghz, Black Non-Halogenated, Fire Retardant Polyolefin Jacket |
| Product Classification | - |
| Product Type | Super premium elliptical waveguide |
| Product Brand | HELIAX |
| Product Series | Super Premium |
| General Specifications | - |
| Jacket Color | Black |
| Performance Note | Values typical, unless otherwise stated |
| Dimensions | - |
| Diameter Over Jacket (E Plane) | 51.1 mm | 2.012 in |
| Diameter Over Jacket (H Plane) | 29.5 mm | 1.161 in |
| Cable Volume | 855 L/km | 9.203 ft³/kft |
| Material Specifications | - |
| Minimum Bend Radius, Multiple Bends (E Plane) | 260 mm | 10.236 in |
| Minimum Bend Radius, Multiple Bends (H Plane) | 740 mm | 29.134 in |
| Minimum Bend Radius, Single Bend (E Plane) | 180 mm | 7.087 in |
| Minimum Bend Radius, Single Bend (H Plane) | 510 mm | 20.079 in |
| Mechanical Specifications | - |
| Installation temperature,Operating Temperature,Storage Temperature,Attenuation, Ambient Temperature,Average Power, Ambient Temperature,Average Power, Temperature Rise,Fire Retardancy Test Method,Toxicity Index Test Method | -25 °C to +60 °C (-13 °F to +140 °F),-30 °C to +80 °C (-22 °F to +176 °F),-30 °C to +80 °C (-22 °F to +176 °F),23.889 °C | 75 °F,40 °C | 104 °F,42 °F | 107.6 °F,UL 1666/CATVR/CMR,IEC 60754-2 |
| Environmental Specifications | - |
| Cable weight | 0.76 kg/m | 0.511 lb/ft |
| Regulatory Compliance/Certifications | - |
| ISO 9001:2015 | Designed, manufactured and/or distributed under this quality management system |
| UL/ETL Certification | CATVR/CMR |
