Brand: CommScope
|
SKU:
464300

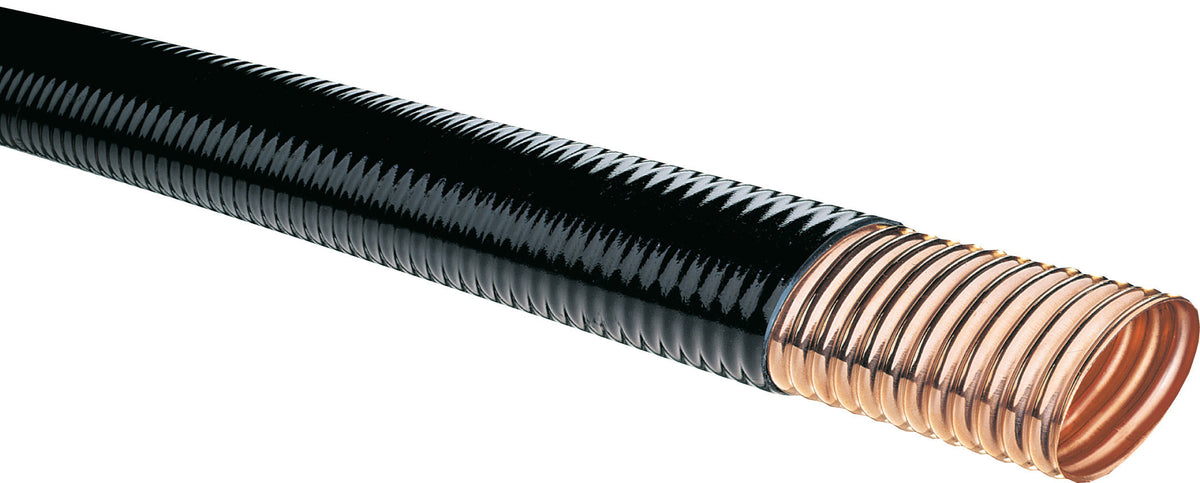

Commscope 35409-20 | Ewp52-59, Heliax Premium Elliptical Waveguide, 5.925–6.425 Ghz, Black Non-Halogenated, Fire Retardant Polyolefin Jacket
Regular price
$46.99
Unit price
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Commscope 35409-20 | Ewp52-59, Heliax Premium Elliptical Waveguide,...
Regular price
$46.99
Unit price
Brand: CommScope
|
SKU:
464300
Regular price
$46.99
Unit price
Description
Description
Commscope 35409-20 | Ewp52-59, Heliax Premium Elliptical Waveguide, 5.925–6.425 Ghz, Black Non-Halogenated, Fire Retardant Polyolefin Jacket
Specifications
Specifications
Commscope - 35409-20 - Product Categories
- Antennas
- Microwave Antennas & Accessories
- Elliptical Waveguides
Commscope - 35409-20 - Specifications
| Brand Name | Hoffman |
|---|---|
| Manufacturer Part Number | 35409-20 |
| Item Description | Ewp52-59, Heliax Premium Elliptical Waveguide, 5.925–6.425 Ghz, Black Non-Halogenated, Fire Retardant Polyolefin Jacket |
| Product Classification | - |
| Product Type | Premium elliptical waveguide |
| Product Brand | HELIAX |
| Product Series | Premium |
| General Specifications | - |
| Jacket Color | Black |
| Performance Note | Values typical, unless otherwise stated |
| Dimensions | - |
| Diameter Over Jacket (E Plane) | 57.2 mm | 2.252 in |
| Diameter Over Jacket (H Plane) | 33.3 mm | 1.311 in |
| Cable Volume | 1045 L/km | 11.248 ft³/kft |
| Material Specifications | - |
| Minimum Bend Radius, Multiple Bends (E Plane) | 305 mm | 12.008 in |
| Minimum Bend Radius, Multiple Bends (H Plane) | 810 mm | 31.89 in |
| Minimum Bend Radius, Single Bend (E Plane) | 200 mm | 7.874 in |
| Minimum Bend Radius, Single Bend (H Plane) | 560 mm | 22.047 in |
| Mechanical Specifications | - |
| Installation temperature,Operating Temperature,Storage Temperature,Attenuation, Ambient Temperature,Average Power, Ambient Temperature,Average Power, Temperature Rise,Fire Retardancy Test Method,Toxicity Index Test Method | -25 °C to +60 °C (-13 °F to +140 °F),-30 °C to +80 °C (-22 °F to +176 °F),-30 °C to +80 °C (-22 °F to +176 °F),23.889 °C | 75 °F,40 °C | 104 °F,42 °F | 107.6 °F,UL 1666/CATVR/CMR,IEC 60754-2 |
| Environmental Specifications | - |
| Cable weight | 0.88 kg/m | 0.591 lb/ft |
| Regulatory Compliance/Certifications | - |
| ISO 9001:2015 | Designed, manufactured and/or distributed under this quality management system |
| UL/ETL Certification | CATVR/CMR |
