Commscope APG-BNFNF-090 | Arrestor Plus Gas Tube Surge Arrestor (90 V), 45–2170 MHz, with interface types N Female Bulkhead and N Female
Regular price
$123.11
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Commscope APG-BNFNF-090 | Arrestor Plus Gas Tube Surge Arrestor (90...
Regular price
$123.11
Unit price
Description
Description

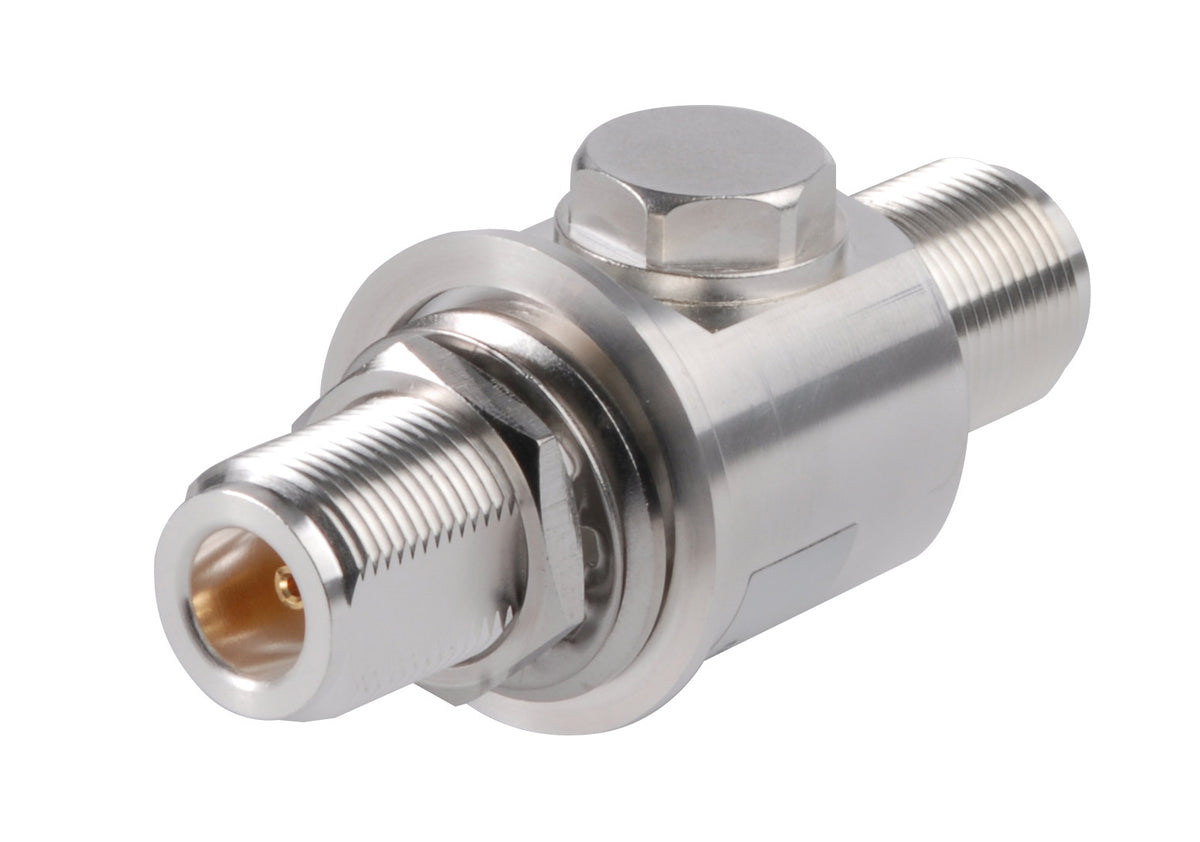

Commscope APG-BNFNF-090 | Arrestor Plus Gas Tube Surge Arrestor (90 V), 45–2170 MHz, with interface types N Female Bulkhead and N Female
Specifications
Specifications
Outline Drawing
| Click on image to enlarge. |
|---|
Product Classification
| Product Type | Surge arrestor |
|---|---|
| Ordering Note | CommScope non-standard product |
General Specifications
| Device Type | dc Pass |
|---|---|
| Body Style | Bulkhead |
| Inner Contact Plating | Gold |
| Interface | N Female Bulkhead |
| Interface 2 | N Female |
| Outer Contact Plating | Silver |
| Pressurizable | No |
Dimensions
| Height | 30.99 mm / 1.22 in |
|---|---|
| Width | 30.99 mm / 1.22 in |
| Length | 68.07 mm / 2.68 in |
Electrical Specifications
| Insertion Loss, typical | 0.2 dB |
|---|---|
| Average Power | 30 W |
| Connector Impedance | 50 ohm |
| Gas Tube Voltage | 90 V |
| Lightning Surge Current | 20 kA |
| Lightning Surge Current Waveform | 8/20 waveform |
| Operating Frequency Band | 45 – 1000 MHz / 1000 – 2000 MHz / 2000 – 2170 MHz |
Mechanical Specifications
| Attachment Durability | 25 cycles |
|---|---|
| Interface Durability | 500 cycles |
| Interface Durability Method | IEC 61169-16:9.5 |
| Mechanical Shock Test Method | MIL-STD-202F, Method 213B, Test Condition C |
Environmental Specifications
| Operating Temperature | -40 °C to +100 °C (-40 °F to +212 °F) |
|---|---|
| Storage Temperature | -40 °C to +100 °C (-40 °F to +212 °F) |
| Attenuation, Ambient Temperature | 20 °C / 68 °F |
| Average Power, Ambient Temperature | 40 °C / 104 °F |
| Corrosion Test Method | MIL-STD-202, Method 101, Test Condition B |
| Immersion Depth | 1 m |
| Immersion Test Mating | Mated |
| Immersion Test Method | IEC 60529:2001, IP68 |
| Moisture Resistance Test Method | MIL-STD-202, Method 106 |
| Thermal Shock Test Method | MIL-STD-202, Method 107, Test Condition A-1, Low Temperature -55 °C |
| Vibration Test Method | GR 2846-CORE |
| Water Jetting Test Mating | Mated |
| Water Jetting Test Method | IEC 60529:2001, IP66 |
Packaging and Weights
| Weight, net | 0.141 kg / 0.31 lb |
|---|
Regulatory Compliance/Certifications
| ISO 9001:2015 | Designed, manufactured and/or distributed under this quality management system |
|---|---|
| ROHS | Compliant |
| CHINA-ROHS | Below maximum concentration value |
| REACH-SVHC | Compliant as per SVHC revision on www.commscope.com/ProductCompliance |
