Brand: CommScope
|
SKU:
518473

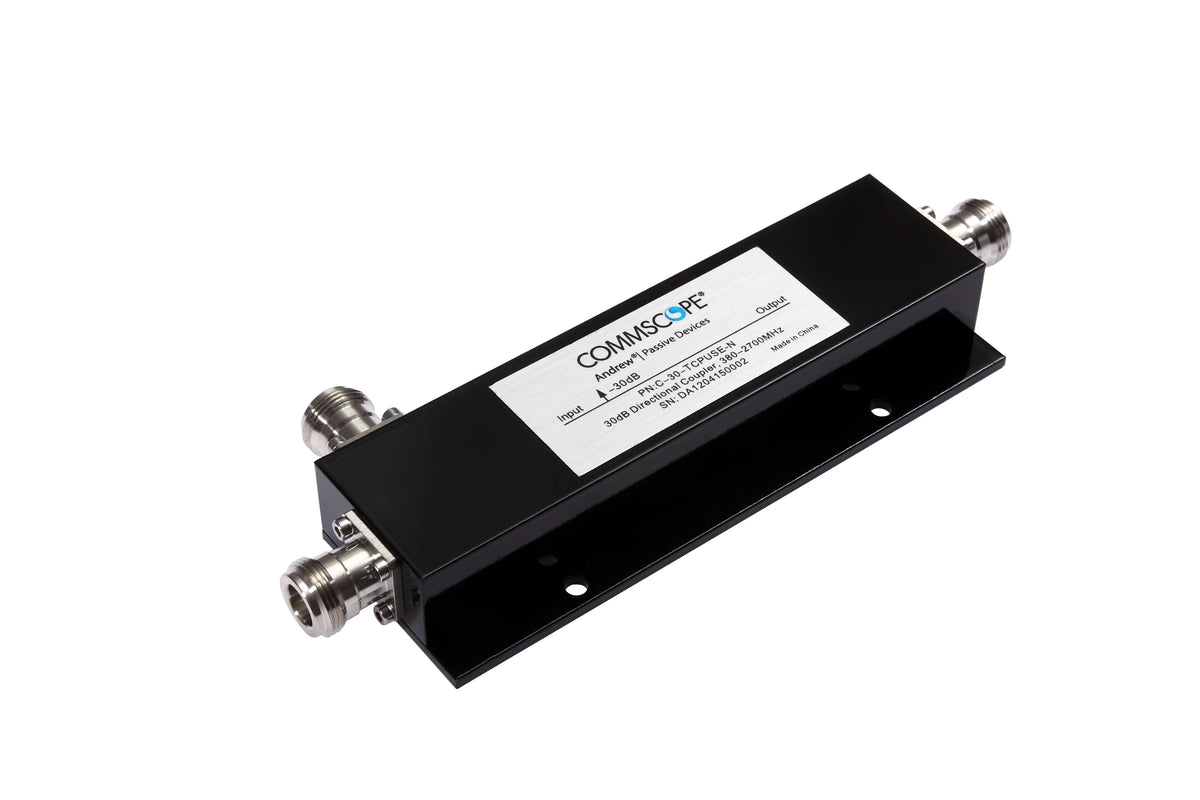

Commscope C-30-TCPUSE-N | 30 dB, Directional Coupler, 380–2700 MHz
Regular price
$211.16
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Commscope C-30-TCPUSE-N | 30 dB, Directional Coupler, 380–2700 MHz
Regular price
$211.16
Unit price
Description
Description
Commscope C-30-TCPUSE-N | 30 dB, Directional Coupler, 380–2700 MHz
Specifications
Specifications
Product Classification
| Regional Availability | Asia / Australia/New Zealand / EMEA / Latin America / North America |
|---|---|
| Product Type | Directional coupler |
General Specifications
| Device Type | Coupler |
|---|---|
| Application | Indoor/Outdoor |
| Color | Black |
| Inner Contact Plating | Silver |
| Interface | N Female |
| Outer Contact Plating | Trimetal |
Dimensions
| Height | 23 mm / 0.906 in |
|---|---|
| Width | 65 mm / 2.559 in |
| Length | 180 mm / 7.087 in |
Electrical Specifications
| 3rd Order IMD | -140 dBc |
|---|---|
| 3rd Order IMD Test Method | Two +43 dBm carriers |
| Insertion Loss at Frequency Band | 0.2 dB/380–2700 MHz |
Environmental Specifications
| Operating Temperature | -25 °C to +85 °C (-13 °F to +185 °F) |
|---|---|
| Relative Humidity | Up to 100% |
| Ingress Protection Test Method | IEC 60529:2001, IP65 |
Packaging and Weights
| Height, packed | 40 mm / 1.575 in |
|---|---|
| Width, packed | 88 mm / 3.465 in |
| Length, packed | 195 mm / 7.677 in |
| Volume | 686.4 cc / 41.887 in³ |
| Weight, gross | 0.44 kg / 0.97 lb |
| Weight, net | 0.4 kg / 0.882 lb |
Regulatory Compliance/Certifications
| ISO 9001:2015 | Designed, manufactured and/or distributed under this quality management system |
|---|
