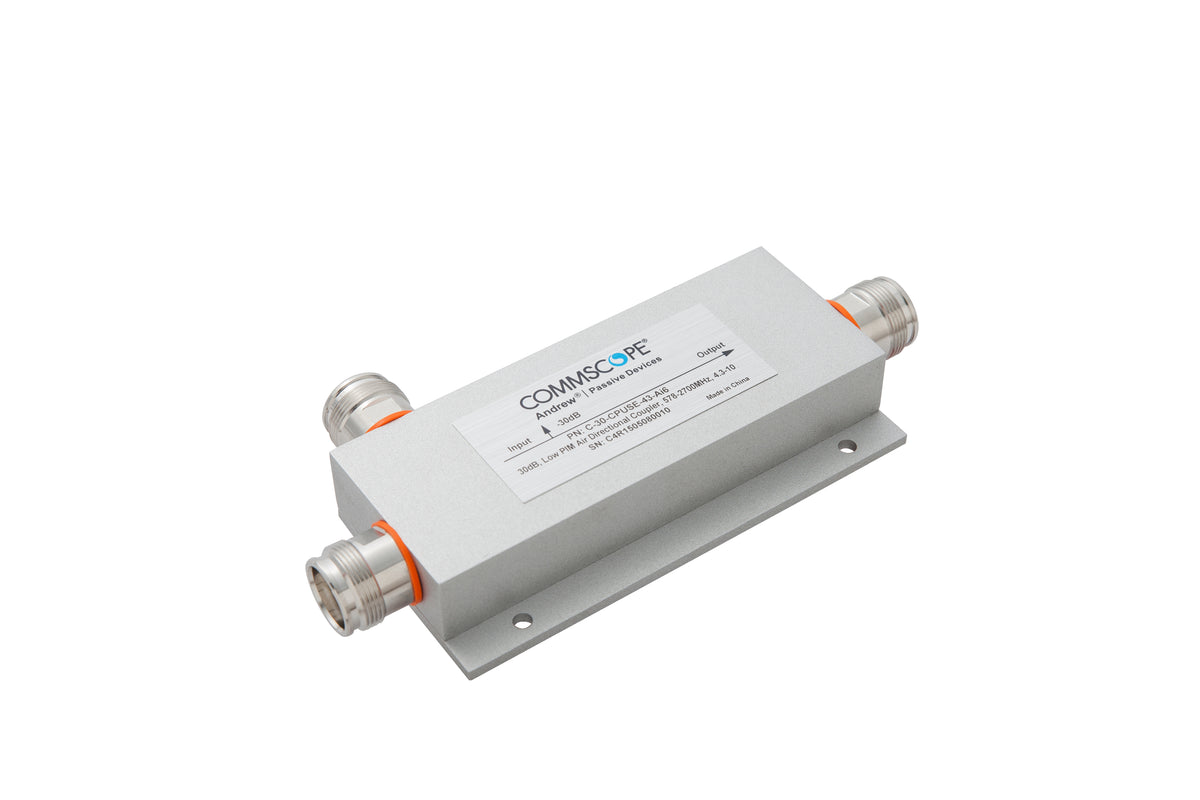

Commscope C30CPUSE43AI6 | 30 dB, Low PIM Air Directional Coupler, 5...
Regular price
$170.30
Unit price
Brand: CommScope
|
SKU:
709749
Regular price
$170.30
Unit price
Description
Description
Commscope C30CPUSE43AI6 | 30 dB, Low PIM Air Directional Coupler, 555–2700 MHz
Specifications
Specifications
Product Classification
| Regional Availability | Asia / Australia/New Zealand / EMEA / Latin America / North America |
|---|---|
| Product Type | Directional coupler |
General Specifications
| Device Type | Coupler |
|---|---|
| Application | Indoor/Outdoor |
| Color | Silver |
| Inner Contact Plating | Silver |
| Interface | 4.3-10 Female |
| Outer Contact Plating | Trimetal |
Dimensions
| Height | 22 mm / 0.866 in |
|---|---|
| Width | 75 mm / 2.953 in |
| Length | 158 mm / 6.22 in |
Electrical Specifications
| 3rd Order IMD | -162 dBc |
|---|---|
| 3rd Order IMD Test Method | Two +43 dBm carriers |
| Insertion Loss at Frequency Band | 0.2 dB/575–2700 MHz |
| Return Loss, minimum | 20.8 dB |
| Average Power, maximum | 300 W |
| Coupling | 30 dB |
| Coupling Tolerance | ±1.2dB/575–2700 MHz / ±1.5dB/555–575 MHz |
| Impedance | 50 ohm |
| Isolation at Frequency Band | 50 dB/555–2700 MHz |
| Operating Frequency Band | 555 – 2700 MHz |
| Peak Power, maximum | 1 kW |
| Reflected Power, maximum | 200 W |
| VSWR | 1.2 |
Mechanical Specifications
| Coupling Nut Proof Torque | 7 N-m / 61.955 in lb |
|---|
Environmental Specifications
| Operating Temperature | -35 °C to +85 °C (-31 °F to +185 °F) |
|---|---|
| Relative Humidity | Up to 100% |
| Ingress Protection Test Method | IEC 60529:2001, IP65 |
Packaging and Weights
| Height, packed | 45 mm / 1.772 in |
|---|---|
| Width, packed | 98 mm / 3.858 in |
| Length, packed | 180 mm / 7.087 in |
| Weight, gross | 0.43 kg / 0.948 lb |
| Weight, net | 0.38 kg / 0.838 lb |
Regulatory Compliance/Certifications
| ISO 9001:2015 | Designed, manufactured and/or distributed under this quality management system |
|---|---|
| ROHS | Compliant |
| CHINA-ROHS | Below maximum concentration value |
| REACH-SVHC | Compliant as per SVHC revision on www.commscope.com/ProductCompliance |
