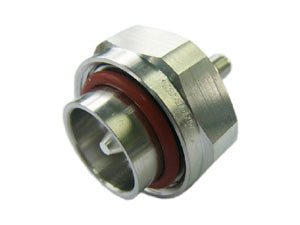

Commscope CA-SFDM | SMA Female to 7/16 DIN Male Adapter
Regular price
$24.29
Unit price
Brand: CommScope
|
SKU:
465135
Regular price
$24.29
Unit price
Description
Description
Commscope CA-SFDM | SMA Female to 7/16 DIN Male Adapter
Specifications
Specifications
Outline Drawing
| Click on image to enlarge. |
|---|
Product Classification
| Product Type | Adapter |
|---|
General Specifications
| Body Style | Straight |
|---|---|
| Inner Contact Plating | Silver |
| Interface | SMA Female |
| Interface 2 | 7-16 DIN Male |
| Outer Contact Plating | Trimetal |
Dimensions
| Length | 41.23 mm / 1.623 in |
|---|---|
| Diameter | 34.6 mm / 1.362 in |
Electrical Specifications
| Connector Impedance | 50 ohm |
|---|---|
| dc Test Voltage | 1000 V |
| Inner Contact Resistance, maximum | 3 mOhm |
| Insulation Resistance, minimum | 5000 mOhm |
| Operating Frequency Band | 0 – 6000 MHz |
| Outer Contact Resistance, maximum | 2.5 mOhm |
| RF Operating Voltage, maximum (vrms) | 500 V |
Mechanical Specifications
| Coupling Nut Proof Torque | 50 N-m / 442.537 in lb |
|---|---|
| Coupling Nut Proof Torque Method | IEC 61169-4:9.3.6 |
| Coupling Nut Retention Force | 1000 N / 224.809 lbf |
| Coupling Nut Retention Force Method | IEC 61169-4:9.3.11 |
| Interface Durability | 500 cycles |
| Mechanical Shock Test Method | IEC 60068-2-27 |
Environmental Specifications
| Operating Temperature | -55 °C to +85 °C (-67 °F to +185 °F) |
|---|---|
| Storage Temperature | -65 °C to +125 °C (-85 °F to +257 °F) |
| Attenuation, Ambient Temperature | 20 °C / 68 °F |
| Average Power, Ambient Temperature | 40 °C / 104 °F |
| Average Power, Inner Conductor Temperature | 100 °C / 212 °F |
| Climatic Sequence Test Method | IEC 60068-1 |
| Corrosion Test Method | IEC 60068-2-11 |
| Damp Heat Steady State Test Method | IEC 60068-2-3 |
| Thermal Shock Test Method | IEC 60068-2-14 |
| Vibration Test Method | IEC 60068-2-6 |
Packaging and Weights
| Weight, net | 88.71 g / 0.196 lb |
|---|
Regulatory Compliance/Certifications
| ISO 9001:2015 | Designed, manufactured and/or distributed under this quality management system |
|---|
