Brand: CommScope
|
SKU:
949349

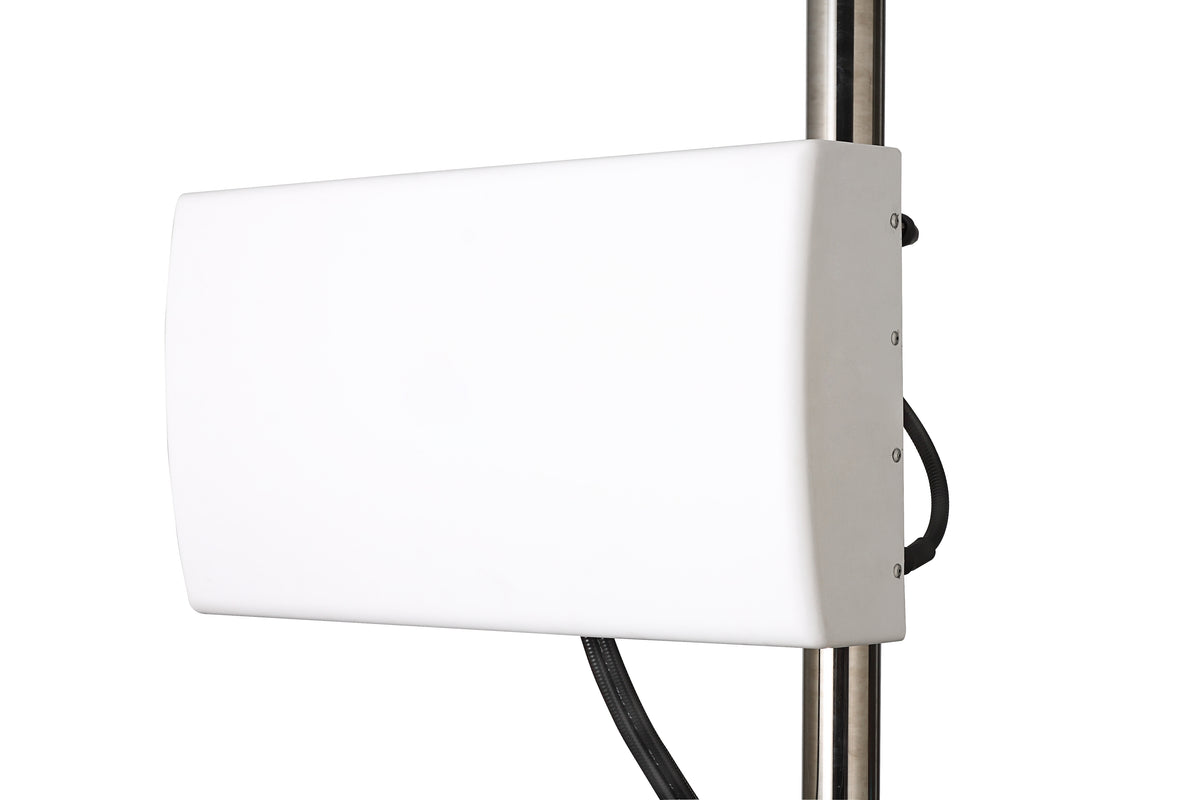

Commscope CMAX-DM30-CPUSEV53 | Cell-Max Low PIM Directional High Capacity Venue MIMO Antenna, 698–960 MHz and 1710–2700 MHz, 30-Deg
Regular price
$1,462.44
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Commscope CMAX-DM30-CPUSEV53 | Cell-Max Low PIM Directional High Ca...
Regular price
$1,462.44
Unit price
Description
Description
Commscope CMAX-DM30-CPUSEV53 | Cell-Max Low PIM Directional High Capacity Venue MIMO Antenna, 698–960 MHz and 1710–2700 MHz, 30-Deg
Specifications
Specifications
Product Classification
| Product Type | Over-the-head stadium antenna |
|---|---|
| Product Brand | Cell-Max |
General Specifications
| Application | Indoor/Outdoor |
|---|---|
| Antenna Type | Directional |
| Antenna Array Characteristic | MIMO 2x2 |
| Polarization | ±45° |
| Color | White (RAL 9016) |
| Number of Ports | 2 |
| Radome Material | ABS, UV resistant |
| RF Connector Interface | 7-16 DIN Female |
Dimensions
| Width | 340.4 mm / 13.402 in |
|---|---|
| Depth | 127 mm / 5 in |
| Length | 609.6 mm / 24 in |
Electrical Specifications
| Impedance | 50 ohm |
|---|---|
| Lightning Protection | dc Ground |
Mechanical Specifications
| Wind Loading at Velocity, maximum | 154.2 lbf |
|---|---|
| 216 km/h / 686.0 N | 216 km/h |
| Wind Speed, maximum | 216 km/h / 134.216 mph |
Environmental Specifications
| Operating Temperature | -40 °C to +60 °C (-40 °F to +140 °F) |
|---|---|
| Relative Humidity | Up to 100% |
| Ingress Protection Test Method | IEC 60529:2001, IP65 |
| Vibration Test Method | ASTM D4169 / IEC 60068-2-6 |
Packaging and Weights
| Width, packed | 350 mm / 13.78 in |
|---|---|
| Depth, packed | 210 mm / 8.268 in |
| Length, packed | 890 mm / 35.039 in |
| Included | Mounting bracket |
| Packaging quantity | 1 |
| Weight, gross | 12.4 kg / 27.337 lb |
| Weight, net | 7 kg / 15.432 lb |
Regulatory Compliance/Certifications
| ROHS | Compliant |
|---|---|
| CHINA-ROHS | Below maximum concentration value |
| REACH-SVHC | Compliant as per SVHC revision on www.commscope.com/ProductCompliance |
Documents and Downloads
Documents and Downloads
- Installation Guide for CMAX-DM30/DM60/DM22S/DMH3030/DMW3030-xxx Antennas
- M0149APA Installation Guide for CMAX-DM30/DM60/DM22S/DMH3030/DMW3030-xxx Antennas
- Statement of Compliance RoHS/REACH
- CMAX-DM30-CPUSEV53 Product specifications
- Customer and Technical Support, Training, Software/Firmware, Repair Services
- Cell-Max Directional High Capacity Venue MIMO Antenna
- CommScope Limited Product Warranty
