Brand: CommScope
|
SKU:
810919

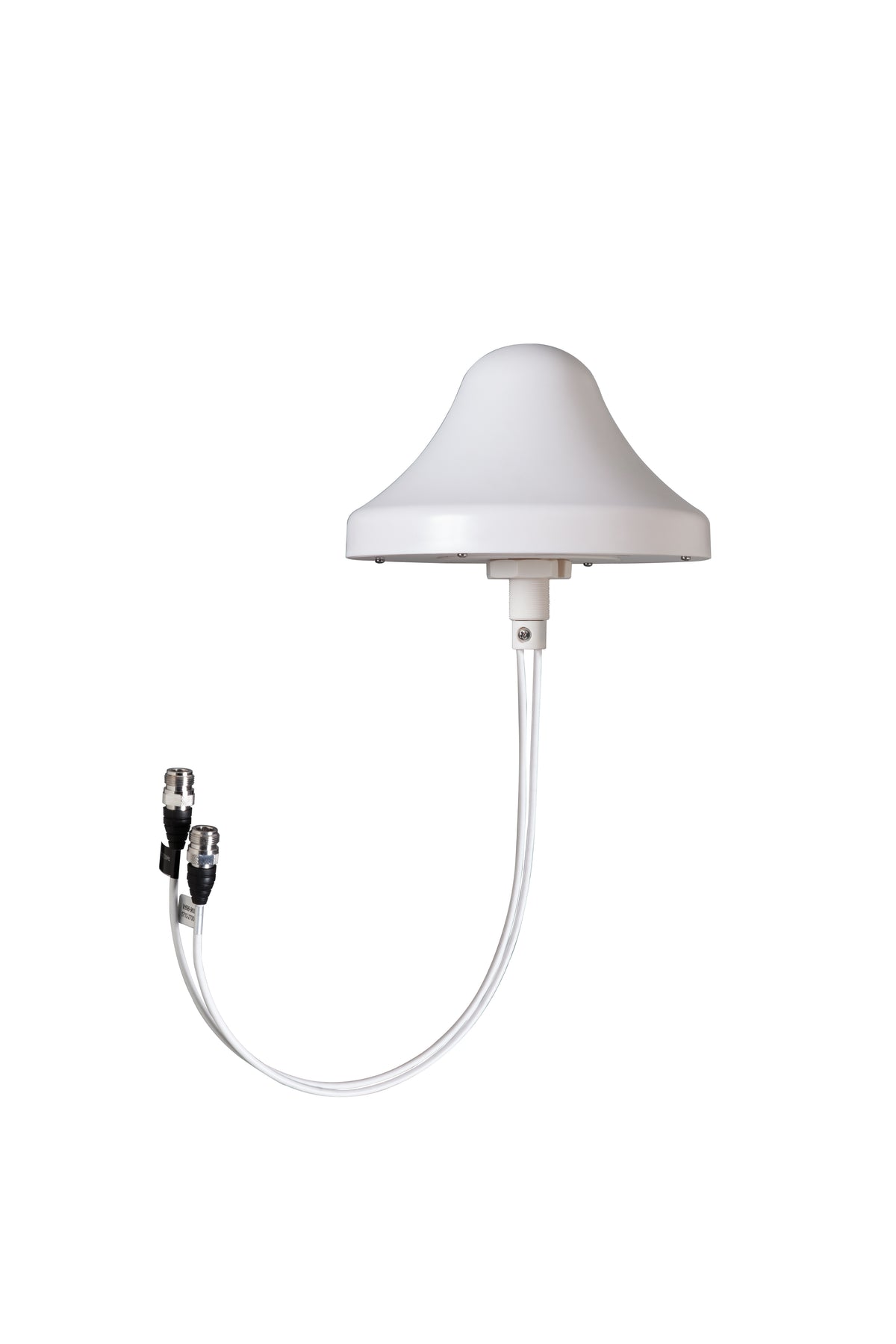

Commscope CMAX-OMH-43-I53 | Cell-Max Low PIM Omni MIMO In-building Antenna, V-POL PORT 698–960 / 1710–2700 MHz and H-POL PORT 1710–2700 MHz (LB-SISO), (HB-MIMO), 4.3-10
Regular price
$159.59
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Commscope CMAX-OMH-43-I53 | Cell-Max Low PIM Omni MIMO In-building ...
Regular price
$159.59
Unit price
Description
Description
Commscope CMAX-OMH-43-I53 | Cell-Max Low PIM Omni MIMO In-building Antenna, V-POL PORT 698–960 / 1710–2700 MHz and H-POL PORT 1710–2700 MHz (LB-SISO), (HB-MIMO), 4.3-10
Specifications
Specifications
Outline Drawing
| Click on image to enlarge. |
|---|
Product Classification
| Product Type | In-building antenna |
|---|---|
| Product Brand | Cell-Max |
General Specifications
| Application | Indoor |
|---|---|
| Antenna Type | Omni |
| Antenna Array Characteristic | MIMO 2x2 |
| Color | White (RAL 9016) |
| Mounting | Thru-hole ceiling mount (optional) |
| Number of Ports | 2 |
| Pigtail Cable | 670-141SXE, plenum rated |
| Radome Material | ABS |
| RF Connector Interface | 4.3-10 Female |
Dimensions
| Height | 119 mm / 4.685 in |
|---|---|
| Pigtail Length | 500 mm / 19.685 in |
| Outer Diameter | 204 mm / 8.031 in |
Electrical Specifications
| Impedance | 50 ohm |
|---|---|
| Operating Frequency Band | 698 – 960 MHz / 1710 – 2700 MHz |
Environmental Specifications
| Operating Temperature | -40 °C to +60 °C (-40 °F to +140 °F) |
|---|---|
| Relative Humidity | Up to 100% |
Packaging and Weights
| Height, packed | 185 mm / 7.283 in |
|---|---|
| Width, packed | 180 mm / 7.087 in |
| Length, packed | 180 mm / 7.087 in |
| Weight, gross | 0.6 kg / 1.323 lb |
| Weight, net | 0.5 kg / 1.102 lb |
Regulatory Compliance/Certifications
| ISO 9001:2015 | Designed, manufactured and/or distributed under this quality management system |
|---|---|
| ROHS | Compliant |
| CHINA-ROHS | Below maximum concentration value |
| REACH-SVHC | Compliant as per SVHC revision on www.commscope.com/ProductCompliance |
