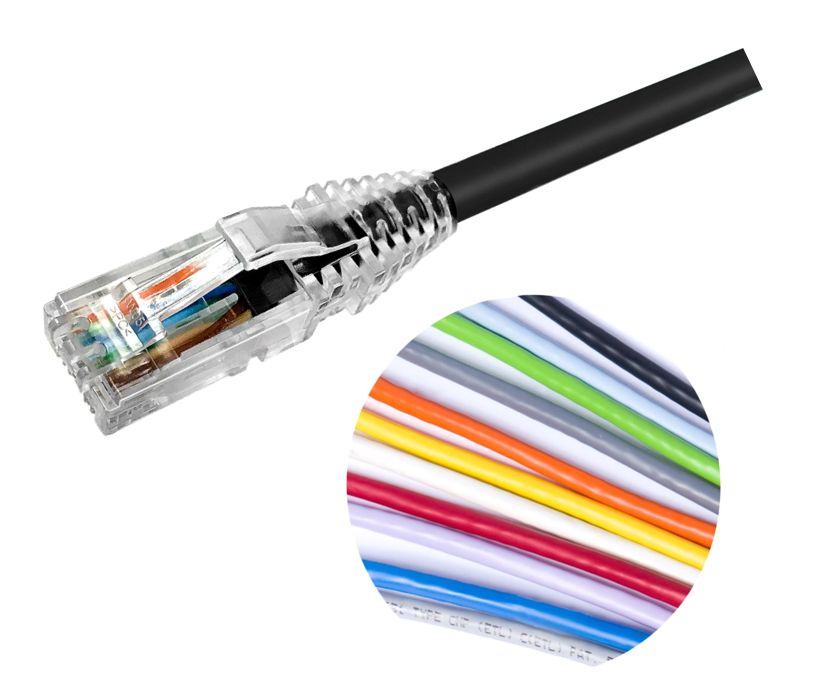

Commscope CO155D2-06F025 | Jacket Color - Orange | Cord Length - 25 Ft
Commscope CO155D2-06F025 | Jacket Color - Orange | Cord Length - 25 Ft

Commscope CO155D2-06F025 | Jacket Color - Orange | Cord Length - 25 Ft

Part Number: MM25-COM5E-08
0 Review(s)
Write a Review
Availability:
Email for Pricing
Retail Price:$18.63
  • Low prices.

    Price match guarantee

  • In-House Experts.

    We know our products

  • Easy Returns.

    Quick & Hassle Free

  • Superior Selection.

    Extensive product catalog

Commscope CO155D2-06F025 | Category 5e U/UTP Patch Cord, RJ45 to RJ45, 4-pair, Non-Plenum



https://www.alldataresource.com/assets/images_commscope/wiring.jpg

Wiring Diagram

Click on image to enlarge.Click on image to enlarge.



https://www.alldataresource.com/assets/images_commscope/product_classification.jpg

Product Classification

Regional AvailabilityAsia / Australia/New Zealand / Latin America / North America
PortfolioCommScope
Product TypeTwisted pair patch cord
Product SeriesCHD / CO
Ordering NoteCords < 1 m are valid elements for use in a channel or as an equipment interconnect but due to their limited length are not guaranteed to meet component compliance requirements that were developed to assess the quality of longer cords / Cords 1 m are authorized for use in channels and are an effective standalone method used to connect active devices



https://www.alldataresource.com/assets/images_commscope/specs.jpg

General Specifications

ANSI/TIA Category5e
Cable TypeU/UTP (unshielded)
Conductor TypeStranded
Interface, Connector ARJ45 plug
Interface Feature, connector AStandard
Interface, Connector BRJ45 plug
Interface Feature, connector BStandard
Jacket ColorBlack / Blue / Green / Orange / Red / Slate / White / Yellow
Pairs, quantity4
Transmission StandardsIEEE 802.3bt Type 4
WiringT568B



https://www.alldataresource.com/assets/images_commscope/dimensions.jpg

Dimensions

Cable Assembly Length Range (m)1 – 30
Cable Assembly Length Range (ft)1 – 100
Cable Assembly Length Range (cm)15 – 999
Cable Assembly Length Range (in)6 – 999
Diameter Over Jacket5.36 mm / 0.211 in



https://www.alldataresource.com/assets/images_commscope/specs.jpg

Electrical Specifications

dc Resistance, maximum0.3 ohm
Safety Voltage Rating300 V



https://www.alldataresource.com/assets/images_commscope/specs.jpg

Material Specifications

Contact Plating MaterialGold in remating area / Nickel underplating
Material TypePhosphor Bronze / Polycarbonate



https://www.alldataresource.com/assets/images_commscope/specs.jpg

Mechanical Specifications

Plug Insertion Life, minimum750 times
Plug Retention Force, minimum133 N / 29.9 lbf



https://www.alldataresource.com/assets/images_commscope/specs.jpg

Environmental Specifications

Operating Temperature-10 °C to +60 °C (+14 °F to +140 °F)
Environmental SpaceNon-plenum
Flammability RatingCM
Safety StandardETL / cETL



https://www.alldataresource.com/assets/images_commscope/packaging_weights.jpg

Packaging and Weights

Packaging quantity1



https://www.alldataresource.com/assets/images_commscope/regulatorycompliance.jpg

Regulatory Compliance/Certifications

ISO 9001:2015Designed, manufactured and/or distributed under this quality management system



https://www.alldataresource.com/assets/images_commscope/pdf.jpg

Documents and Downloads

Implementation considerations for cabling supporting remote poweringDownload and View
Statement of Compliance RoHS/REACHDownload and View
CO155D2 Product specifications (Comprehensive)Download and View
Use of CommScope cabling for PoE applicationsDownload and View
CommScope Extended System WarrantyDownload and View
CommScope Limited Product WarrantyDownload and View
