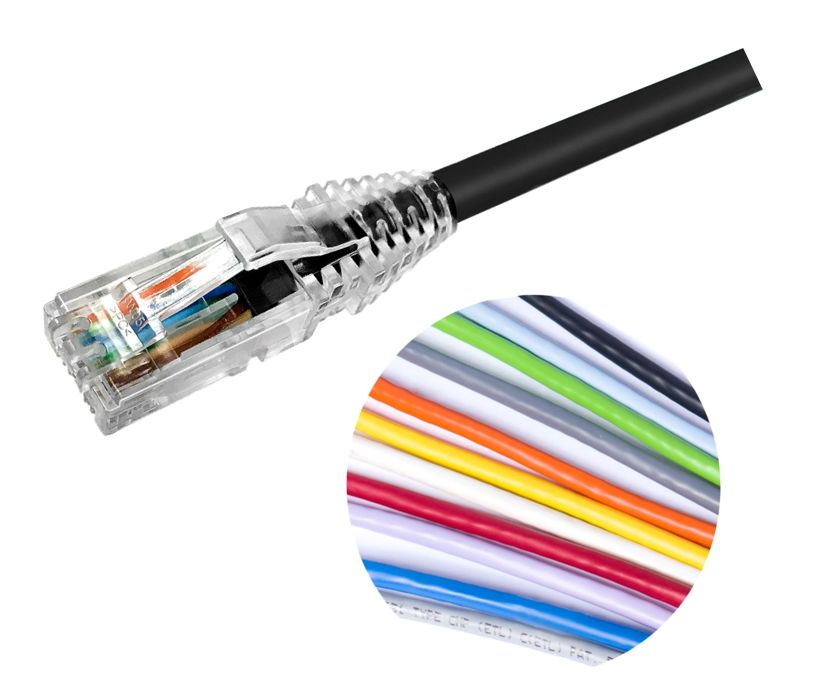

Commscope CO155D2-08F005 | Jacket Color - White | Cord Length - 5 Ft
Regular price
$10.81
Unit price
Brand: CommScope
|
SKU:
MM05-COM5E-01
Regular price
$10.81
Unit price
Description
Description
Commscope CO155D2-08F005 | Category 5e U/UTP Patch Cord, RJ45 to RJ45, 4-pair, Non-Plenum
Specifications
Specifications
Wiring Diagram
| Click on image to enlarge. |
|---|
Product Classification
| Regional Availability | Asia / Australia/New Zealand / Latin America / North America |
|---|---|
| Portfolio | CommScope |
| Product Type | Twisted pair patch cord |
| Product Series | CHD / CO |
| Ordering Note | Cords < 1 m are valid elements for use in a channel or as an equipment interconnect but due to their limited length are not guaranteed to meet component compliance requirements that were developed to assess the quality of longer cords / Cords 1 m are authorized for use in channels and are an effective standalone method used to connect active devices |
General Specifications
| ANSI/TIA Category | 5e |
|---|---|
| Cable Type | U/UTP (unshielded) |
| Conductor Type | Stranded |
| Interface, Connector A | RJ45 plug |
| Interface Feature, connector A | Standard |
| Interface, Connector B | RJ45 plug |
| Interface Feature, connector B | Standard |
| Jacket Color | Black / Blue / Green / Orange / Red / Slate / White / Yellow |
| Pairs, quantity | 4 |
| Transmission Standards | IEEE 802.3bt Type 4 |
| Wiring | T568B |
Dimensions
| Cable Assembly Length Range (m) | 1 – 30 |
|---|---|
| Cable Assembly Length Range (ft) | 1 – 100 |
| Cable Assembly Length Range (cm) | 15 – 999 |
| Cable Assembly Length Range (in) | 6 – 999 |
| Diameter Over Jacket | 5.36 mm / 0.211 in |
Electrical Specifications
| dc Resistance, maximum | 0.3 ohm |
|---|---|
| Safety Voltage Rating | 300 V |
Material Specifications
| Contact Plating Material | Gold in remating area / Nickel underplating |
|---|---|
| Material Type | Phosphor Bronze / Polycarbonate |
Mechanical Specifications
| Plug Insertion Life, minimum | 750 times |
|---|---|
| Plug Retention Force, minimum | 133 N / 29.9 lbf |
Environmental Specifications
| Operating Temperature | -10 °C to +60 °C (+14 °F to +140 °F) |
|---|---|
| Environmental Space | Non-plenum |
| Flammability Rating | CM |
| Safety Standard | ETL / cETL |
Packaging and Weights
| Packaging quantity | 1 |
|---|
Regulatory Compliance/Certifications
| ISO 9001:2015 | Designed, manufactured and/or distributed under this quality management system |
|---|
