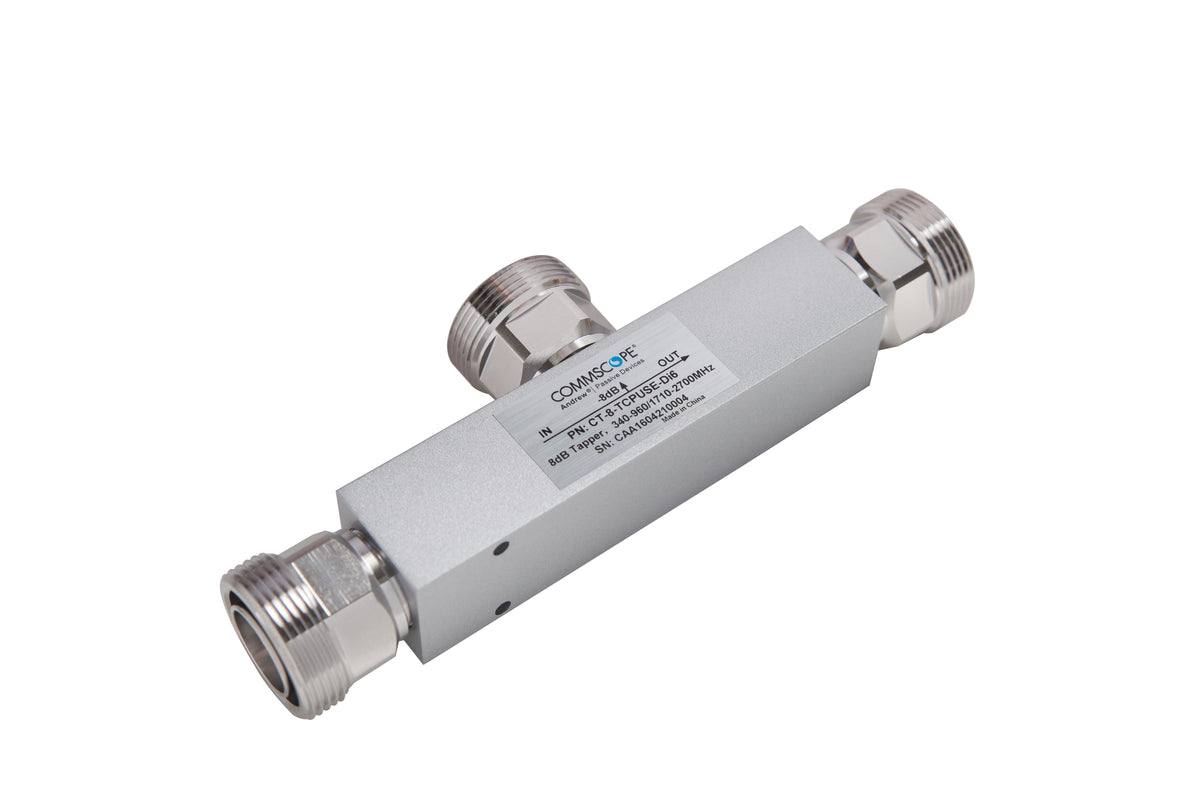

Commscope CT-8-TCPUSE-DI6 | 8 dB, Tapper, 340–960/1710-2700 MHz
Regular price
$148.61
Unit price
Brand: CommScope
|
SKU:
780994
Regular price
$148.61
Unit price
Description
Description
Commscope CT-8-TCPUSE-DI6 | 8 dB, Tapper, 340–960/1710-2700 MHz
Specifications
Specifications
Product Classification
| Regional Availability | Asia / Australia/New Zealand / EMEA / Latin America / North America |
|---|---|
| Product Type | Tapper |
General Specifications
| Device Type | Tapper |
|---|---|
| Application | Indoor/Outdoor |
| Color | Silver |
| Inner Contact Plating | Silver |
| Interface | 7-16 DIN Female |
| Outer Contact Plating | Trimetal |
Dimensions
| Height | 28.9 mm / 1.138 in |
|---|---|
| Width | 49.3 mm / 1.941 in |
| Length | 153.6 mm / 6.047 in |
Electrical Specifications
| 3rd Order IMD | -160 dBc |
|---|---|
| 3rd Order IMD Test Method | Two +43 dBm carriers |
| Return Loss, minimum | 19.1 dB |
| Average Power, maximum | 300 W |
| Coupling | 8 dB |
| Coupling Tolerance | ±0.8dB/1710–2700 MHz / ±0.8dB/698–960 MHz / ±1.2dB/340–698 MHz |
| Impedance | 50 ohm |
| Operating Frequency Band | 340 – 960 MHz / 1710 – 2700 MHz |
| Peak Power, maximum | 3 kW |
| Reflected Power, maximum | 200 W |
| VSWR | 1.25 |
Mechanical Specifications
| Coupling Nut Proof Torque | 25 N-m / 221.269 in lb |
|---|
Environmental Specifications
| Operating Temperature | -35 °C to +85 °C (-31 °F to +185 °F) |
|---|---|
| Relative Humidity | Up to 100% |
| Ingress Protection Test Method | IEC 60529:2001, IP65 |
Packaging and Weights
| Height, packed | 50 mm / 1.969 in |
|---|---|
| Width, packed | 95 mm / 3.74 in |
| Length, packed | 180 mm / 7.087 in |
| Volume | 855000 mm³ / 52.176 in³ |
| Weight, gross | 0.42 kg / 0.926 lb |
| Weight, net | 0.35 kg / 0.772 lb |
Regulatory Compliance/Certifications
| ISO 9001:2015 | Designed, manufactured and/or distributed under this quality management system |
|---|
