Brand: CommScope
|
SKU:
372-COMOS2-LTA-144
Commscope D144LA8WF12NS | TeraSPEED Single Jacket/Single Armor, Gel-Free, Outdoor Stranded Loose Tube Cable
Regular price
$3.61
Unit price
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Commscope D144LA8WF12NS | TeraSPEED Single Jacket/Single Armor, Gel...
Regular price
$3.61
Unit price
Brand: CommScope
|
SKU:
372-COMOS2-LTA-144
Regular price
$3.61
Unit price
Description
Description
Commscope D144LA8WF12NS | TeraSPEED Single Jacket/Single Armor, Gel-Free, Outdoor Stranded Loose Tube Cable
Features and Benefits
- Corrugated steel tape armor is strong yet flexible, providing additional crush and rodent protection
Specifications
Specifications

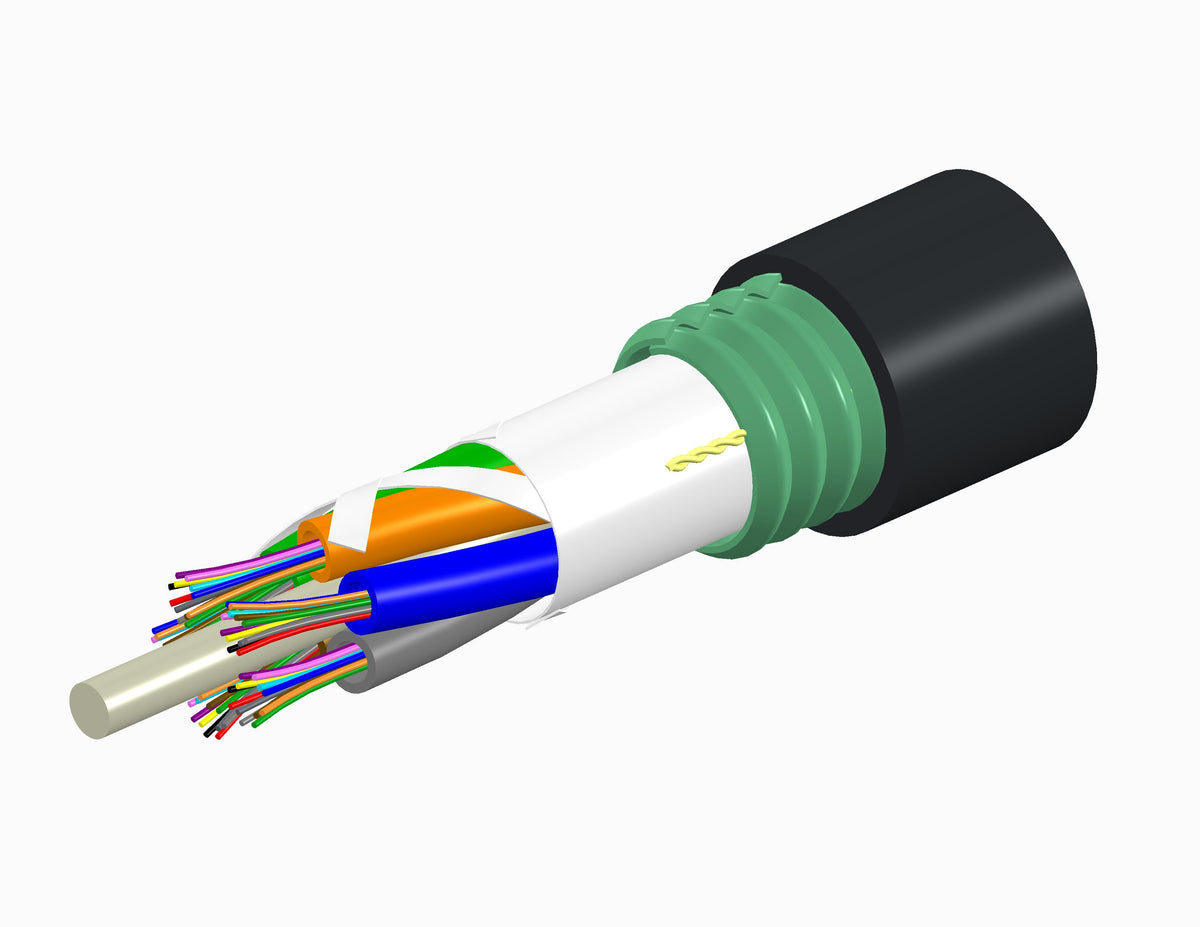

Representative Image
| Click on image to enlarge. |
|---|
Product Classification
| Regional Availability | Asia / Australia/New Zealand / EMEA / Latin America / North America |
|---|---|
| Portfolio | CommScope |
| Product Type | Fiber OSP cable |
General Specifications
| Armor Type | Corrugated steel |
|---|---|
| Cable Type | Stranded loose tube |
| Construction Type | Armored |
| Fiber Type, quantity | 144 |
| Fibers per Subunit, quantity | 12 |
| Jacket Color | Black |
| Subunit Type | Gel-free |
| Subunit, quantity | 12 |
| Total Fiber Count | 144 |
Dimensions
| Buffer Tube/Subunit Diameter | 2.5 mm / 0.098 in |
|---|---|
| Diameter Over Jacket | 17.1 mm / 0.673 in |
Material Specifications
| Jacket Material | PE |
|---|
Mechanical Specifications
| Minimum Bend Radius, loaded | 257 mm / 10.118 in |
|---|---|
| Minimum Bend Radius, unloaded | 171 mm / 6.732 in |
| Tensile Load, long term, maximum | 800 N / 179.847 lbf |
| Tensile Load, short term, maximum | 2700 N / 606.984 lbf |
| Compression | 44 N/mm / 251.246 lb/in |
| Compression Test Method | FOTP-41 / IEC 60794-1 E3 |
| Flex | 35 cycles |
| Flex Test Method | FOTP-104 / IEC 60794-1 E6 |
| Impact | 5.88 N-m / 52.042 in lb |
| Impact Test Method | FOTP-25 / IEC 60794-1 E4 |
| Strain | See long and short term tensile loads |
| Strain Test Method | FOTP-33 / IEC 60794-1 E1 |
| Twist | 10 cycles |
| Twist Test Method | FOTP-85 / IEC 60794-1 E7 |
| Vertical Rise, maximum | 349 m / 1145.013 ft |
Optical Specifications
| Fiber Type | G.652.D and G.657.A1 , TeraSPEED / G.652.D and G.657.A1, TeraSPEED / OS2 / OS2 |
|---|
Environmental Specifications
| Installation temperature | -30 °C to +70 °C (-22 °F to +158 °F) |
|---|---|
| Operating Temperature | -40 °C to +70 °C (-40 °F to +158 °F) |
| Storage Temperature | -40 °C to +75 °C (-40 °F to +167 °F) |
| Cable Qualification Standards | ANSI/ICEA S-87-640 / EN 187105 / Telcordia GR-20 |
| Environmental Space | Aerial, lashed / Buried |
| Jacket UV Resistance | UV stabilized |
| Water Penentration | 24 h |
| Water Penentration Test Method | FOTP-82 / IEC 60794-1 F5 |
Environmental Test Specifications
| Cable Freeze | -2 °C / 28.4 °F |
|---|---|
| Cable Freeze Test Method | FOTP-98 / IEC 60794-1 F15 |
| Heat Age | -40 °C to +85 °C (-40 °F to +185 °F) |
| Heat Age Test Method | IEC 60794-1 F9 |
| Low High Bend | -30 °C to +60 °C (-22 °F to +140 °F) |
| Low High Bend Test Method | FOTP-37 / IEC 60794-1 E11 |
| Temperature Cycle | -40 °C to +70 °C (-40 °F to +158 °F) |
| Temperature Cycle Test Method | FOTP-3 / IEC 60794-1 F1 |
Packaging and Weights
| Cable weight | 234 kg/km / 157.241 lb/kft |
|---|
Regulatory Compliance/Certifications
| ISO 9001:2015 | Designed, manufactured and/or distributed under this quality management system |
|---|---|
| ROHS | Compliant |
| CHINA-ROHS | Below maximum concentration value |
| REACH-SVHC | Compliant as per SVHC revision on www.commscope.com/ProductCompliance |
