Brand: CommScope
|
SKU:
465399

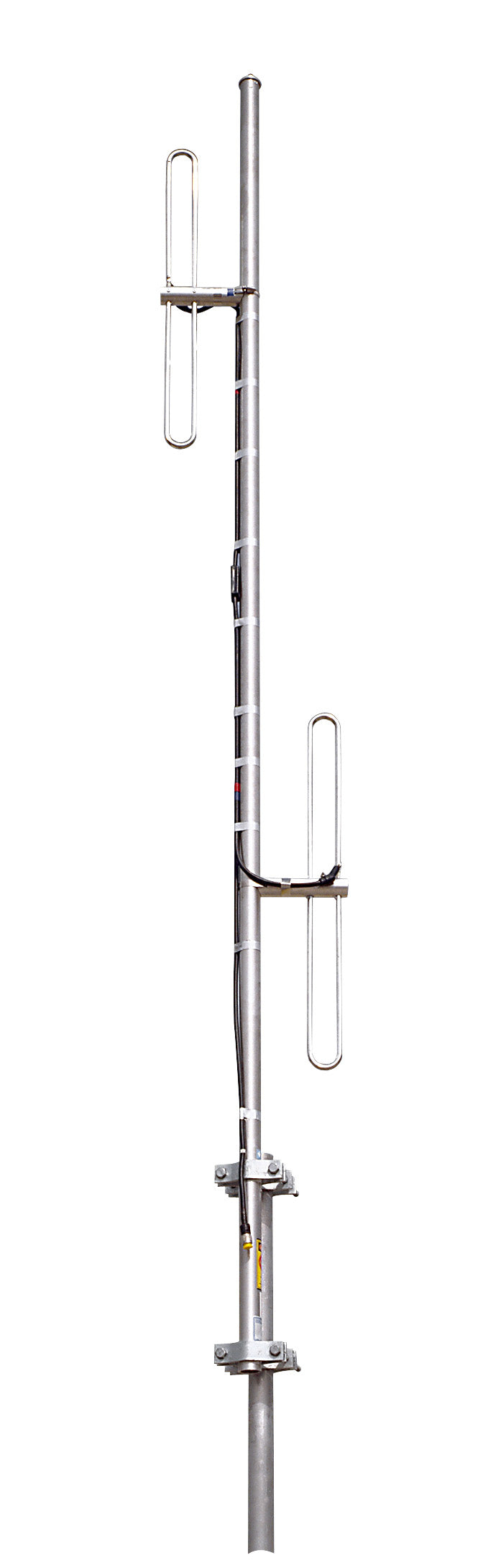

Commscope DB222-A | 1-port omni exposed dipole antenna, 150–158 MHz, 360° HPBW, fixed electrical tilt
Regular price
$1,215.08
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Commscope DB222-A | 1-port omni exposed dipole antenna, 150–158 MHz...
Regular price
$1,215.08
Unit price
Description
Description
Commscope DB222-A | 1-port omni exposed dipole antenna, 150–158 MHz, 360° HPBW, fixed electrical tilt
Features and Benefits
- Broad response
- Weather resistant
Specifications
Specifications
General Specifications
| Antenna Type | Omni |
|---|---|
| Band | Single band |
| Color | Silver |
| Grounding Type | RF connector inner conductor and body grounded to reflector and mounting bracket |
| Performance Note | Outdoor usage |
| Radiator Material | Aluminum |
| RF Connector Interface | N Male |
| RF Connector Location | Bottom |
| RF Connector Quantity, low band | 1 |
| RF Connector Quantity, total | 1 |
Dimensions
| Length | 3225.8 mm / 127 in |
|---|
Electrical Specifications
| Impedance | 50 ohm |
|---|---|
| Operating Frequency Band | 150 – 158 MHz |
| Polarization | Vertical |
Mechanical Specifications
| Wind Loading at Velocity, maximum | 284.7 N/100 mph / 64.0 lbf/100 mph |
|---|---|
| Wind Speed, maximum | 201 km/h / 124.896 mph |
Packaging and Weights
| Net Weight, without mounting kit | 7.2 kg / 15.873 lb |
|---|
Regulatory Compliance/Certifications
| ISO 9001:2015 | Designed, manufactured and/or distributed under this quality management system |
|---|
