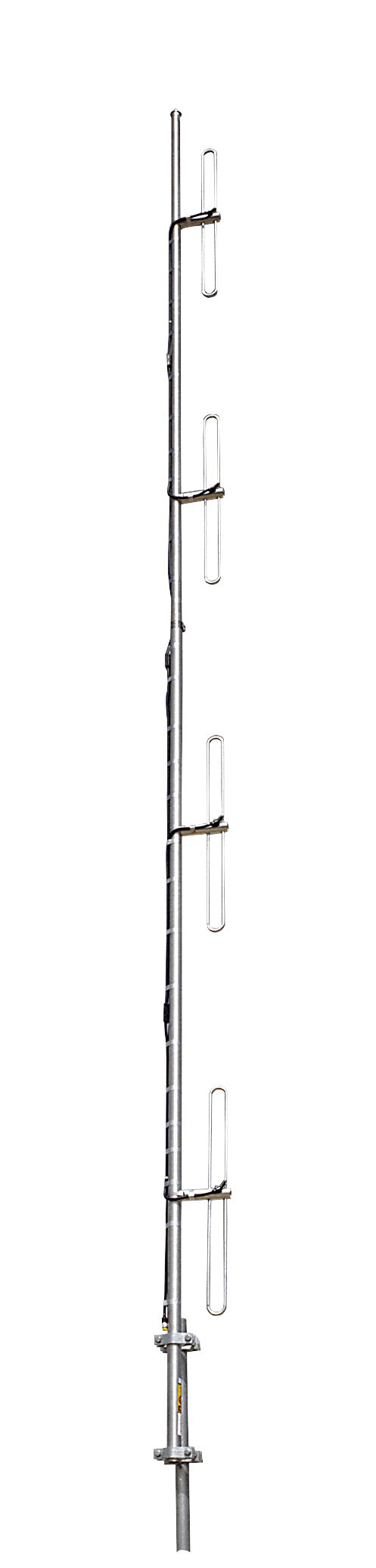

Commscope DB224-B | 1-port omni exposed dipole antenna, 155–165 MHz, 360° HPBW, fixed electrical tilt
Commscope DB224-B | 1-port omni exposed dipole antenna, 155–165 MHz, 360° HPBW, fixed electrical tilt

Commscope DB224-B | 1-port omni exposed dipole antenna, 155–165 MHz, 360° HPBW, fixed electrical tilt

Part Number: 465402
0 Review(s)
Write a Review
Availability:
$739.13
Retail Price:$800.51
Your Savings:$61.38(8%)
  • Low prices.

    Price match guarantee

  • In-House Experts.

    We know our products

  • Easy Returns.

    Quick & Hassle Free

  • Superior Selection.

    Extensive product catalog

Commscope DB224-B | 1-port omni exposed dipole antenna, 155–165 MHz, 360° HPBW, fixed electrical tilt


https://www.alldataresource.com/assets/images_commscope/features.jpg

Features and Benefits

  • Broad response
  • Two-piece mast for ease of shipping



https://www.alldataresource.com/assets/images_commscope/specs.jpg

General Specifications

Antenna TypeOmni
BandSingle band
ColorSilver
Grounding TypeRF connector inner conductor and body grounded to reflector and mounting bracket
Performance NoteOutdoor usage
Radiator MaterialAluminum
RF Connector InterfaceN Male
RF Connector LocationBottom
RF Connector Quantity, low band1
RF Connector Quantity, total1



https://www.alldataresource.com/assets/images_commscope/dimensions.jpg

Dimensions

Length6477 mm / 255 in



https://www.alldataresource.com/assets/images_commscope/specs.jpg

Electrical Specifications

Impedance50 ohm
Operating Frequency Band155 – 165 MHz
PolarizationVertical
>Spec Table Title< = Electrical Specificationshttps://www.alldataresource.com/assets/images_commscope/specs.jpg
Frequency Band, MHz155–165
Gain, dBi8.1
Beamwidth, Horizontal, degrees360
Beamwidth, Vertical, degrees16
VSWR / Return loss, dB1.5 / 14.0
Input Power per Port, maximum, watts500



https://www.alldataresource.com/assets/images_commscope/specs.jpg

Electrical Specifications

Impedance50 ohm
Operating Frequency Band155 – 165 MHz
PolarizationVertical
>Spec Table Title< = Electrical Specificationshttps://www.alldataresource.com/assets/images_commscope/specs.jpg
Frequency Band, MHz155–165
Gain, dBi8.1
Beamwidth, Horizontal, degrees360
Beamwidth, Vertical, degrees16
VSWR / Return loss, dB1.5 / 14.0
Input Power per Port, maximum, watts500



https://www.alldataresource.com/assets/images_commscope/specs.jpg

Mechanical Specifications

Wind Loading at Velocity, maximum126.0 lbf @ 100 mph / 560.5 N @ 100 mph
Wind Speed, maximum130 km/h / 80.778 mph



https://www.alldataresource.com/assets/images_commscope/packaging_weights.jpg

Packaging and Weights

Net Weight, without mounting kit15.9 kg / 35.053 lb



https://www.alldataresource.com/assets/images_commscope/regulatorycompliance.jpg

Regulatory Compliance/Certifications

CECompliant with the relevant CE product directives
ISO 9001:2015Designed, manufactured and/or distributed under this quality management system



https://www.alldataresource.com/assets/images_commscope/pdf.jpg

Documents and Downloads

Broadband Gain AntennaClick to View
Pipe Mount KitsClick to View
You, Your Antenna, and Safety!Click to View
Antenna Patterns (login required)Click to View
DB224-B Product specificationsClick to View
DB224-B Product specifications (Comprehensive)Click to View
Customer and Technical Support, Training, Software/Firmware, Repair ServicesClick to View
CommScope Limited Product WarrantyClick to View
