Brand: CommScope
|
SKU:
465423

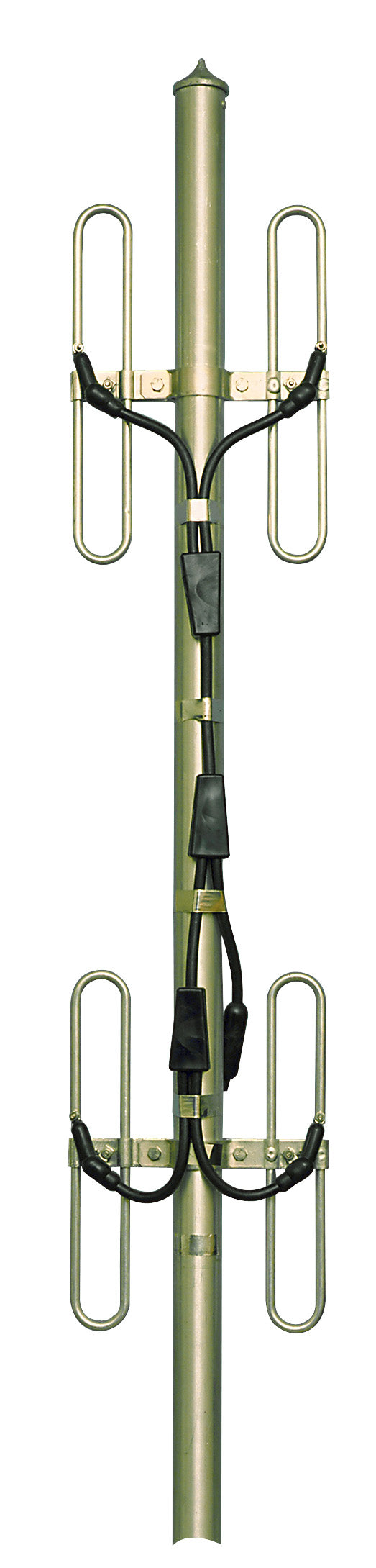

Commscope DB404-B | 1-port omni exposed dipole antenna, 450–470 MHz, 360° HPBW, fixed electrical tilt
Regular price
$1,246.33
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Commscope DB404-B | 1-port omni exposed dipole antenna, 450–470 MHz...
Regular price
$1,246.33
Unit price
Description
Description
Commscope DB404-B | 1-port omni exposed dipole antenna, 450–470 MHz, 360° HPBW, fixed electrical tilt
Specifications
Specifications
General Specifications
| Antenna Type | Omni |
|---|---|
| Band | Single band |
| Color | Silver |
| Grounding Type | RF connector inner conductor and body grounded to reflector and mounting bracket |
| Performance Note | Outdoor usage |
| Radiator Material | Aluminum |
| RF Connector Interface | N Male |
| RF Connector Location | End of flexible lead |
| RF Connector Quantity, low band | 1 |
| RF Connector Quantity, total | 1 |
Dimensions
| Length | 1524 mm / 60 in |
|---|
Electrical Specifications
| Impedance | 50 ohm |
|---|---|
| Operating Frequency Band | 450 – 470 MHz |
| Polarization | Vertical |
| >Spec Table Title< = Electrical Specifications | "> |
| Frequency Band, MHz | 450–470 |
| Gain, dBi | 5.9 |
| Beamwidth, Horizontal, degrees | 360 |
| Beamwidth, Vertical, degrees | 27 |
| VSWR / Return loss, dB | 1.5 / 14.0 |
| Input Power per Port, maximum, watts | 250 |
Electrical Specifications
| Impedance | 50 ohm |
|---|---|
| Operating Frequency Band | 450 – 470 MHz |
| Polarization | Vertical |
| >Spec Table Title< = Electrical Specifications | https://www.alldataresource.co... |
| Frequency Band, MHz | 450–470 |
| Gain, dBi | 5.9 |
| Beamwidth, Horizontal, degrees | 360 |
| Beamwidth, Vertical, degrees | 27 |
| VSWR / Return loss, dB | 1.5 / 14.0 |
| Input Power per Port, maximum, watts | 250 |
Mechanical Specifications
| Wind Speed, maximum | 161 km/h / 100.041 mph |
|---|
Packaging and Weights
| Net Weight, without mounting kit | 6.4 kg / 14.11 lb |
|---|
Regulatory Compliance/Certifications
| CE | Compliant with the relevant CE product directives |
|---|---|
| ISO 9001:2015 | Designed, manufactured and/or distributed under this quality management system |
| ROHS | Compliant |
| CHINA-ROHS | Below maximum concentration value |
| REACH-SVHC | Compliant as per SVHC revision on <a href="http://www.commscope.com/ProductCompliance |
