Brand: CommScope
|
SKU:
465457

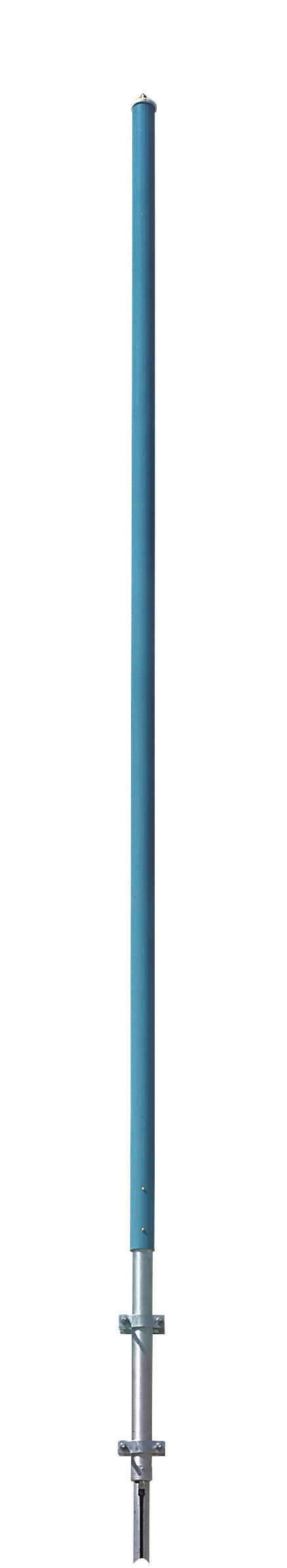

Commscope DB636-C | 1-port omni antenna, 450–482 MHz, 360° HPBW, fixed electrical tilt
Regular price
$3,873.37
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Commscope DB636-C | 1-port omni antenna, 450–482 MHz, 360° HPBW, fi...
Regular price
$3,873.37
Unit price
Description
Description
Commscope DB636-C | 1-port omni antenna, 450–482 MHz, 360° HPBW, fixed electrical tilt
Features and Benefits
- Omnidirectional antenna
- Rugged, durable design, heavy duty radome for minimum tip deflection
- Invert mountable
Specifications
Specifications
General Specifications
| Antenna Type | Omni |
|---|---|
| Band | Single band |
| Color | Horizon blue |
| Grounding Type | RF connector inner conductor and body grounded to reflector and mounting bracket |
| Performance Note | Outdoor usage |
| Radome Material | Fiberglass, UV resistant |
| Radiator Material | Brass |
| RF Connector Interface | N Female |
| RF Connector Location | Bottom |
| RF Connector Quantity, low band | 1 |
| RF Connector Quantity, total | 1 |
Dimensions
| Length | 2895.6 mm / 114 in |
|---|---|
| Outer Diameter | 63.5 mm / 2.5 in |
Electrical Specifications
| Impedance | 50 ohm |
|---|---|
| Operating Frequency Band | 450 – 482 MHz |
| Polarization | Vertical |
| >Spec Table Title< = Electrical Specifications | https://cdn.shopify.com/s/files/1/0843/1616/0235/files/specs.jpg?v=1786475215 |
| Frequency Band, MHz | 450–482 |
| Gain, dBi | 8.1 |
| Beamwidth, Horizontal, degrees | 360 |
| Beamwidth, Vertical, degrees | 20 |
| VSWR / Return loss, dB | 1.5 / 14.0 |
| Input Power per Port, maximum, watts | 500 |
Electrical Specifications
| Impedance | 50 ohm |
|---|---|
| Operating Frequency Band | 450 – 482 MHz |
| Polarization | Vertical |
| >Spec Table Title< = Electrical Specifications | https://cdn.shopify.com/s/files/1/0843/1616/0235/files/specs.jpg?v=1786475215 |
| Frequency Band, MHz | 450–482 |
| Gain, dBi | 8.1 |
| Beamwidth, Horizontal, degrees | 360 |
| Beamwidth, Vertical, degrees | 20 |
| VSWR / Return loss, dB | 1.5 / 14.0 |
| Input Power per Port, maximum, watts | 500 |
Mechanical Specifications
| Wind Loading at Velocity, maximum | 286.5 N @ 100 mph / 64.4 lbf @ 100 mph |
|---|---|
| Wind Speed, maximum | 354 km/h / 219.965 mph |
Packaging and Weights
| Net Weight, without mounting kit | 30 kg / 66.139 lb |
|---|
Regulatory Compliance/Certifications
| ISO 9001:2015 | Designed, manufactured and/or distributed under this quality management system |
|---|
