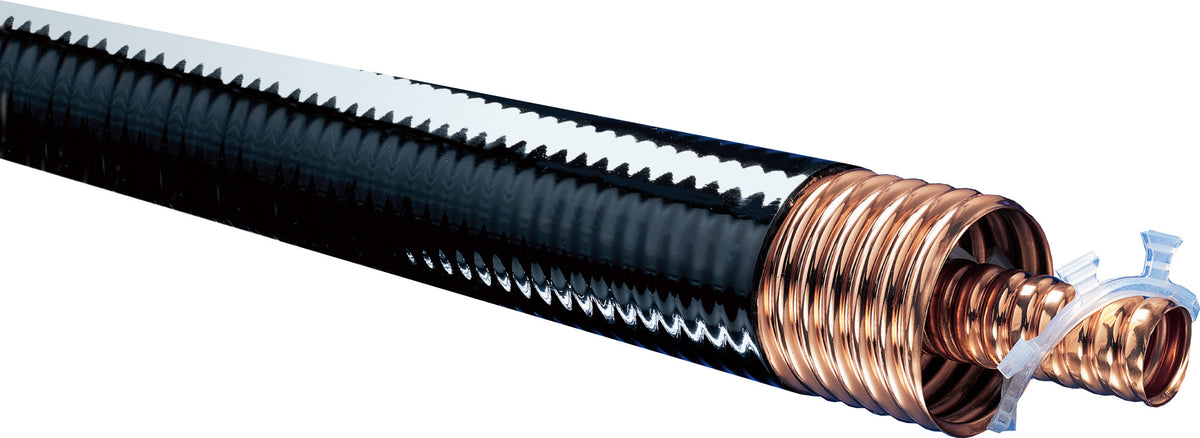

Commscope HJ9HP-50 | HJ9-50, HELIAX High Power Air Dielectric Coaxial Cable, corrugated copper, 5 in, black PE jacket
Specifications
Specifications
Product Classification
| Product Type | Air coaxial cable |
|---|---|
| Product Brand | HELIAX |
| Product Series | HJ9HP-50 |
General Specifications
| Flexibility | Standard |
|---|---|
| Jacket Color | Black |
Dimensions
| Diameter Over Jacket | 132.08 mm / 5.2 in |
|---|---|
| Inner Conductor OD | 51.308 mm / 2.02 in |
| Outer Conductor OD | 127 mm / 5 in |
| Nominal Size | 5 in |
| Cable Volume | 10869.651 L/km / 117 ft³/kft |
Electrical Specifications
| Cable Impedance | 50 ohm ±0.5 ohm |
|---|---|
| Capacitance | 68.241 pF/m / 20.8 pF/ft |
| dc Resistance, Inner Conductor | 0.328 ohms/km / 0.1 ohms/kft |
| dc Resistance, Outer Conductor | 0.131 ohms/km / 0.04 ohms/kft |
| dc Test Voltage | 26000 V |
| Inductance | 1.87 µH/m / 0.57 µH/ft |
| Insulation Resistance | 100000 MOhms-km |
| Jacket Spark Test Voltage (rms) | 12000 V |
| Operating Frequency Band | 1 – 960 MHz |
| Peak Power | 1690 kW |
| Power Attenuation | 13.3481998443603 |
| Velocity | 0.96 |
Material Specifications
| Dielectric Material | PTFE |
|---|---|
| Jacket Material | PE |
| Inner Conductor Material | Copper tube |
| Outer Conductor Material | Corrugated copper |
Mechanical Specifications
| Minimum Bend Radius, multiple Bends | 1270 mm / 50 in |
|---|---|
| Number of Bends, minimum | 15 |
| Number of Bends, typical | 30 |
| Tensile Strength | 454 kg / 1000.897 lb |
| Bending Moment | 271.164 N-m / 200 ft lb |
| Flat Plate Crush Strength | 4.286 kg/mm / 240 lb/in |
| Pressurization, maximum | 0.207 N/mm² / 30 psi |
Environmental Specifications
| Installation temperature | -40 °C to +60 °C (-40 °F to +140 °F) |
|---|---|
| Operating Temperature | -55 °C to +85 °C (-67 °F to +185 °F) |
| Storage Temperature | -70 °C to +85 °C (-94 °F to +185 °F) |
| Attenuation, Ambient Temperature | 20 °C / 68 °F |
| Average Power, Ambient Temperature | 40 °C / 104 °F |
| Average Power, Inner Conductor Temperature | 150 °C / 302 °F |
