Brand: CommScope
|
SKU:
371COMOM3TBD12
Commscope N012DS5LFSUBK/D | LazrSPEED Low Smoke Zero Halogen Riser Distribution Cable, 12 fiber single-unit, OM3, black
Regular price
$3.00
Unit price
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Commscope N012DS5LFSUBK/D | LazrSPEED Low Smoke Zero Halogen Riser ...
Regular price
$3.00
Unit price
Brand: CommScope
|
SKU:
371COMOM3TBD12
Regular price
$3.00
Unit price
Description
Description
Commscope N012DS5LFSUBK/D | LazrSPEED Low Smoke Zero Halogen Riser Distribution Cable, 12 fiber single-unit, OM3, black
Specifications
Specifications

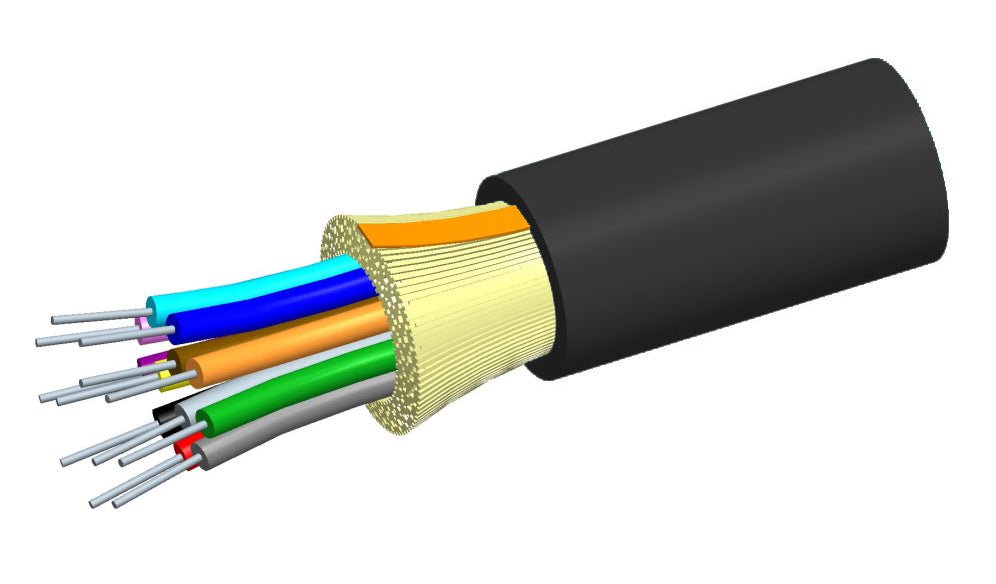

Representative Image
| Click on image to enlarge. |
|---|
Product Classification
| Regional Availability | Asia / Australia/New Zealand / EMEA / Latin America / North America |
|---|---|
| Portfolio | CommScope |
| Product Type | Fiber indoor cable |
General Specifications
| Cable Type | Distribution |
|---|---|
| Construction Type | Non-armored |
| Fiber Type, quantity | 12 |
| Jacket Color | Black |
| Subunit Type | Gel-free |
| Total Fiber Count | 12 |
Dimensions
| Diameter Over Jacket | 6.07 mm / 0.239 in |
|---|
Mechanical Specifications
| Minimum Bend Radius, loaded | 91 mm / 3.583 in |
|---|---|
| Minimum Bend Radius, unloaded | 61 mm / 2.402 in |
| Tensile Load, long term, maximum | 200 N / 44.962 lbf |
| Tensile Load, short term, maximum | 667 N / 149.948 lbf |
| Compression | 10 N/mm / 57.101 lb/in |
| Compression Test Method | FOTP-41 / IEC 60794-1 E3 |
| Flex | 100 cycles |
| Flex Test Method | FOTP-104 / IEC 60794-1 E6 |
| Impact | 5.88 N-m / 52.042 in lb |
| Impact Test Method | FOTP-25 / IEC 60794-1 E4 |
| Strain | See long and short term tensile loads |
| Strain Test Method | FOTP-33 / IEC 60794-1 E1 |
| Twist | 10 cycles |
| Twist Test Method | FOTP-85 / IEC 60794-1 E7 |
| Vertical Rise, maximum | 500 m / 1640.42 ft |
Optical Specifications
| Fiber Type | OM3, LazrSPEED 300 / OM3, LazrSPEED 300 |
|---|
Environmental Specifications
| Installation temperature | -10 °C to +60 °C (+14 °F to +140 °F) |
|---|---|
| Operating Temperature | -20 °C to +70 °C (-4 °F to +158 °F) |
| Storage Temperature | -40 °C to +70 °C (-40 °F to +158 °F) |
| Cable Qualification Standards | ANSI/ICEA S-83-596 / Telcordia GR-409 |
| EN50575 CPR Cable EuroClass Fire Performance | Dca |
| EN50575 CPR Cable EuroClass Smoke Rating | s1a |
| EN50575 CPR Cable EuroClass Droplets Rating | d1 |
| EN50575 CPR Cable EuroClass Acidity Rating | a2 |
| Environmental Space | Low Smoke Zero Halogen (LSZH) / Riser |
| Flame Test Listing | NEC OFNR-LS (ETL) and c(ETL) |
| Flame Test Method | IEC 60332-3 / IEC 60754-2 / IEC 61034-2 / IEEE 383 / UL 1666 / UL 1685 |
Environmental Test Specifications
| Heat Age | -20 °C to +85 °C (-4 °F to +185 °F) |
|---|---|
| Heat Age Test Method | IEC 60794-1 F9 |
| Low High Bend | -10 °C to +60 °C (+14 °F to +140 °F) |
| Low High Bend Test Method | FOTP-37 / IEC 60794-1 E11 |
| Temperature Cycle | -20 °C to +70 °C (-4 °F to +158 °F) |
| Temperature Cycle Test Method | FOTP-3 / IEC 60794-1 F1 |
Packaging and Weights
| Cable weight | 34 kg/km / 22.847 lb/kft |
|---|
Regulatory Compliance/Certifications
| CENELEC | EN 50575 compliant, Declaration of Performance (DoP) available |
|---|---|
| ISO 9001:2015 | Designed, manufactured and/or distributed under this quality management system |
Documents and Downloads
Documents and Downloads
- Revit BIM Models
- EN50575 DoP EuroClass Dca s1a d1 a2 (Danish)
- EN50575 DoP EuroClass Dca s1a d1 a2 (Dutch)
- EN50575 DoP EuroClass Dca s1a d1 a2 (French)
- EN50575 DoP EuroClass Dca s1a d1 a2 (German)
- EN50575 DoP EuroClass Dca s1a d1 a2 (Italian)
- EN50575 DoP EuroClass Dca s1a d1 a2 (Spanish)
- Statement of Compliance RoHS/REACH
