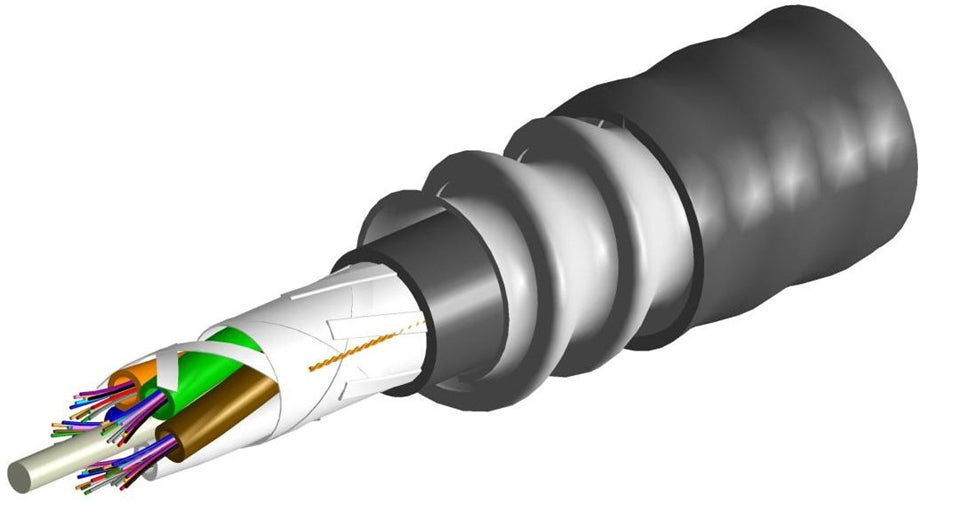

Commscope P-006-LZ-5L-F06BK/25D | LazrSPEED Indoor/Outdoor, Plenum Rated, Gel-Free, Stranded Loose Tube Cable with Aluminum Interlocking Armor containing a Plenum Rated Outer Jacket
Commscope P-006-LZ-5L-F06BK/25D | LazrSPEED Indoor/Outdoor, Plenum Rated, Gel-Free, Stranded Loose Tube Cable with Aluminum Interlocking Armor containing a Plenum Rated Outer Jacket

Commscope P-006-LZ-5L-F06BK/25D | LazrSPEED Indoor/Outdoor, Plenum Rated, Gel-Free, Stranded Loose Tube Cable with Aluminum Interlocking Armor containing a Plenum Rated Outer Jacket

Part Number: 373-COMOM3-LTA-06
0 Review(s)
Write a Review
Availability:
Email for Pricing
Retail Price:$8.05
  • Low prices.

    Price match guarantee

  • In-House Experts.

    We know our products

  • Easy Returns.

    Quick & Hassle Free

  • Superior Selection.

    Extensive product catalog

Commscope P-006-LZ-5L-F06BK/25D | LazrSPEED Indoor/Outdoor, Plenum Rated, Gel-Free, Stranded Loose Tube Cable with Aluminum Interlocking Armor containing a Plenum Rated Outer Jacket



https://www.alldataresource.com/assets/images_commscope/product_classification.jpg

Product Classification

Regional AvailabilityAsia / Australia/New Zealand / Latin America / Middle East/Africa / North America
PortfolioCommScope
Product TypeFiber indoor/outdoor cable



https://www.alldataresource.com/assets/images_commscope/specs.jpg

General Specifications

Armor TypeInterlocking aluminum
Cable TypeStranded loose tube
Construction TypeArmored
Fiber Type, quantity6
Fibers per Subunit, quantity6
Filler, quantity4
Jacket ColorBlack
Subunit TypeGel-free
Subunit, quantity1
Total Fiber Count6



https://www.alldataresource.com/assets/images_commscope/dimensions.jpg

Dimensions

Buffer Tube/Subunit Diameter2.5 mm / 0.098 in
Diameter Over Armor15.9 mm / 0.626 in
Diameter Over Jacket17.9 mm / 0.705 in



https://www.alldataresource.com/assets/images_commscope/specs.jpg

Mechanical Specifications

Minimum Bend Radius, loaded358 mm / 14.094 in
Minimum Bend Radius, unloaded250 mm / 9.843 in
Tensile Load, long term, maximum400 N / 89.924 lbf
Tensile Load, short term, maximum1335 N / 300.12 lbf
Compression85 N/mm / 485.363 lb/in
Compression Test MethodFOTP-41 / IEC 60794-1 E3
Flex25 cycles
Flex Test MethodFOTP-104 / IEC 60794-1 E6
Impact35 N-m / 309.776 in lb
Impact Test MethodFOTP-25 / IEC 60794-1 E4
StrainSee long and short term tensile loads
Strain Test MethodFOTP-33 / IEC 60794-1 E1
Twist10 cycles
Twist Test MethodFOTP-85 / IEC 60794-1 E7
Vertical Rise, maximum144 m / 472.441 ft



https://www.alldataresource.com/assets/images_commscope/specs.jpg

Optical Specifications

Fiber TypeOM3, LazrSPEED 300 / OM3, LazrSPEED 300



https://www.alldataresource.com/assets/images_commscope/specs.jpg

Environmental Specifications

Installation temperature-30 °C to +70 °C (-22 °F to +158 °F)
Operating Temperature-40 °C to +70 °C (-40 °F to +158 °F)
Storage Temperature-40 °C to +75 °C (-40 °F to +167 °F)
Cable Qualification StandardsANSI/ICEA S-104-696 / EN 187105 / Telcordia GR-409
Environmental SpacePlenum
Flame Test ListingNEC OFCP (ETL) and c(ETL)
Flame Test MethodNFPA 130 / NFPA 262
Jacket UV ResistanceUV stabilized
Water Penentration24 h
Water Penentration Test MethodFOTP-82 / IEC 60794-1 F5



https://www.alldataresource.com/assets/images_commscope/environmental_test_specifications.jpg

Environmental Test Specifications

Cable Freeze-2 °C / 28.4 °F
Cable Freeze Test MethodFOTP-98 / IEC 60794-1 F15
Heat Age-40 °C to +85 °C (-40 °F to +185 °F)
Heat Age Test MethodIEC 60794-1 F9
Low High Bend-30 °C to +60 °C (-22 °F to +140 °F)
Low High Bend Test MethodFOTP-37 / IEC 60794-1 E11
Temperature Cycle-40 °C to +70 °C (-40 °F to +158 °F)
Temperature Cycle Test MethodFOTP-3 / IEC 60794-1 F1



https://www.alldataresource.com/assets/images_commscope/packaging_weights.jpg

Packaging and Weights

Cable weight283 kg/km / 190.167 lb/kft



https://www.alldataresource.com/assets/images_commscope/regulatorycompliance.jpg

Regulatory Compliance/Certifications

ISO 9001:2015Designed, manufactured and/or distributed under this quality management system



https://www.alldataresource.com/assets/images_commscope/pdf.jpg

Documents and Downloads

Revit BIM ModelsClick to View
Statement of Compliance RoHS/REACHClick to View
760142166 Product specificationsClick to View
Customer and Technical Support, Training, Software/Firmware, Repair ServicesClick to View
CommScope Extended System WarrantyClick to View
CommScope Limited Product WarrantyClick to View
