Commscope P012OZ5LFSUBK | LazrSPEED Indoor/Outdoor Plenum Distribution Cable, interlocking aluminum armored with plenum jacket, 12 fiber single-unit
Commscope P012OZ5LFSUBK | LazrSPEED Indoor/Outdoor Plenum Distribution Cable, interlocking aluminum armored with plenum jacket, 12 fiber single-unit

Commscope P012OZ5LFSUBK | LazrSPEED Indoor/Outdoor Plenum Distribution Cable, interlocking aluminum armored with plenum jacket, 12 fiber single-unit

Part Number: 373-COMOM3-TBA-12
0 Review(s)
Write a Review
Availability:
$7.50
Retail Price:$8.25
Your Savings:$0.75(9%)
  • Low prices.

    Price match guarantee

  • In-House Experts.

    We know our products

  • Easy Returns.

    Quick & Hassle Free

  • Superior Selection.

    Extensive product catalog

Commscope P012OZ5LFSUBK | LazrSPEED Indoor/Outdoor Plenum Distribution Cable, interlocking aluminum armored with plenum jacket, 12 fiber single-unit



https://www.alldataresource.com/assets/images_commscope/representative_image.jpg

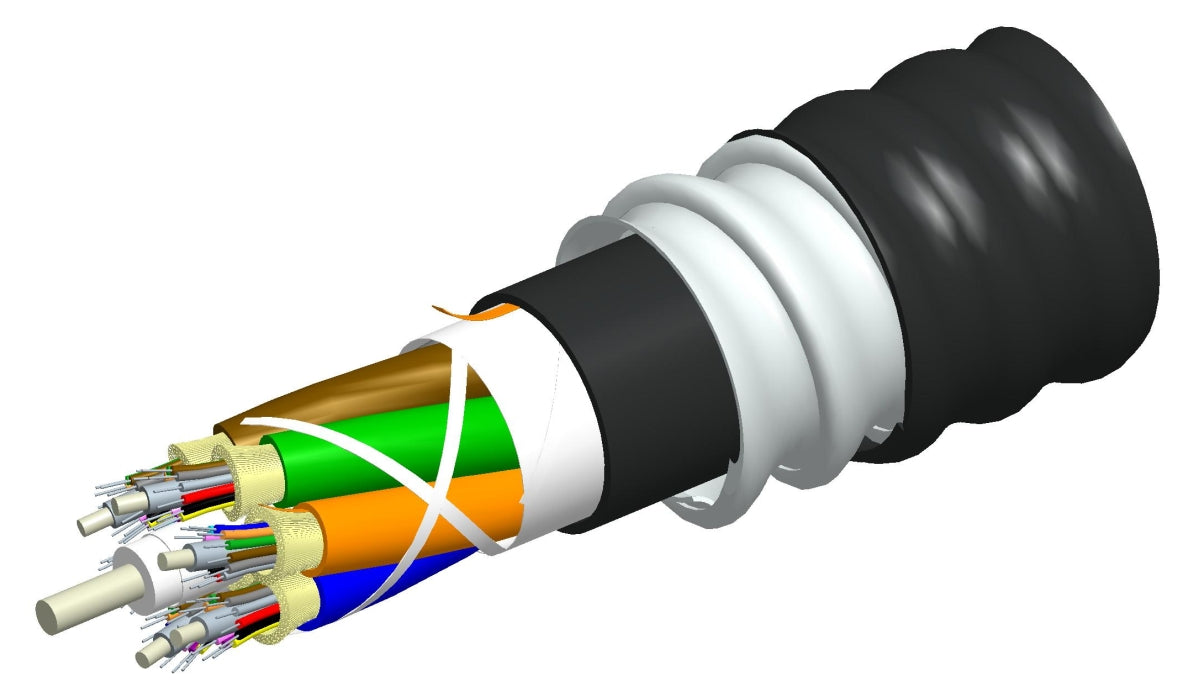

Representative Image

Click on image to enlarge.Click on image to enlarge.



https://www.alldataresource.com/assets/images_commscope/product_classification.jpg

Product Classification

Regional AvailabilityAsia / Australia/New Zealand / Latin America / Middle East/Africa / North America
PortfolioCommScope
Product TypeFiber indoor/outdoor cable



https://www.alldataresource.com/assets/images_commscope/specs.jpg

General Specifications

Armor TypeInterlocking aluminum
Cable TypeDistribution
Construction TypeArmored
Fiber Type, quantity12
Jacket ColorBlack
Total Fiber Count12



https://www.alldataresource.com/assets/images_commscope/dimensions.jpg

Dimensions

Diameter Over Armor12.07 mm / 0.475 in
Diameter Over Jacket14.1 mm / 0.555 in



https://www.alldataresource.com/assets/images_commscope/specs.jpg

Mechanical Specifications

Minimum Bend Radius, loaded282 mm / 11.102 in
Minimum Bend Radius, unloaded197 mm / 7.756 in
Tensile Load, long term, maximum400 N / 89.924 lbf
Tensile Load, short term, maximum1335 N / 300.12 lbf
Compression85 N/mm / 485.363 lb/in
Compression Test MethodFOTP-41 / IEC 60794-1 E3
Flex25 cycles
Flex Test MethodFOTP-104 / IEC 60794-1 E6
Impact35 N-m / 309.776 in lb
Impact Test MethodFOTP-25 / IEC 60794-1 E4
StrainSee long and short term tensile loads
Strain Test MethodFOTP-33 / IEC 60794-1 E1
Twist10 cycles
Twist Test MethodFOTP-85 / IEC 60794-1 E7
Vertical Rise, maximum211 m / 692.257 ft



https://www.alldataresource.com/assets/images_commscope/specs.jpg

Optical Specifications

Fiber TypeOM3, LazrSPEED 300 / OM3, LazrSPEED 300



https://www.alldataresource.com/assets/images_commscope/specs.jpg

Environmental Specifications

Installation temperature-30 °C to +70 °C (-22 °F to +158 °F)
Operating Temperature-40 °C to +70 °C (-40 °F to +158 °F)
Storage Temperature-40 °C to +75 °C (-40 °F to +167 °F)
Cable Qualification StandardsANSI/ICEA S-104-696 / Telcordia GR-20 (water penetration for internal cable) / Telcordia GR-409
Environmental SpacePlenum
Flame Test ListingNEC OFCP (ETL) and c(ETL)
Flame Test MethodNFPA 130 / NFPA 262
Jacket UV ResistanceUV stabilized
Water Penentration24 h
Water Penentration Test MethodFOTP-82 / IEC 60794-1 F5



https://www.alldataresource.com/assets/images_commscope/environmental_test_specifications.jpg

Environmental Test Specifications

Cable Freeze Test MethodIEC 60794-1 F15
Heat Age-40 °C to +85 °C (-40 °F to +185 °F)
Heat Age Test MethodIEC 60794-1 F9
Low High Bend-40 °C to +70 °C (-40 °F to +158 °F)
Low High Bend Test MethodFOTP-37 / IEC 60794-1 E11
Temperature Cycle-40 °C to +70 °C (-40 °F to +158 °F)
Temperature Cycle Test MethodFOTP-3 / IEC 60794-1 F1



https://www.alldataresource.com/assets/images_commscope/packaging_weights.jpg

Packaging and Weights

Cable weight194 kg/km / 130.362 lb/kft



https://www.alldataresource.com/assets/images_commscope/regulatorycompliance.jpg

Regulatory Compliance/Certifications

ISO 9001:2015Designed, manufactured and/or distributed under this quality management system



https://www.alldataresource.com/assets/images_commscope/pdf.jpg

Documents and Downloads

Revit BIM ModelsClick to View
Interlocking Armor Fiber Optic Cable Installation GuideClick to View
Statement of Compliance RoHS/REACHClick to View
760134890 Product specifications (Comprehensive)Click to View
Customer and Technical Support, Training, Software/Firmware, Repair ServicesClick to View
CommScope Extended System WarrantyClick to View
CommScope Limited Product WarrantyClick to View
