Commscope P072OD5LFMUBK | LazrSPEED Indoor/Outdoor Plenum Distribution Cable, 72 fiber multi-unit with 12 fiber subunits
Commscope P072OD5LFMUBK | LazrSPEED Indoor/Outdoor Plenum Distribution Cable, 72 fiber multi-unit with 12 fiber subunits

Commscope P072OD5LFMUBK | LazrSPEED Indoor/Outdoor Plenum Distribution Cable, 72 fiber multi-unit with 12 fiber subunits

Part Number: 373-COMOM3-TBD-72
0 Review(s)
Write a Review
Availability:
$22.45
Retail Price:$23.96
Your Savings:$1.51(6%)
Have a question or need a quote?

  • Low prices.

    Price match guarantee

  • In-House Experts.

    We know our products

  • Easy Returns.

    Quick & Hassle Free

  • Superior Selection.

    Extensive product catalog

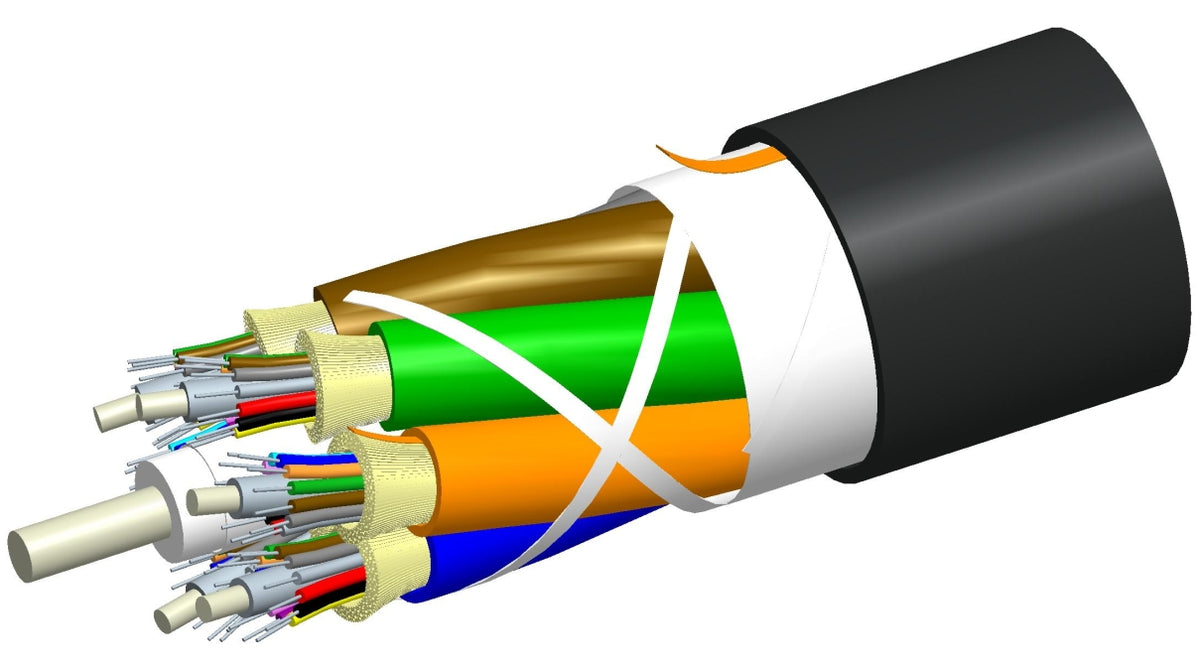

Commscope P072OD5LFMUBK | LazrSPEED Indoor/Outdoor Plenum Distribution Cable, 72 fiber multi-unit with 12 fiber subunits



https://www.alldataresource.com/assets/images_commscope/representative_image.jpg

Representative Image

Click on image to enlarge.Click on image to enlarge.



https://www.alldataresource.com/assets/images_commscope/product_classification.jpg

Product Classification

Regional AvailabilityAsia / Australia/New Zealand / Latin America / Middle East/Africa / North America
PortfolioCommScope
Product TypeFiber indoor/outdoor cable



https://www.alldataresource.com/assets/images_commscope/specs.jpg

General Specifications

Cable TypeDistribution
Construction TypeNon-armored
Fiber Type, quantity72
Fibers per Subunit, quantity12
Jacket ColorBlack
Subunit TypeGel-free
Subunit, quantity6
Total Fiber Count72



https://www.alldataresource.com/assets/images_commscope/dimensions.jpg

Dimensions

Buffer Tube/Subunit Diameter6.9 mm / 0.272 in
Diameter Over Jacket23.7 mm / 0.933 in



https://www.alldataresource.com/assets/images_commscope/specs.jpg

Mechanical Specifications

Minimum Bend Radius, loaded355 mm / 13.976 in
Minimum Bend Radius, unloaded237 mm / 9.331 in
Tensile Load, long term, maximum1335 N / 300.12 lbf
Tensile Load, short term, maximum4450 N / 1000.4 lbf
Compression22 N/mm / 125.623 lb/in
Compression Test MethodFOTP-41 / IEC 60794-1 E3
Flex100 cycles
Flex Test MethodFOTP-104 / IEC 60794-1 E6
Impact5.88 N-m / 52.042 in lb
Impact Test MethodFOTP-25 / IEC 60794-1 E4
StrainSee long and short term tensile loads
Strain Test MethodFOTP-33 / IEC 60794-1 E1
Twist10 cycles
Twist Test MethodFOTP-85 / IEC 60794-1 E7
Vertical Rise, maximum256 m / 839.895 ft



https://www.alldataresource.com/assets/images_commscope/specs.jpg

Optical Specifications

Fiber TypeOM3, LazrSPEED 300 / OM3, LazrSPEED 300



https://www.alldataresource.com/assets/images_commscope/specs.jpg

Environmental Specifications

Installation temperature-30 °C to +70 °C (-22 °F to +158 °F)
Operating Temperature-40 °C to +70 °C (-40 °F to +158 °F)
Storage Temperature-40 °C to +75 °C (-40 °F to +167 °F)
Cable Qualification StandardsANSI/ICEA S-104-696 / Telcordia GR-20 (water penetration) / Telcordia GR-409
Environmental SpacePlenum
Flame Test ListingNEC OFNP (ETL) and c(ETL)
Flame Test MethodNFPA 130 / NFPA 262
Jacket UV ResistanceUV stabilized
Water Penentration24 h
Water Penentration Test MethodFOTP-82 / IEC 60794-1 F5



https://www.alldataresource.com/assets/images_commscope/environmental_test_specifications.jpg

Environmental Test Specifications

Cable Freeze Test MethodIEC 60794-1 F15
Heat Age-40 °C to +85 °C (-40 °F to +185 °F)
Heat Age Test MethodIEC 60794-1 F9
Low High Bend-40 °C to +70 °C (-40 °F to +158 °F)
Low High Bend Test MethodFOTP-37 / IEC 60794-1 E11
Temperature Cycle-40 °C to +70 °C (-40 °F to +158 °F)
Temperature Cycle Test MethodFOTP-3 / IEC 60794-1 F1



https://www.alldataresource.com/assets/images_commscope/packaging_weights.jpg

Packaging and Weights

Cable weight532 kg/km / 357.487 lb/kft



https://www.alldataresource.com/assets/images_commscope/regulatorycompliance.jpg

Regulatory Compliance/Certifications

ISO 9001:2015Designed, manufactured and/or distributed under this quality management system



https://www.alldataresource.com/assets/images_commscope/pdf.jpg

Documents and Downloads

Revit BIM ModelsClick to View
Statement of Compliance RoHS/REACHClick to View
760038109 Product specificationsClick to View
Customer and Technical Support, Training, Software/Firmware, Repair ServicesClick to View
CommScope Extended System WarrantyClick to View
CommScope Limited Product WarrantyClick to View
