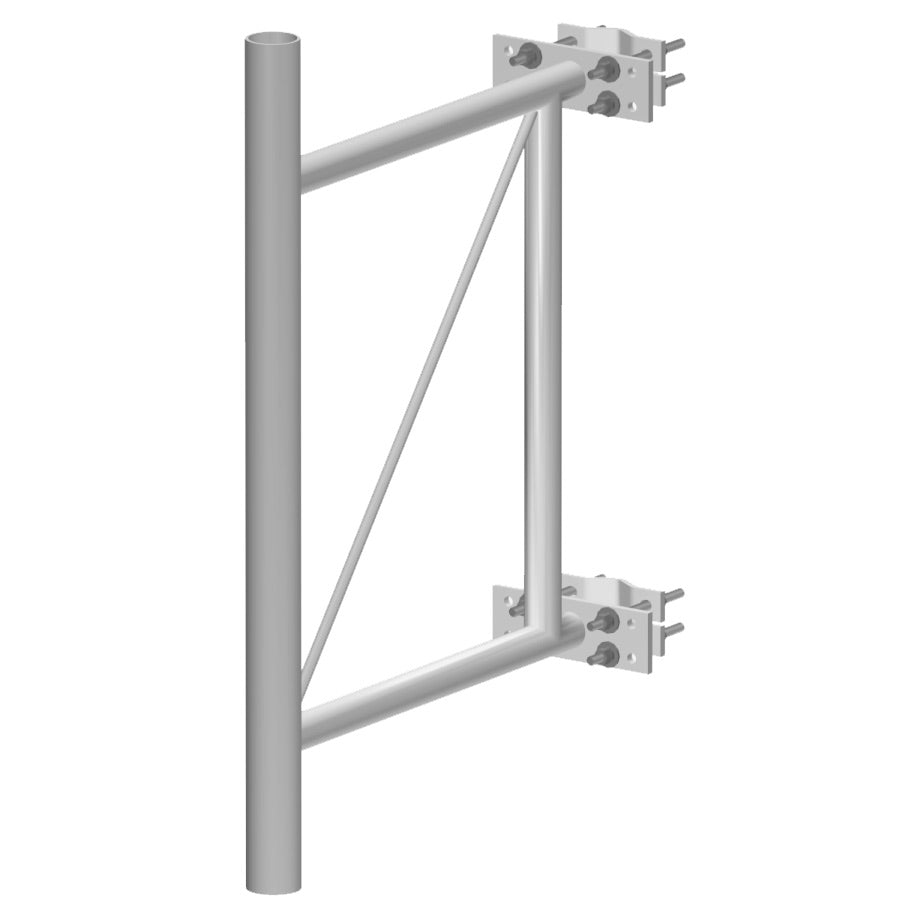

Commscope PB-G3T-2 | Tapered Pipe Frame Stand-Off Bracket, 36 in, for 2 in to 5 in OD legs
Commscope PB-G3T-2 | Tapered Pipe Frame Stand-Off Bracket, 36 in, for 2 in to 5 in OD legs

Commscope PB-G3T-2 | Tapered Pipe Frame Stand-Off Bracket, 36 in, for 2 in to 5 in OD legs

Part Number: 469577
0 Review(s)
Write a Review
Availability:
$816.64
Retail Price:$898.30
Your Savings:$81.66(9%)
  • Low prices.

    Price match guarantee

  • In-House Experts.

    We know our products

  • Easy Returns.

    Quick & Hassle Free

  • Superior Selection.

    Extensive product catalog

Commscope PB-G3T-2 | Tapered Pipe Frame Stand-Off Bracket, 36 in, for 2 in to 5 in OD legs



https://www.alldataresource.com/assets/images_commscope/outline_drawing.jpg

Outline Drawing

Click on image to enlarge.Click on image to enlarge.



https://www.alldataresource.com/assets/images_commscope/product_classification.jpg

Product Classification

Product TypeStand-off mount



https://www.alldataresource.com/assets/images_commscope/specs.jpg

General Specifications

MountingLegs, 50.8–127 mm (2–5 in) OD
NoteFour 72 in x 8 in panel antennas per sector
Tower TaperTapered



https://www.alldataresource.com/assets/images_commscope/dimensions.jpg

Dimensions

Height1447.8 mm / 57 in
Width254 mm / 10 in
Length838.2 mm / 33 in
Mounting Diameter, maximum127 mm / 5 in
Mounting Diameter, minimum50.8 mm / 2 in
Stand-off Distance914.4 mm / 36 in



https://www.alldataresource.com/assets/images_commscope/specs.jpg

Material Specifications

Material TypeHot dip galvanized steel



https://www.alldataresource.com/assets/images_commscope/specs.jpg

Mechanical Specifications

Wind Rating120 mph (BWS) at 150 ft AGL / 140 mph (3-second gust) at 150 ft AGL using Exposure D per FBC
Wind Rating Test MethodTIA/EIA-222



https://www.alldataresource.com/assets/images_commscope/specs.jpg

Environmental Specifications

Man Rating250 lb vertical man load at 15 mph (BWS)



https://www.alldataresource.com/assets/images_commscope/packaging_weights.jpg

Packaging and Weights

IncludedClamps / Stand-off
Packaging quantity1
Weight, net62.6 kg / 138.009 lb



https://www.alldataresource.com/assets/images_commscope/regulatorycompliance.jpg

Regulatory Compliance/Certifications

ISO 9001:2015Designed, manufactured and/or distributed under this quality management system



https://www.alldataresource.com/assets/images_commscope/pdf.jpg

Documents and Downloads

Tapered Pipe Frame Stand-off BracketClick to View
Statement of Compliance RoHS/REACHClick to View
PB-G3T-2 Product specificationsClick to View
CommScope Limited Product WarrantyClick to View
