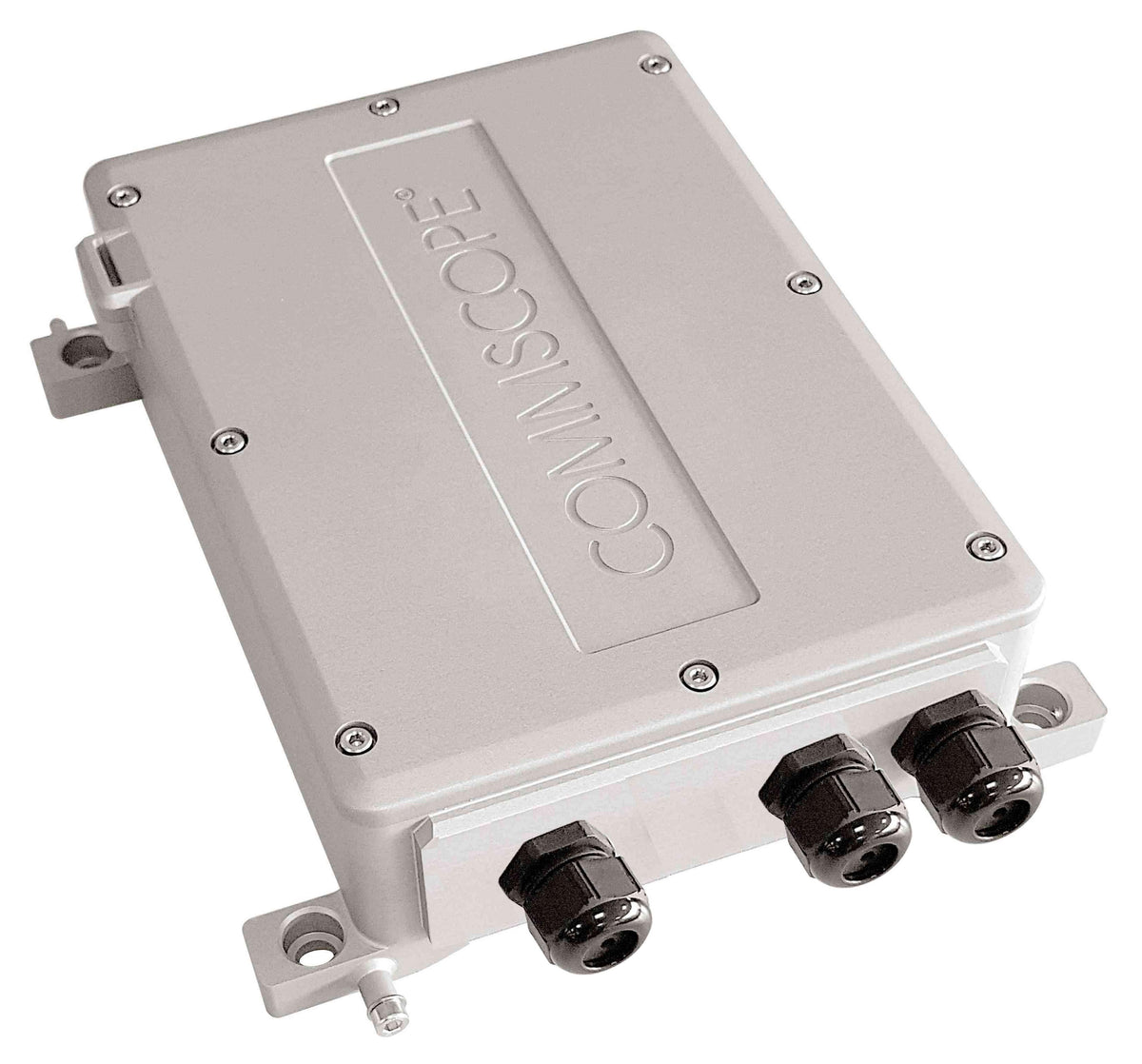

Commscope PFU12CO06001 | Power Extender, Universal Mount, Outdoor, 12 Vdc, Fiber Pass Through
Commscope PFU12CO06001 | Power Extender, Universal Mount, Outdoor, 12 Vdc, Fiber Pass Through

Commscope PFU12CO06001 | Power Extender, Universal Mount, Outdoor, 12 Vdc, Fiber Pass Through

Part Number: 1009700
0 Review(s)
Write a Review
Availability:
$1,535.47
Retail Price:$1,689.02
Your Savings:$153.55(9%)
Have a question or need a quote?

  • Low prices.

    Price match guarantee

  • In-House Experts.

    We know our products

  • Easy Returns.

    Quick & Hassle Free

  • Superior Selection.

    Extensive product catalog

Power Extender, Universal Mount, Outdoor, 12 Vdc, Fiber Pass Through



https://www.alldataresource.com/assets/images_commscope/product_classification.jpg

Product Classification

Regional AvailabilityAsia | Australia/New Zealand | EMEA | Latin America | North America
Product TypePower extender



https://www.alldataresource.com/assets/images_commscope/specs.jpg

General Specifications

Interface, InputDC Power
Interface, OutputDC Power
MountingUniversal pole mount | Universal wall mount
Total Ports, quantity4
Input/Output Interface1 input / 1 output



https://www.alldataresource.com/assets/images_commscope/dimensions.jpg

Dimensions

Height224.71 mm | 8.847 in
Width283 mm | 11.142 in
Depth77.02 mm | 3.032 in



https://www.alldataresource.com/assets/images_commscope/specs.jpg

Electrical Specifications

Input Voltage Range-25 to -57 Vdc
Output Voltage Range10.5 to 12 Vdc



https://www.alldataresource.com/assets/images_commscope/specs.jpg

Material Specifications

FinishPowder coated, off-white
Material TypeAluminum



https://www.alldataresource.com/assets/images_commscope/specs.jpg

Environmental Specifications

Installation temperature-5 °C to +45 °C (+23 °F to +113 °F)
Operating Temperature-40 °C to +65 °C (-40 °F to +149 °F)
Storage Temperature-40 °C to +70 °C (-40 °F to +158 °F)
Environmental SpaceOutdoor



https://www.alldataresource.com/assets/images_commscope/packaging_weights.jpg

Packaging and Weights

Weight, net5.08 kg | 11.199 lb



https://www.alldataresource.com/assets/images_commscope/regulatorycompliance.jpg

Regulatory Compliance/Certifications

ROHSCompliant
CHINA-ROHSBelow maximum concentration value
REACH-SVHCCompliant as per SVHC revision on www.commscope.com/ProductCompliance



https://www.alldataresource.com/assets/images_commscope/pdf.jpg

Documents and Downloads

Commscope PFU-12-C-O-060-01 Statement of Compliance RoHS/REACHClick to View
Commscope PFU-12-C-O-060-01 Product specificationsClick to View
Commscope PFU-12-C-O-060-01 TC-96231-IP Two Port PoE Extender and 60W Single Port ExtenderClick to View
