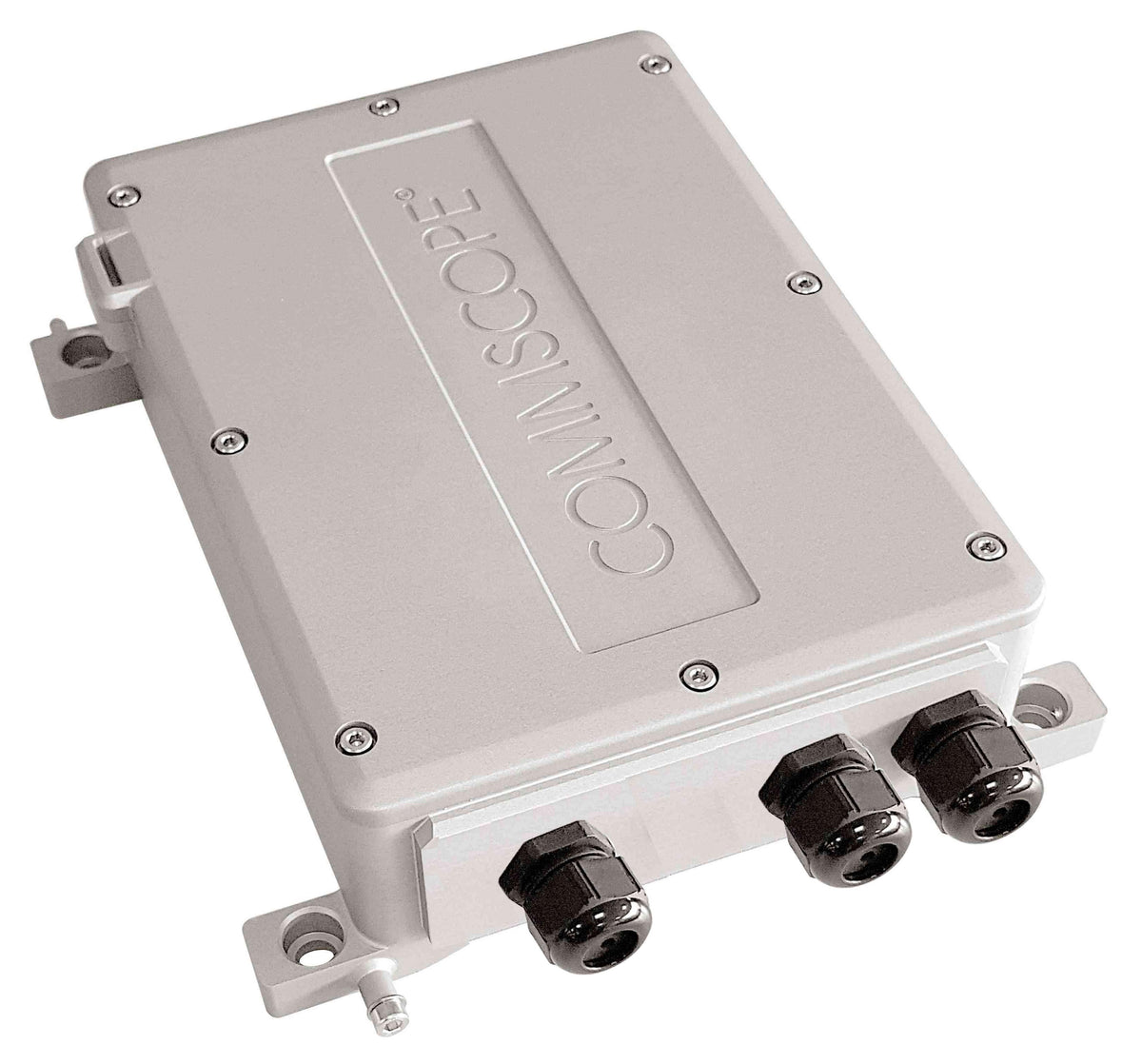

Commscope PFU48CO06001 | Power Extender, Universal Mount, Outdoor, 48 Vdc, Fiber Pass Through


https://www.alldataresource.com/assets/images_commscope/features.jpg

Features and Benefits

  • Environmentally sealed and tested
  • Electrical power management
  • Circuit protection electronics
  • Automatically conditions electrical voltage to the correct level



https://www.alldataresource.com/assets/images_commscope/product_classification.jpg

Product Classification

Regional AvailabilityAsia / Australia/New Zealand / EMEA / Latin America / North America
Product TypePower extender



https://www.alldataresource.com/assets/images_commscope/specs.jpg

General Specifications

Interface, InputDC Power
Interface, OutputDC Power
MountingUniversal pole mount / Universal wall mount
Total Ports, quantity4
Input/Output Interface1 input / 1 output



https://www.alldataresource.com/assets/images_commscope/dimensions.jpg

Dimensions

Height224.71 mm / 8.847 in
Width283 mm / 11.142 in
Depth77.02 mm / 3.032 in



https://www.alldataresource.com/assets/images_commscope/specs.jpg

Electrical Specifications

Input Voltage Range-25 to -57 Vdc
Output Voltage Range46 to 48 Vdc



https://www.alldataresource.com/assets/images_commscope/specs.jpg

Material Specifications

FinishPowder coated, off-white
Material TypeAluminum



https://www.alldataresource.com/assets/images_commscope/specs.jpg

Environmental Specifications

Installation temperature-5 °C to +45 °C (+23 °F to +113 °F)
Operating Temperature-40 °C to +65 °C (-40 °F to +149 °F)
Storage Temperature-40 °C to +70 °C (-40 °F to +158 °F)
Environmental SpaceOutdoor
Qualification StandardsCISPR 22/FCC CFR 47 / EN300386 / ETSI EN 300 019-1-4 / IEC 60529, IP68 / IEC 60950-1 / IEC 60950-22 / IEC 62368 / NEC Class 2
Safety StandardCE / CSA / FCC / RCM / SELV / WEEE



https://www.alldataresource.com/assets/images_commscope/packaging_weights.jpg

Packaging and Weights

Weight, net5.08 kg / 11.199 lb



https://www.alldataresource.com/assets/images_commscope/regulatorycompliance.jpg

Regulatory Compliance/Certifications

ROHSCompliant
CHINA-ROHSBelow maximum concentration value
REACH-SVHCCompliant as per SVHC revision on www.commscope.com/ProductCompliance



https://www.alldataresource.com/assets/images_commscope/pdf.jpg

Documents and Downloads

Revit BIM ModelsClick to View
Statement of Compliance RoHS/REACHClick to View
PFU-48-C-O-060-01 Product specificationsClick to View
TC-96231-IP Two Port PoE Extender and 60W Single Port ExtenderClick to View
Powered Fiber Cable PoE ExtenderClick to View
CommScope Limited Product WarrantyClick to View
