Commscope R024DS5KFSUAQ | LazrSPEED Riser Distribution Cable, 24 fiber single-unit



https://www.alldataresource.com/assets/images_commscope/representative_image.jpg

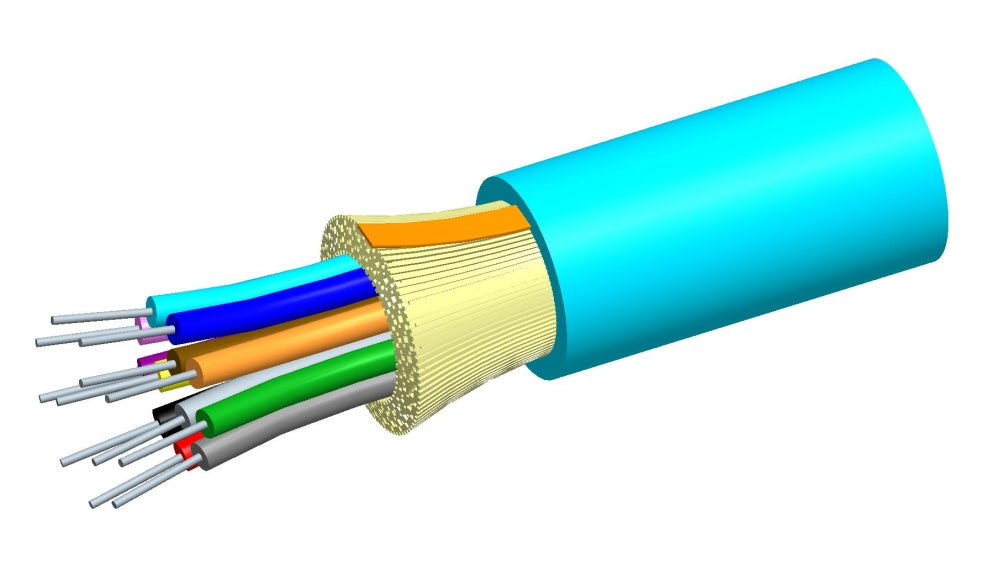

Representative Image

Click on image to enlarge.Click on image to enlarge.



https://www.alldataresource.com/assets/images_commscope/product_classification.jpg

Product Classification

Regional AvailabilityAsia / Australia/New Zealand / Latin America / Middle East/Africa / North America
PortfolioCommScope
Product TypeFiber indoor cable



https://www.alldataresource.com/assets/images_commscope/specs.jpg

General Specifications

Cable TypeDistribution
Construction TypeNon-armored
Fiber Type, quantity24
Jacket ColorAqua
Subunit TypeGel-free
Total Fiber Count24



https://www.alldataresource.com/assets/images_commscope/dimensions.jpg

Dimensions

Diameter Over Jacket7.9 mm / 0.311 in



https://www.alldataresource.com/assets/images_commscope/specs.jpg

Mechanical Specifications

Minimum Bend Radius, loaded118 mm / 4.646 in
Minimum Bend Radius, unloaded79 mm / 3.11 in
Tensile Load, long term, maximum400 N / 89.924 lbf
Tensile Load, short term, maximum1335 N / 300.12 lbf
Compression10 N/mm / 57.101 lb/in
Compression Test MethodFOTP-41 / IEC 60794-1 E3
Flex100 cycles
Flex Test MethodFOTP-104 / IEC 60794-1 E6
Impact5.88 N-m / 52.042 in lb
Impact Test MethodFOTP-25 / IEC 60794-1 E4
StrainSee long and short term tensile loads
Strain Test MethodFOTP-33 / IEC 60794-1 E1
Twist10 cycles
Twist Test MethodFOTP-85 / IEC 60794-1 E7
Vertical Rise, maximum500 m / 1640.42 ft



https://www.alldataresource.com/assets/images_commscope/specs.jpg

Optical Specifications

Fiber TypeOM4, LazrSPEED 550 / OM4, LazrSPEED 550



https://www.alldataresource.com/assets/images_commscope/specs.jpg

Environmental Specifications

Installation temperature-20 °C to +70 °C (-4 °F to +158 °F)
Operating Temperature-20 °C to +70 °C (-4 °F to +158 °F)
Storage Temperature-40 °C to +70 °C (-40 °F to +158 °F)
Cable Qualification StandardsANSI/ICEA S-83-596 / Telcordia GR-409
Environmental SpaceRiser
Flame Test ListingNEC OFNR (ETL) and c(ETL)
Flame Test MethodUL 1666



https://www.alldataresource.com/assets/images_commscope/environmental_test_specifications.jpg

Environmental Test Specifications

Heat Age-20 °C to +85 °C (-4 °F to +185 °F)
Heat Age Test MethodIEC 60794-1 F9
Low High Bend-20 °C to +70 °C (-4 °F to +158 °F)
Low High Bend Test MethodFOTP-37 / IEC 60794-1 E11
Temperature Cycle-20 °C to +70 °C (-4 °F to +158 °F)
Temperature Cycle Test MethodFOTP-3 / IEC 60794-1 F1



https://www.alldataresource.com/assets/images_commscope/packaging_weights.jpg

Packaging and Weights

Cable weight50.4 kg/km / 33.867 lb/kft



https://www.alldataresource.com/assets/images_commscope/regulatorycompliance.jpg

Regulatory Compliance/Certifications

ISO 9001:2015Designed, manufactured and/or distributed under this quality management system
ROHSCompliant
CHINA-ROHSBelow maximum concentration value
REACH-SVHCCompliant as per SVHC revision on www.commscope.com/ProductCompliance



https://www.alldataresource.com/assets/images_commscope/pdf.jpg

Documents and Downloads

Revit BIM ModelsClick to View
Statement of Compliance RoHS/REACHClick to View
760018564 Product specificationsClick to View
Customer and Technical Support, Training, Software/Firmware, Repair ServicesClick to View
CommScope Extended System WarrantyClick to View
CommScope Limited Product WarrantyClick to View
